Speed Sensor: Diagrams



Transfer Case Control Connector End Views

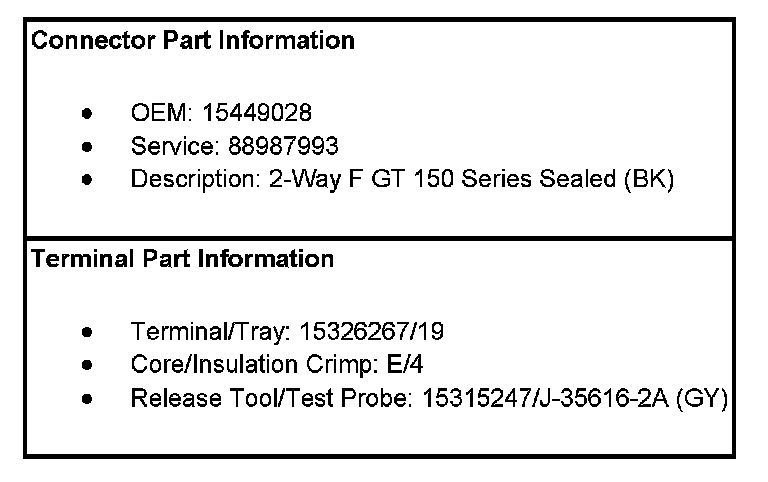

Propshaft Speed Sensor - Front







Propshaft Speed Sensor - Front:

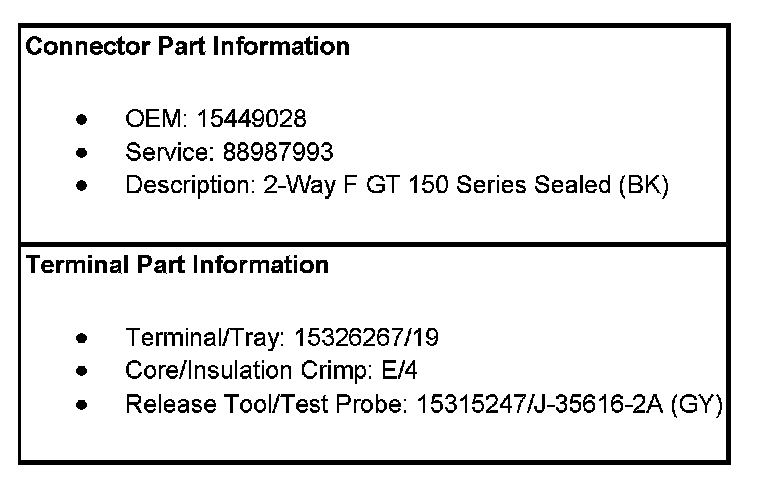

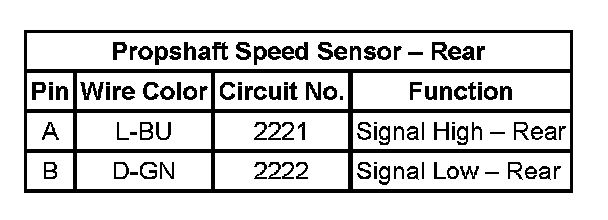

Propshaft Speed Sensor - Rear







Propshaft Speed Sensor - Rear:
