Connector Views
>>
Automatic Volume Control
Automatic Volume Control
Rear Seat Audio (RSA) Controller C1 (With RPO Code UK6):

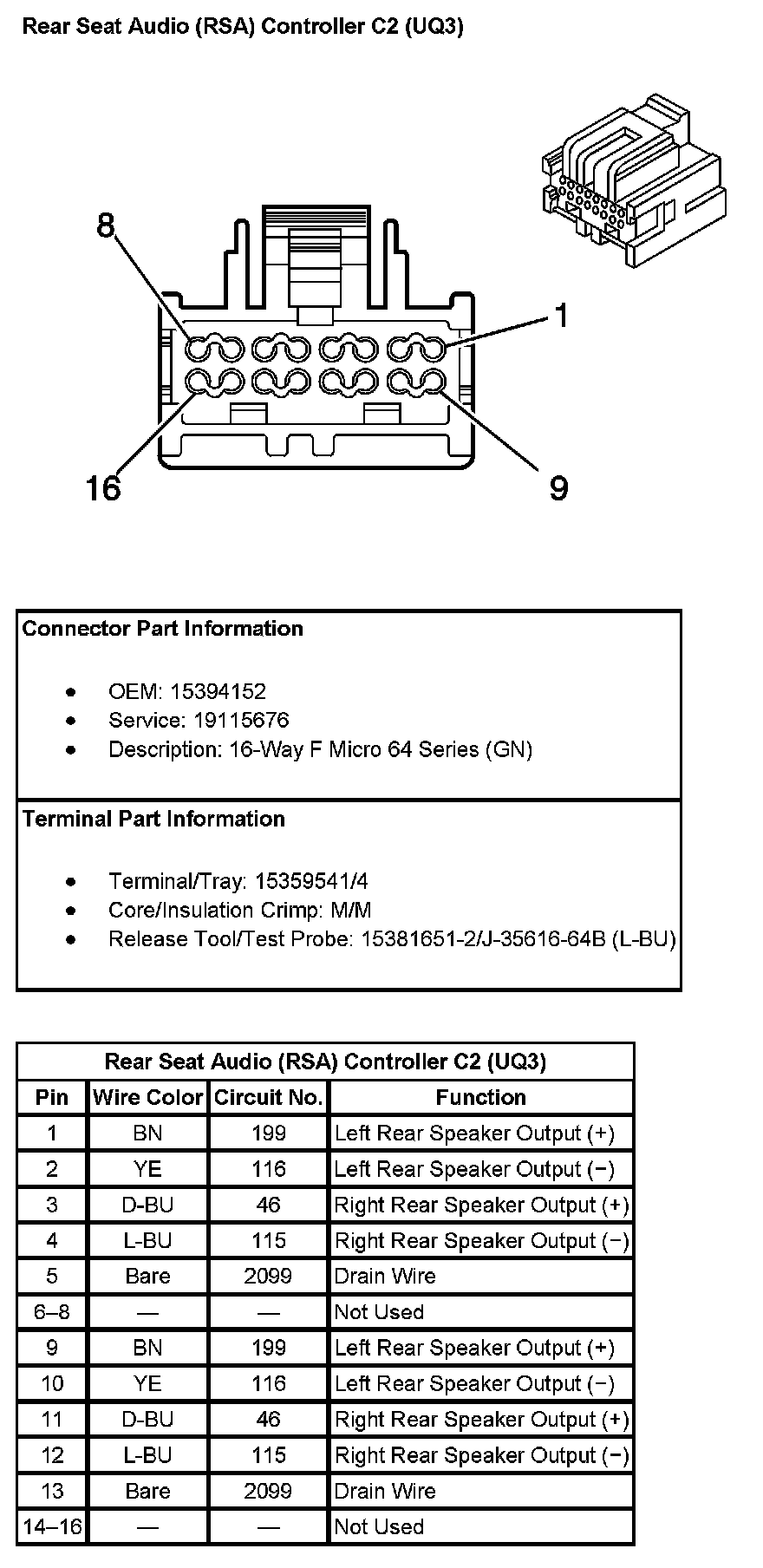

Rear Seat Audio (RSA) Controller C2 (With RPO Code UQ3):
Rear Seat Audio (RSA) Controller C2 (With RPO Code UQA/UQS):
