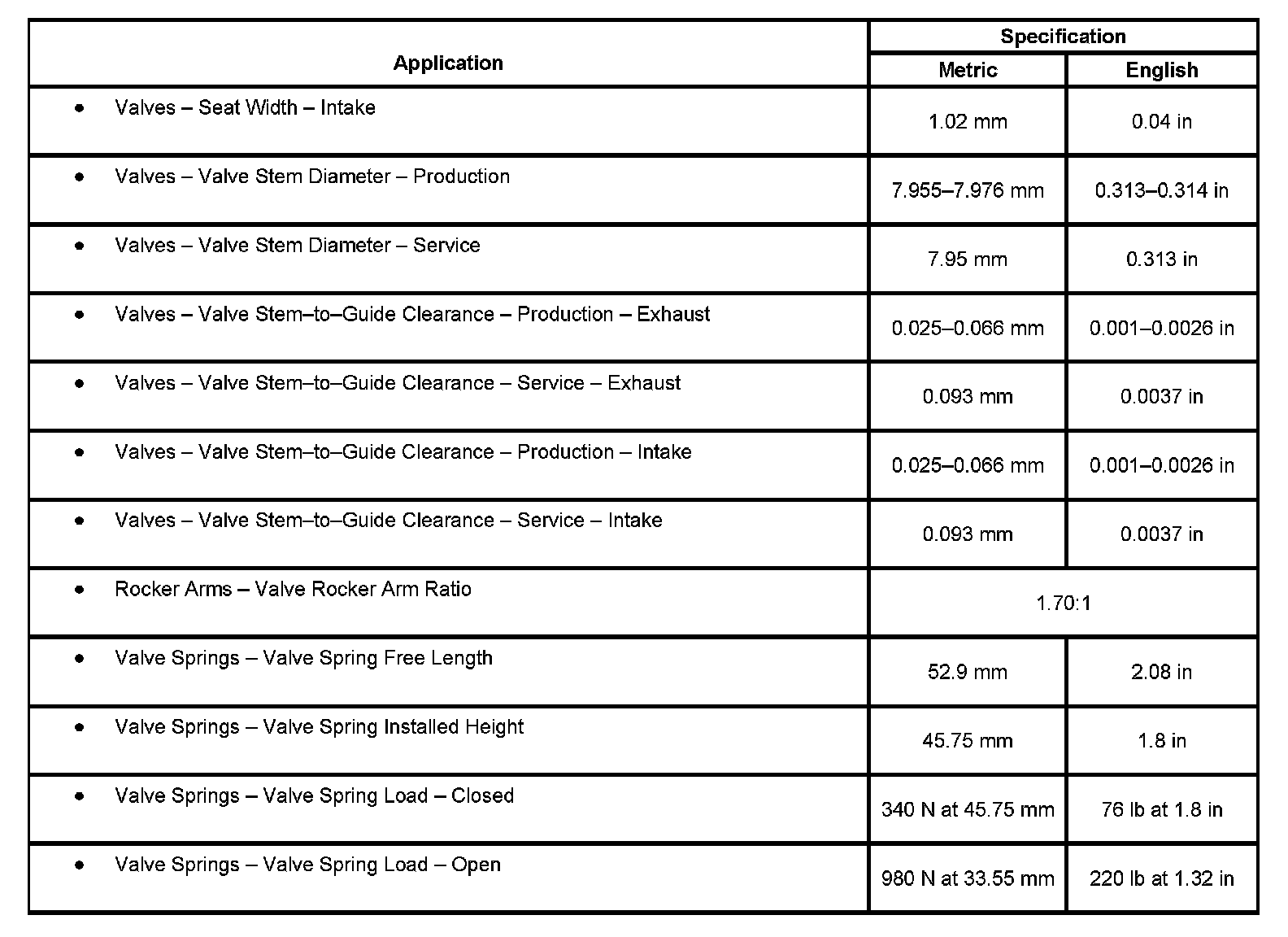

Engine Mechanical Specifications (RPO LMG VIN 0)



Engine Mechanical Specifications (RPO LMG VIN 0)

Engine Mechanical Specifications (RPO LMG VIN 0):




Engine Mechanical Specifications (RPO LMG VIN 0):




Engine Mechanical Specifications (RPO LMG VIN 0):




Engine Mechanical Specifications (RPO LMG VIN 0):




Engine Mechanical Specifications (RPO LMG VIN 0):




Engine Mechanical Specifications (RPO LMG VIN 0):
