Turn Signal Lamp

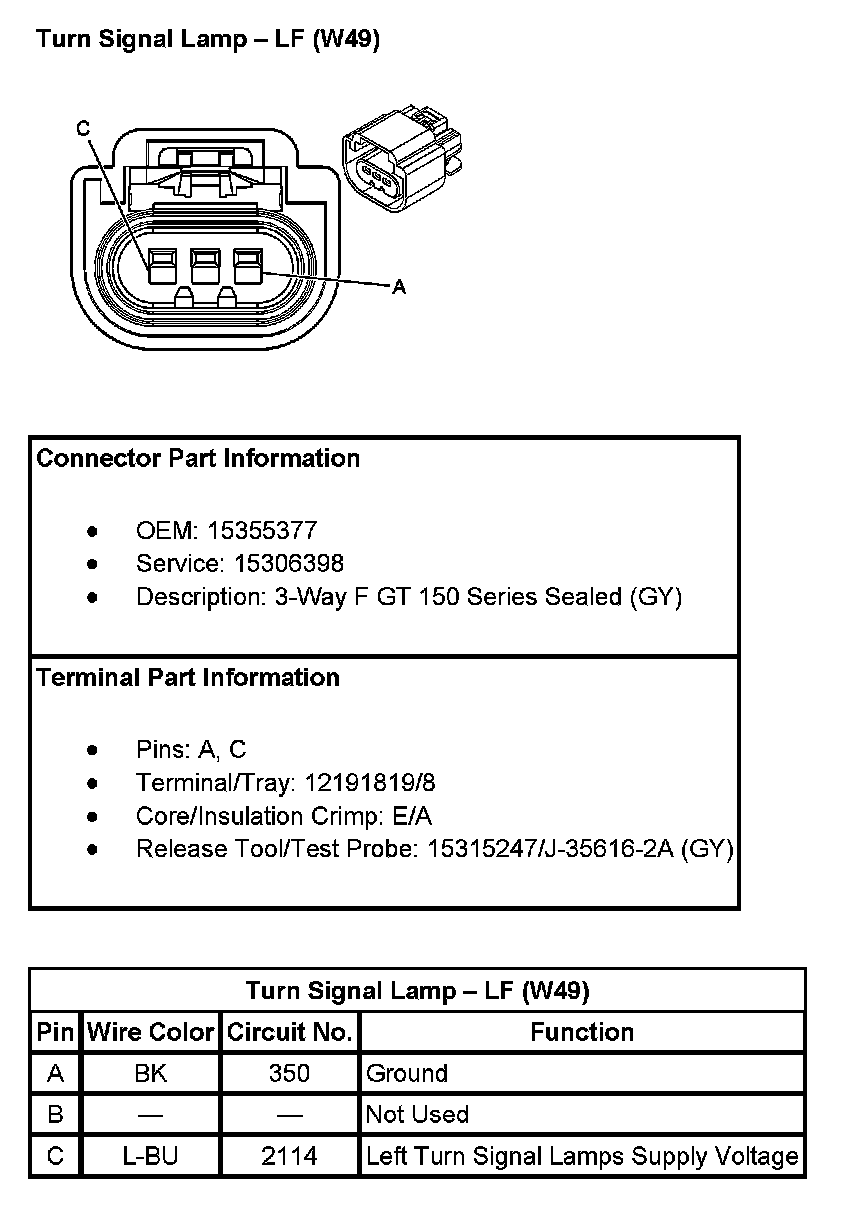

Turn Signal Lamp - LF (with RPO Code W49):

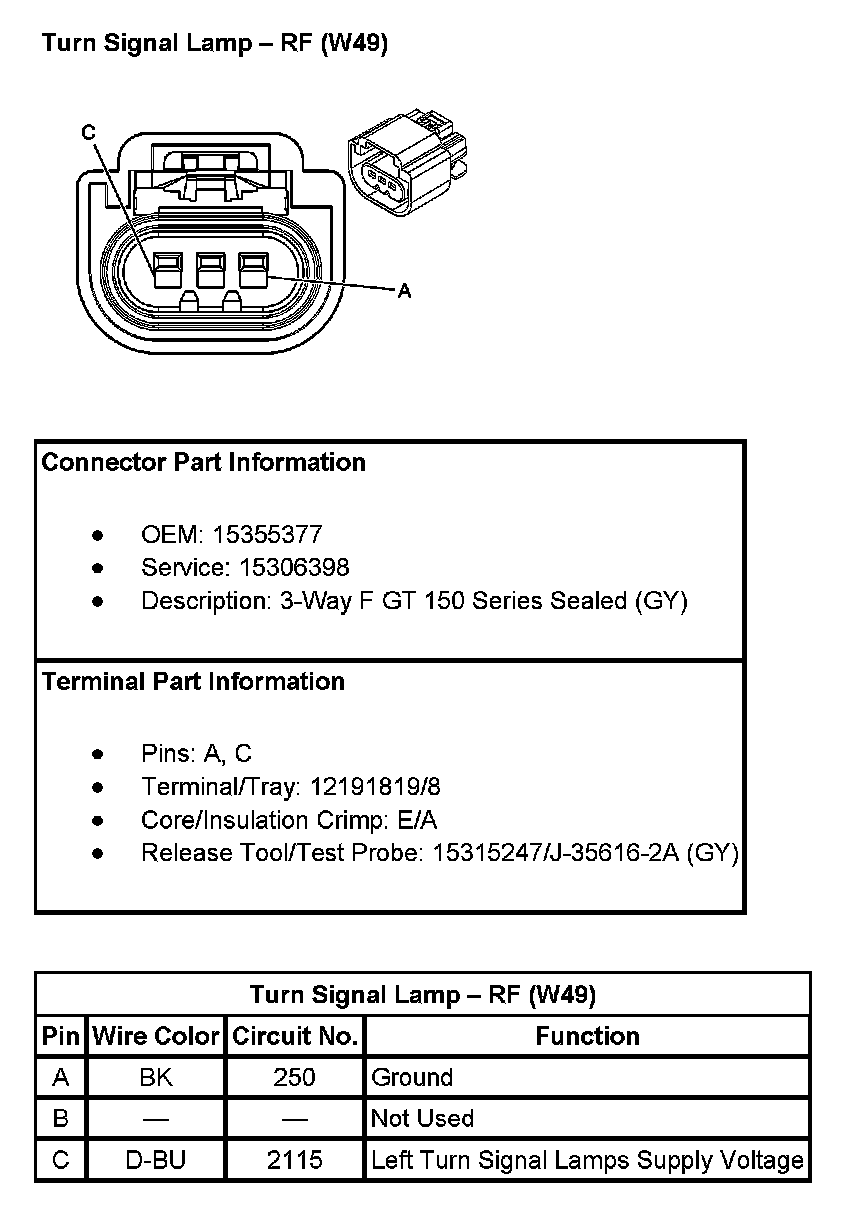

Turn Signal Lamp - RF (with RPO Code W49):
