System Diagram
Engine Controls Schematics

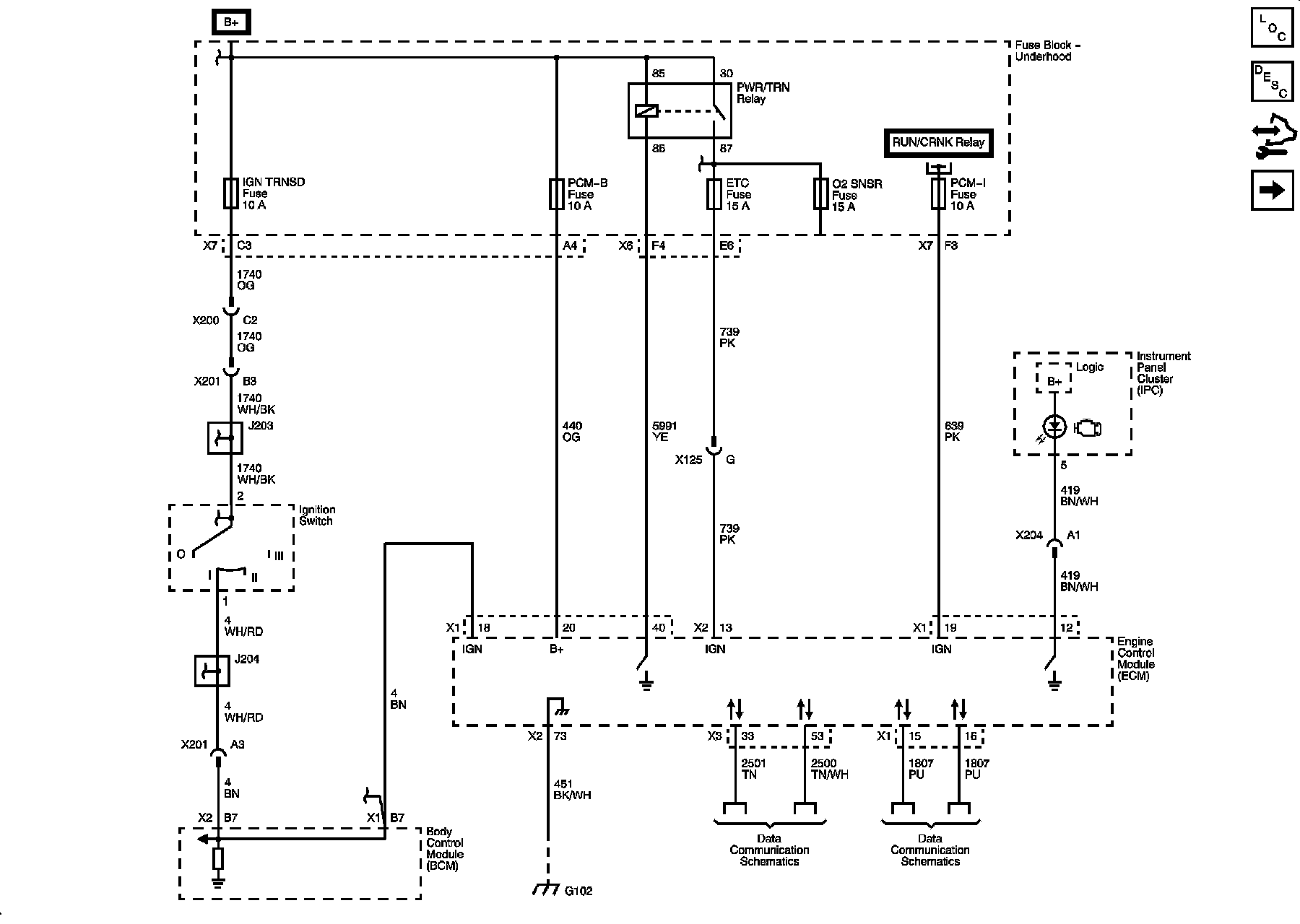

Module Power, Ground, Serial Data, and MIL
Diagram 1:

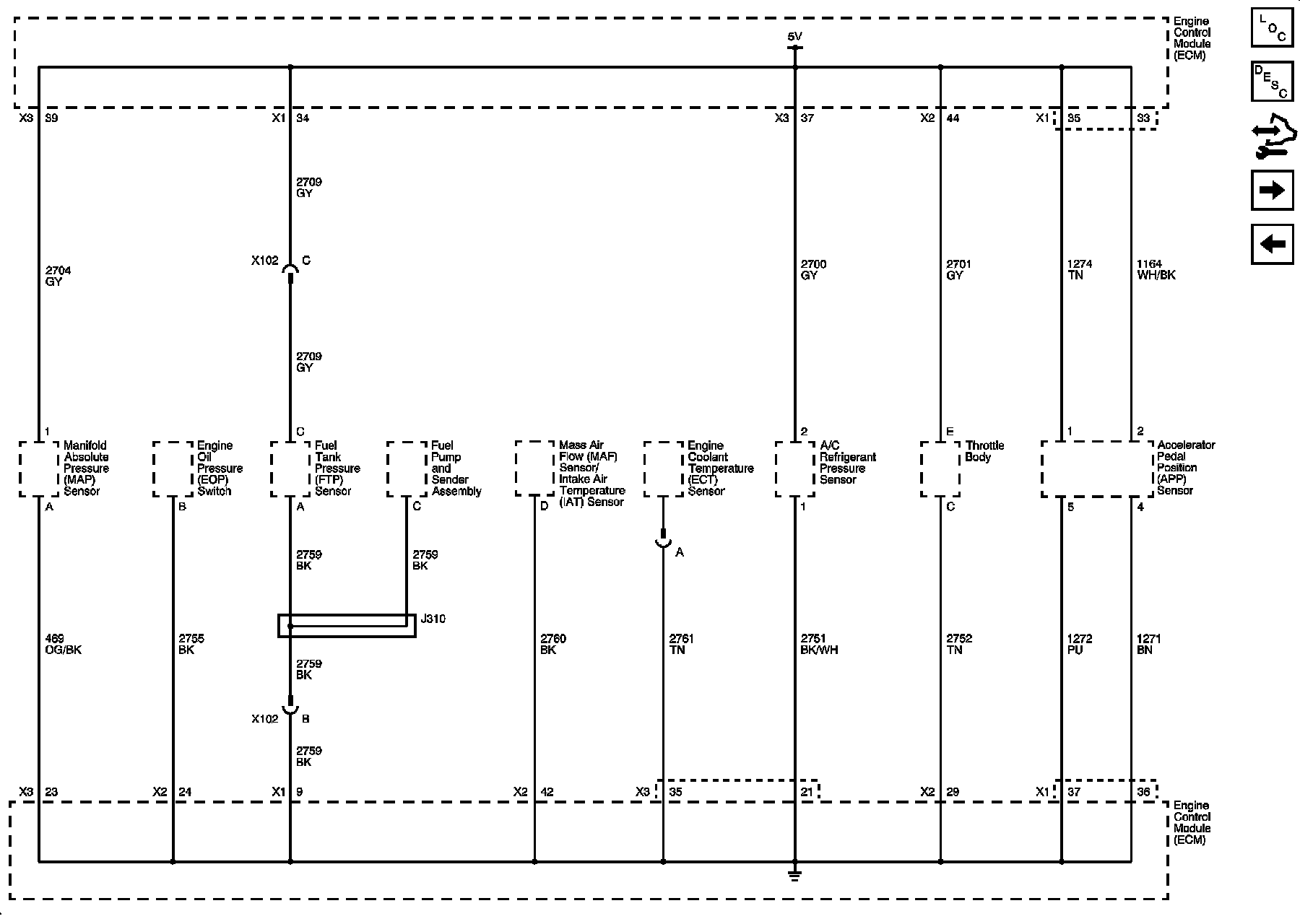

Engine Data Sensors - 5-Volt and Low Reference
Diagram 2:

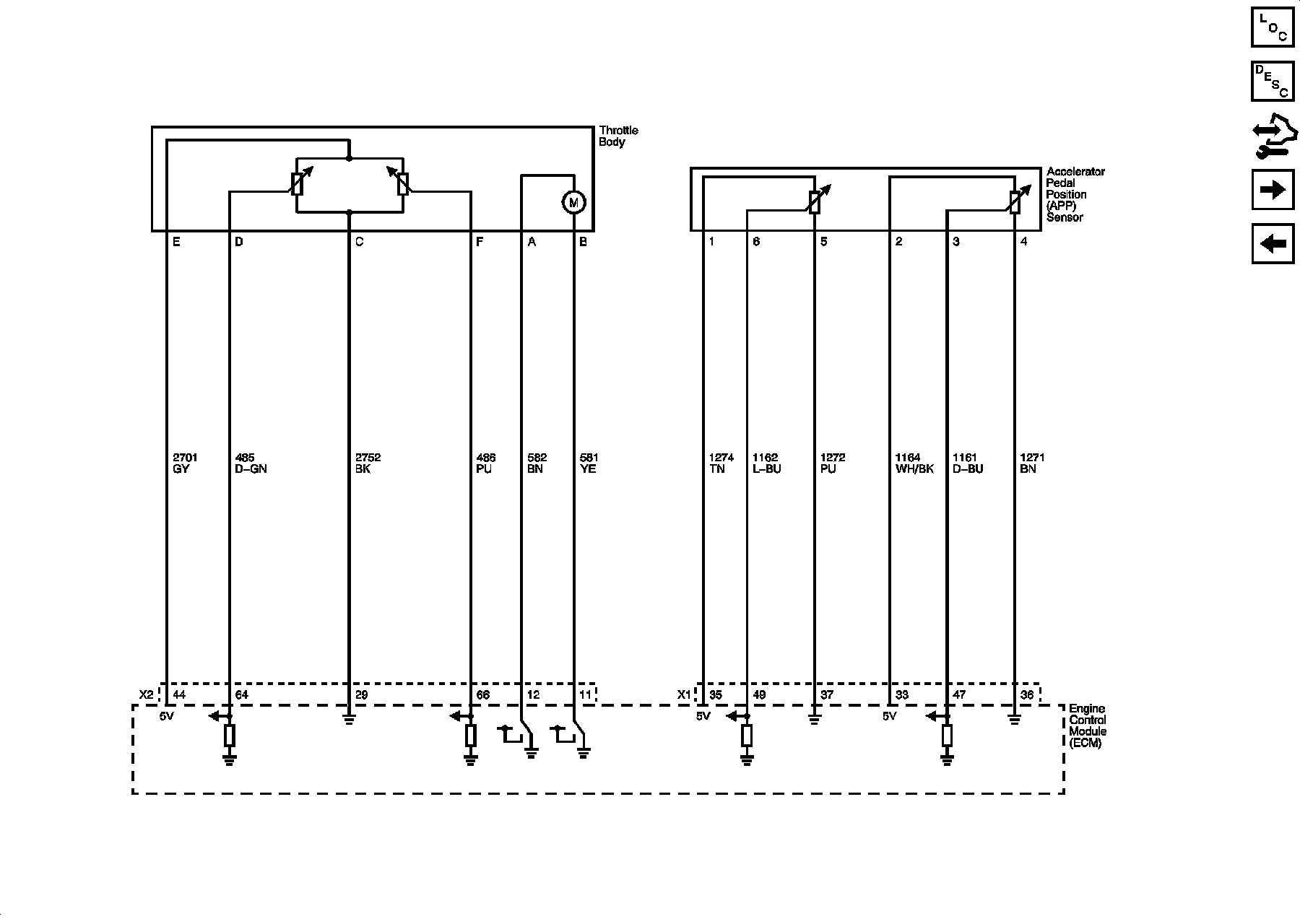

Engine Data Sensors - Pressure, Temperature, and Throttle Controls
Diagram 3:

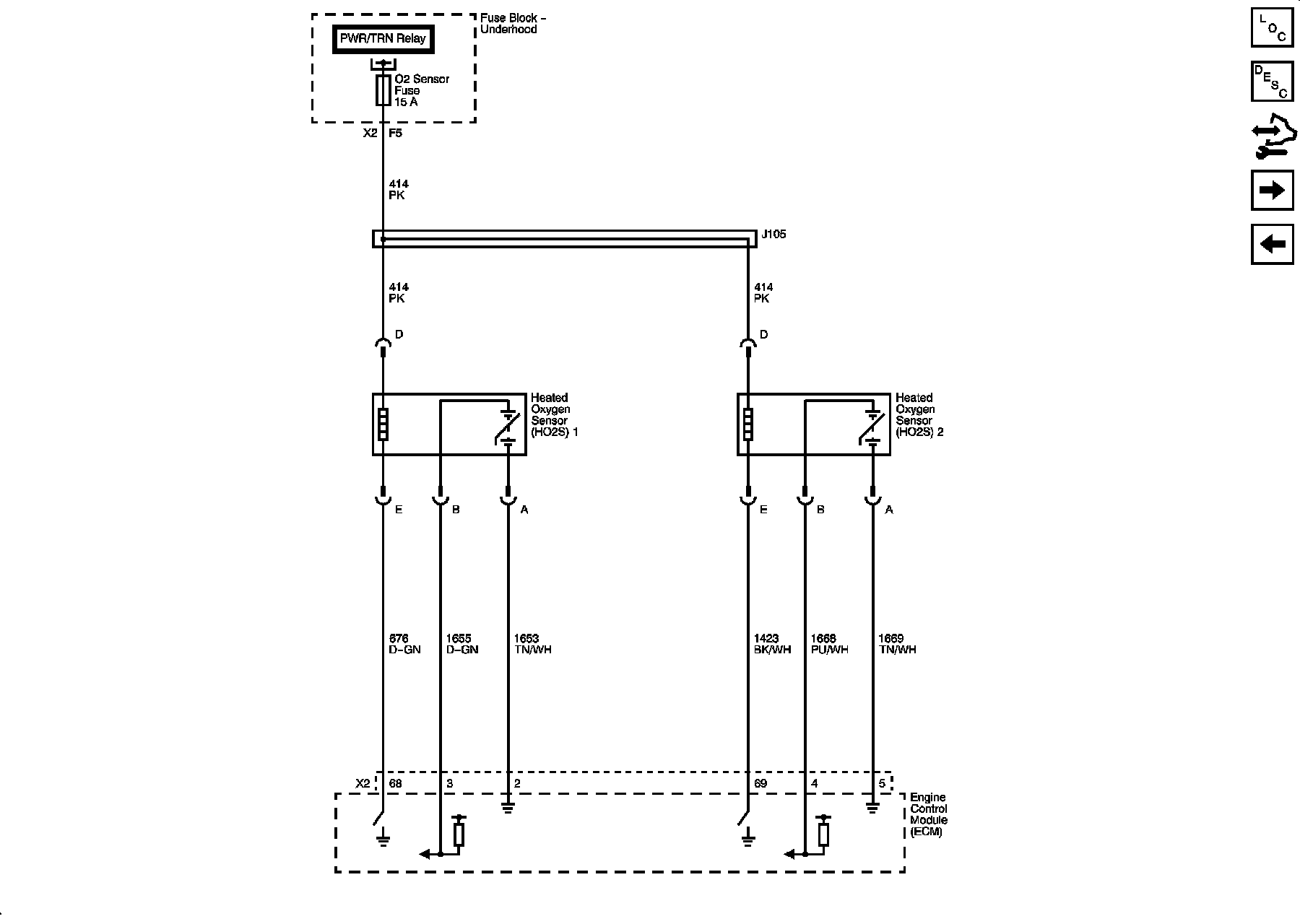

Engine Data Sensors - Heated Oxygen Sensors
Diagram 4:

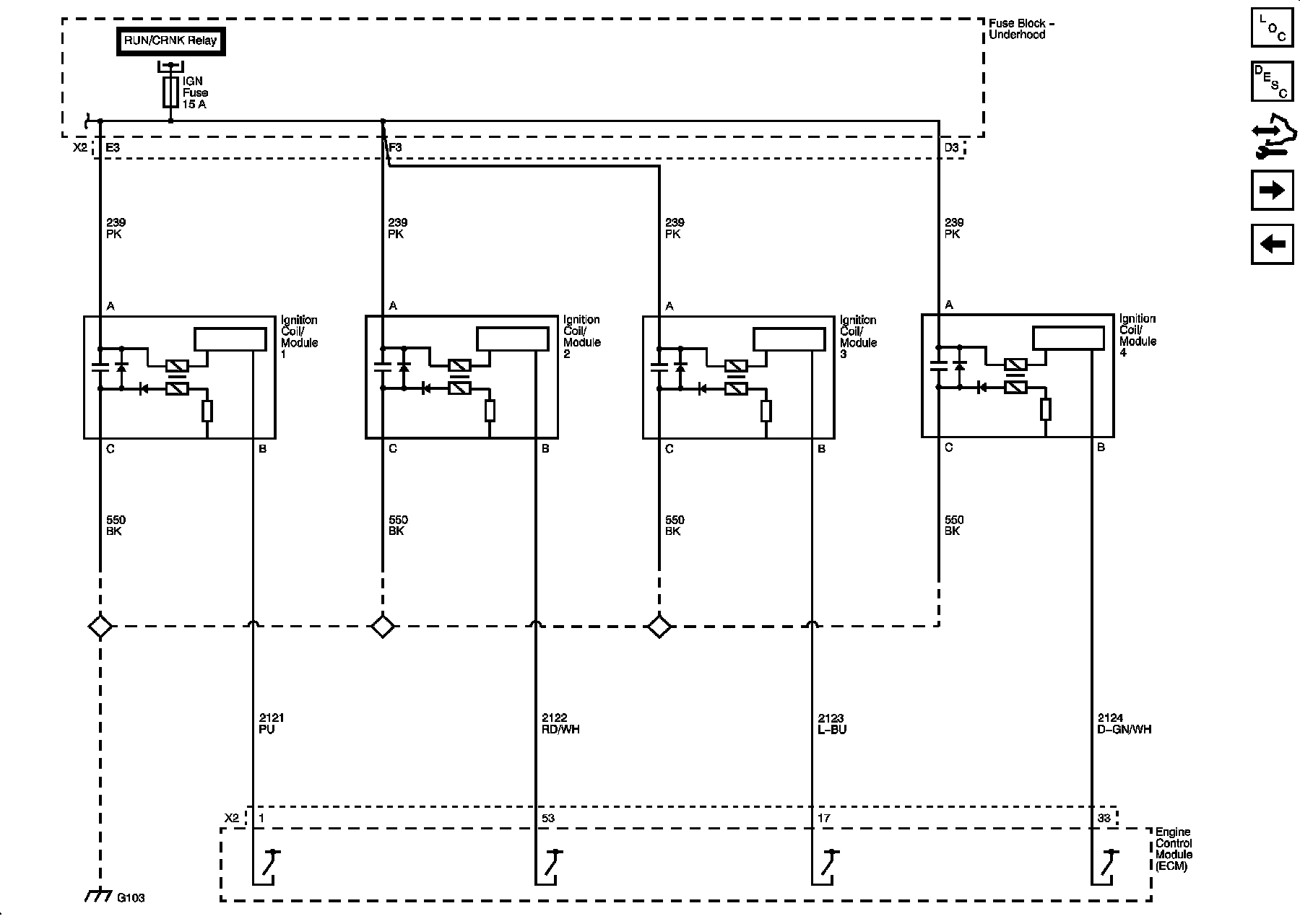

Ignition Controls - Ignition System Coils
Diagram 5:

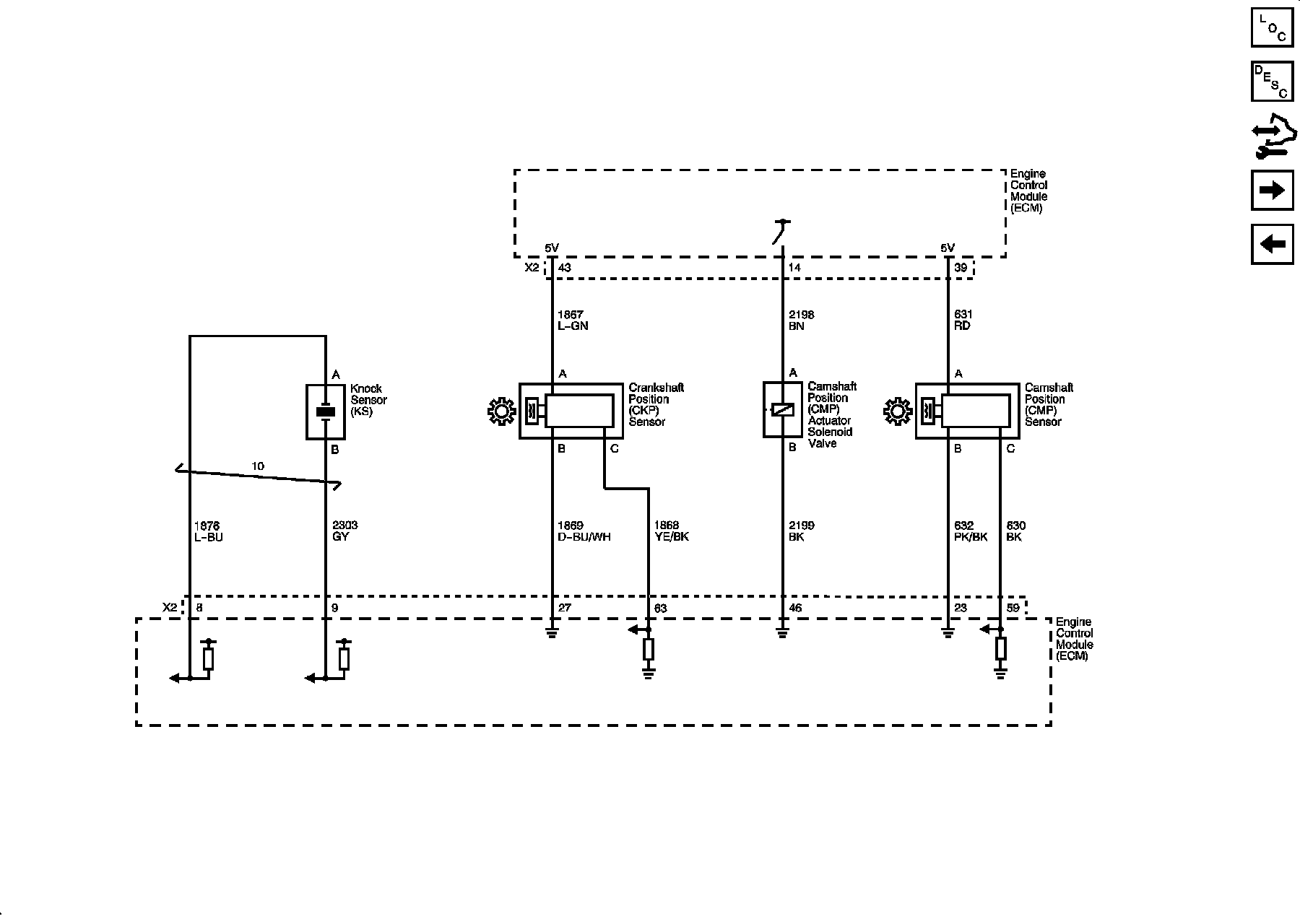

Ignition Controls - Sensors
Diagram 6:
Fuel Controls - Fuel Pump Controls
Diagram 7:

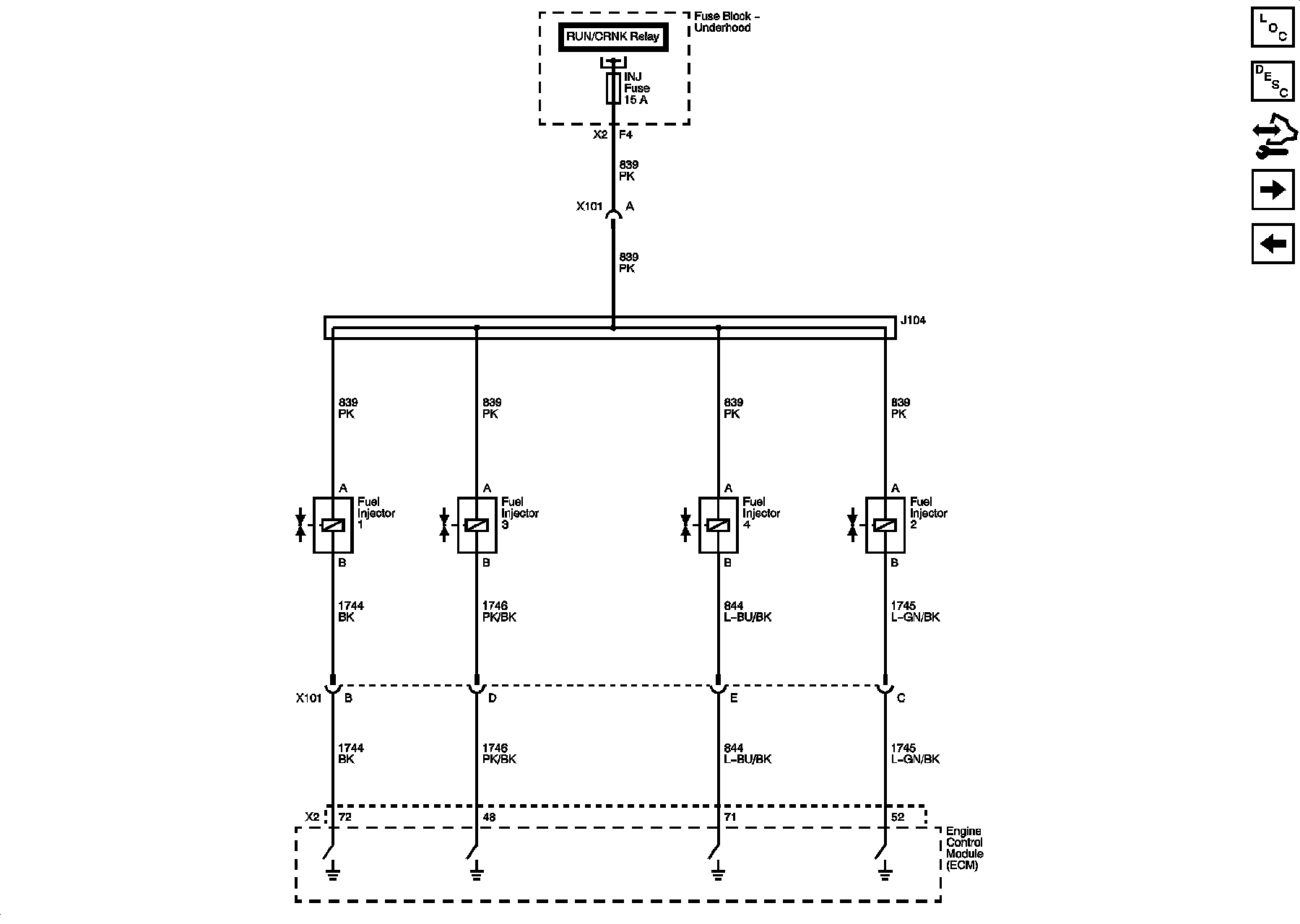

Fuel Controls - Fuel Injectors
Diagram 8:

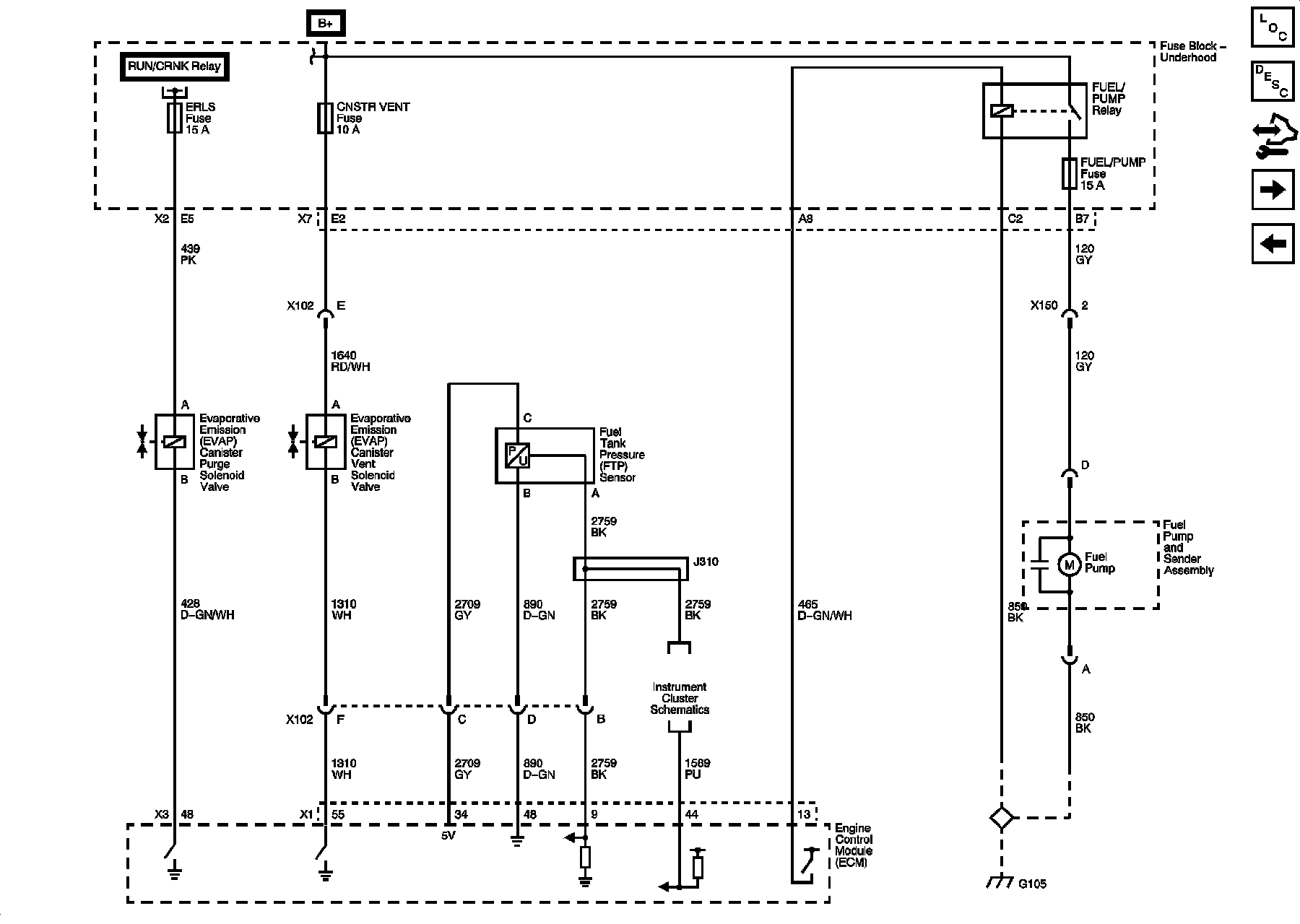

Fuel Controls - EVAP Controls
Diagram 9:

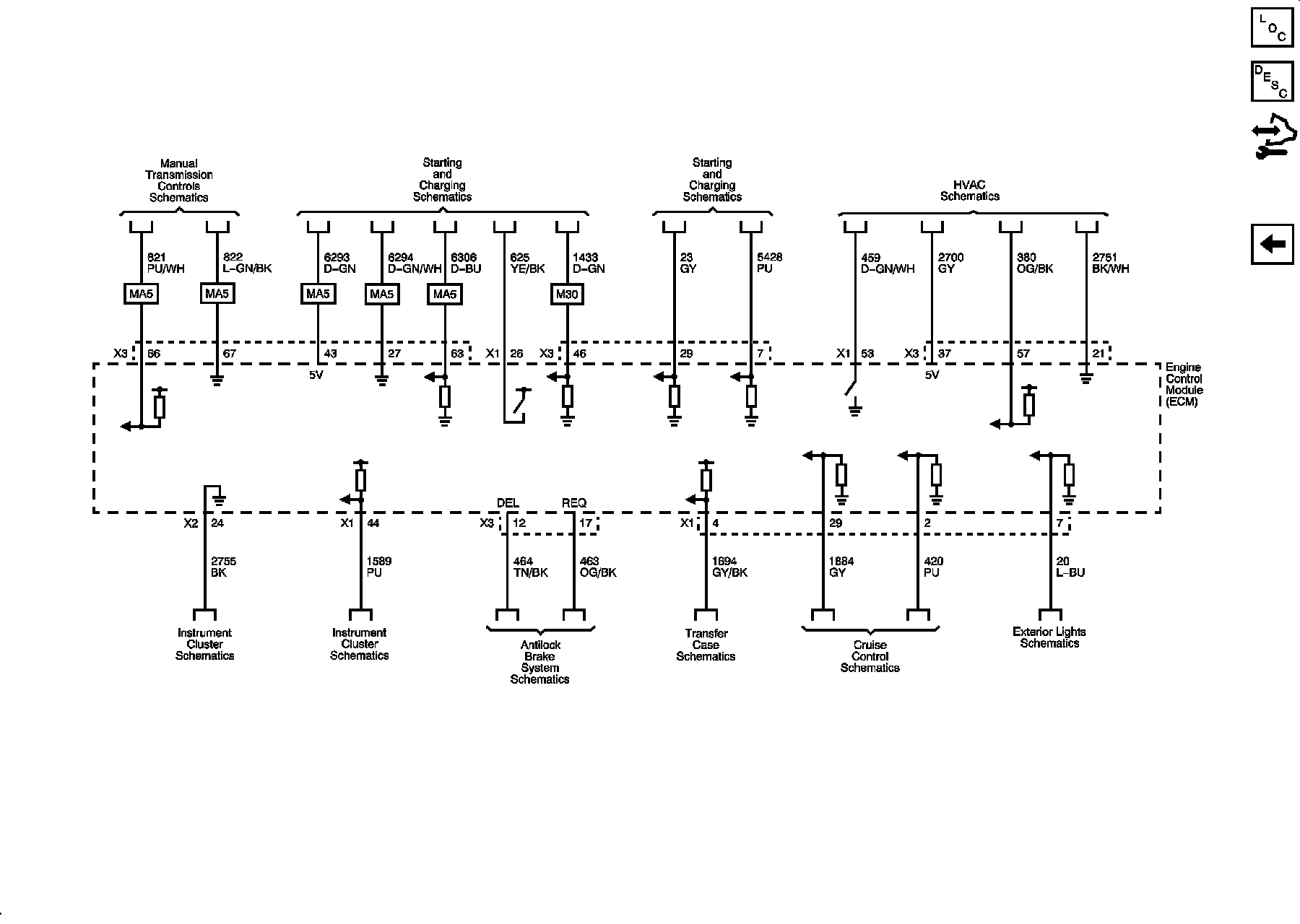

Controlled/Monitored Subsystem References
