Instrument Panel Center Air Outlet Replacement



Instrument Panel Center Air Outlet Replacement

Removal Procedure




1. Remove the instrument panel (I/P) accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement (Service and Repair) .

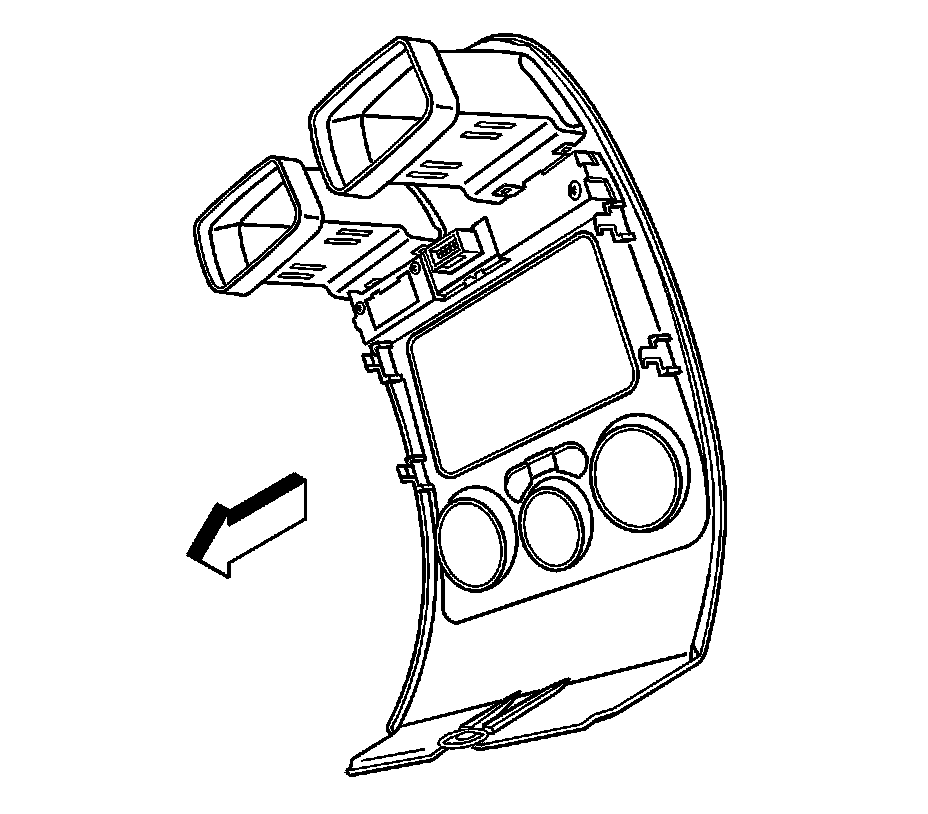

2. Remove the right air outlet assembly from the trim plate.
3. Remove the left air outlet assembly from the trim plate.

Installation Procedure




1. Install the left air outlet assembly to the trim plate.
2. Install the right air outlet assembly to the trim plate.
3. Install the accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement (Service and Repair) .
