Flex Plate: Service and Repair

Engine Flywheel Replacement

Removal Procedure





1. Remove the automatic transaxle. Refer to Transmission Replacement .
2. Remove the engine flywheel bolts and flywheel.
3. Clean the engine flywheel bolt threads and bolt holes.
4. Clean and inspect the engine flywheel.



Installation Procedure






Notice: Refer to Fastener Notice .

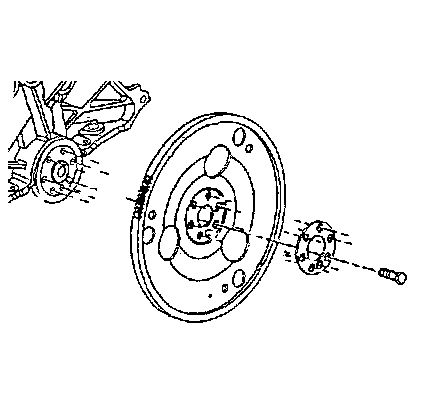

1. Install the engine flywheel and bolts

Tighten bolts to 71 N.m (52 lb ft).

2. Install the automatic transaxle. Refer to Transmission Replacement .
