Underhood Fuse Block

Electrical Center Identification Views

Fuse Block - Underhood Top View

Fuse Block - Underhood Bottom View

Fuse Block - Underhood X1 (LAT)

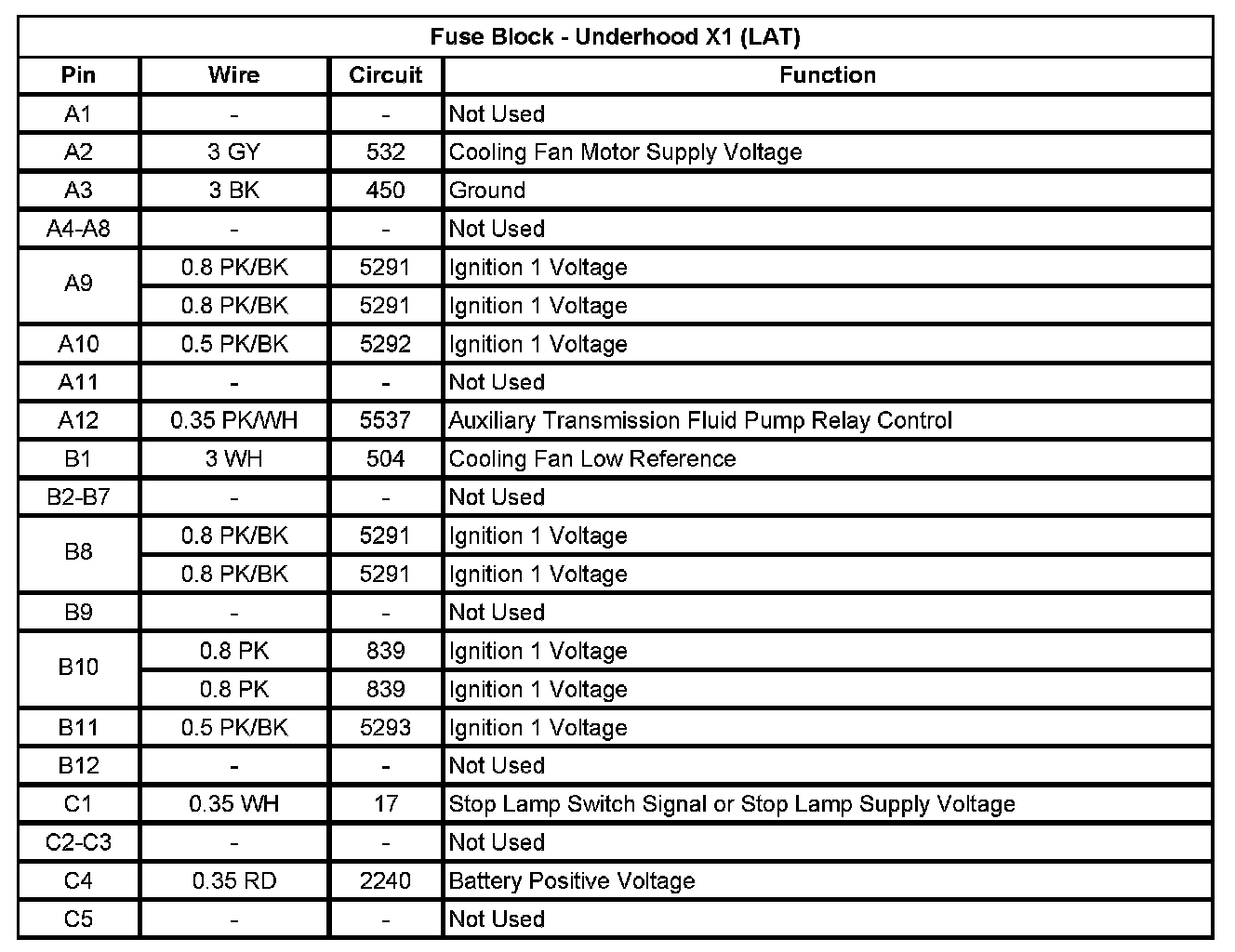

Fuse Block - Underhood X1 (LAT) (Pin A1 To C5):

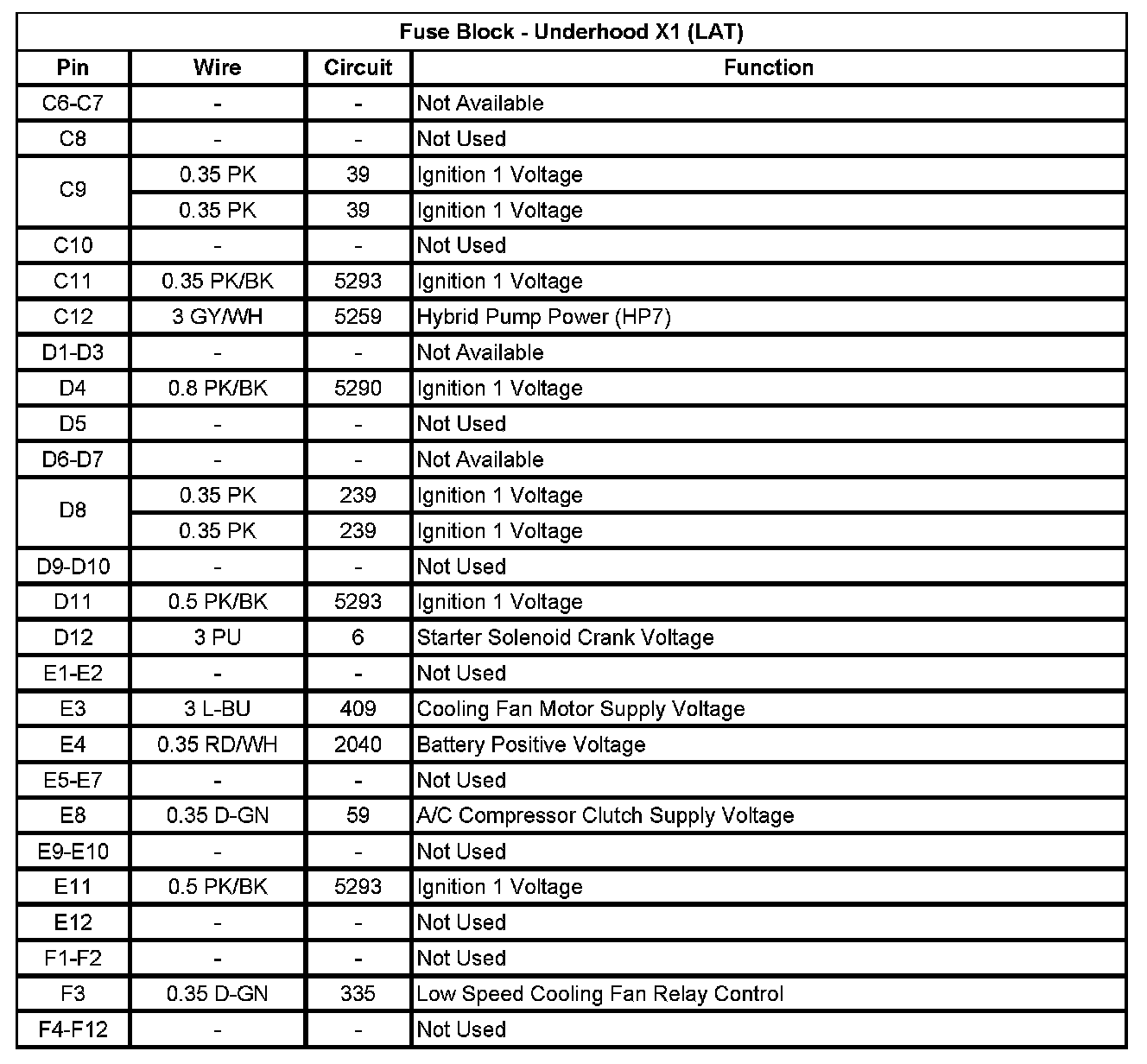

Fuse Block - Underhood X1 (LAT) (Pin C6 To F12):

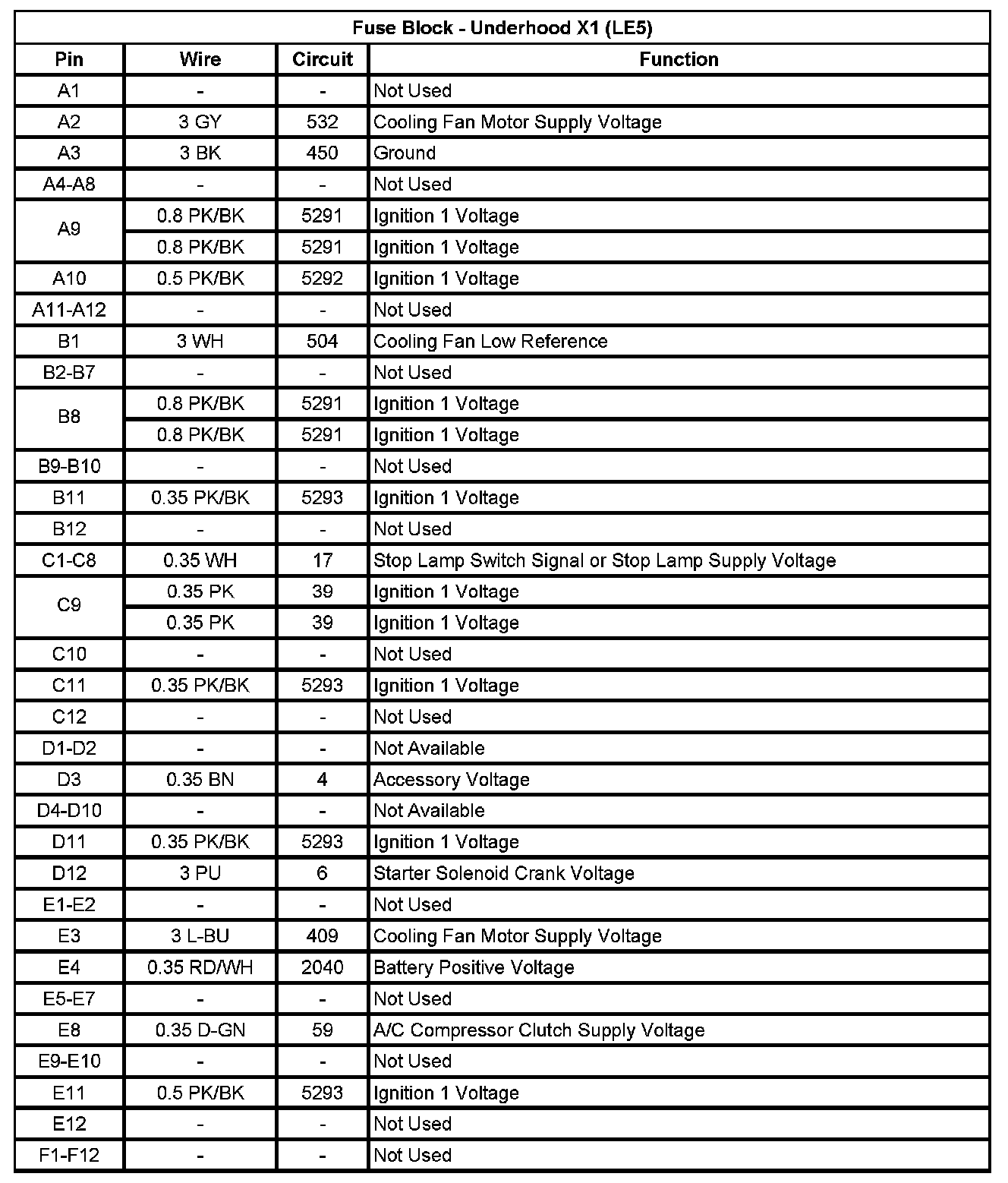

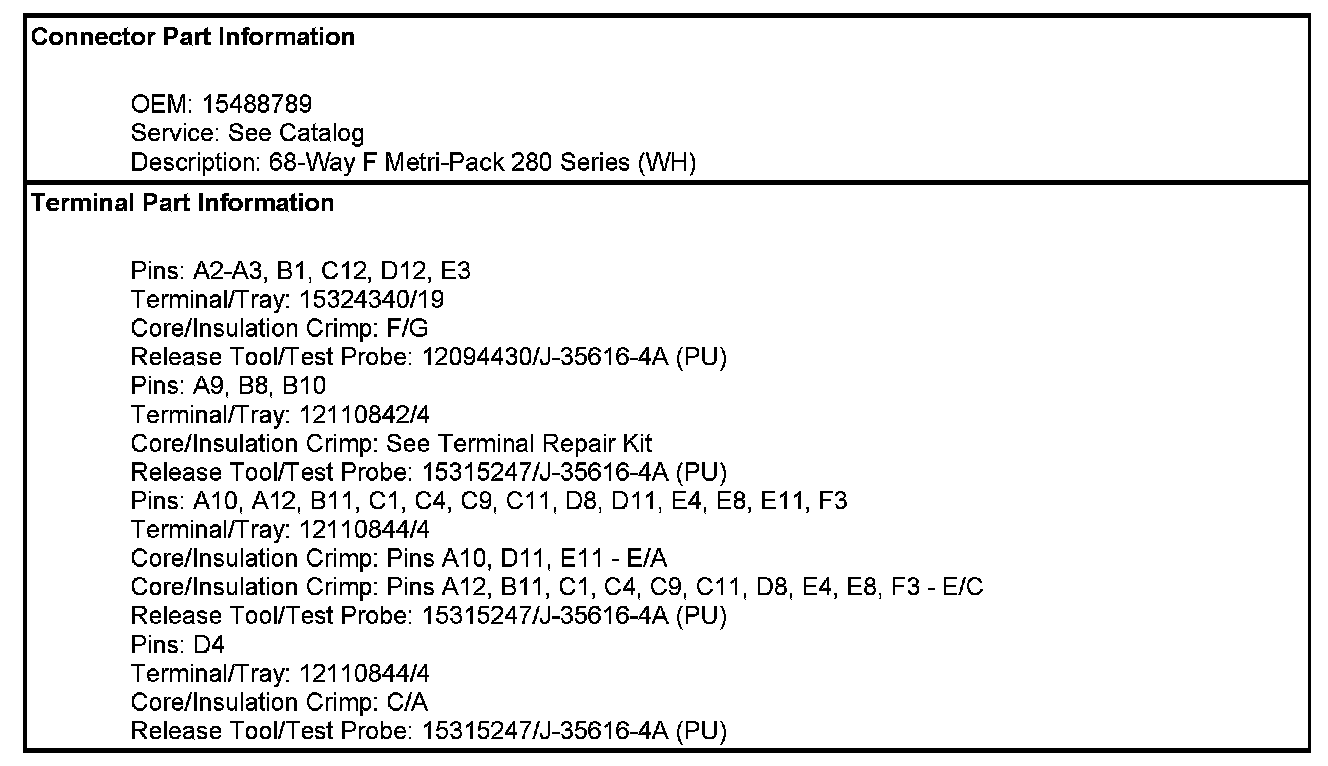

Fuse Block - Underhood X1 (LE5)

Fuse Block - Underhood X2 (HP7)

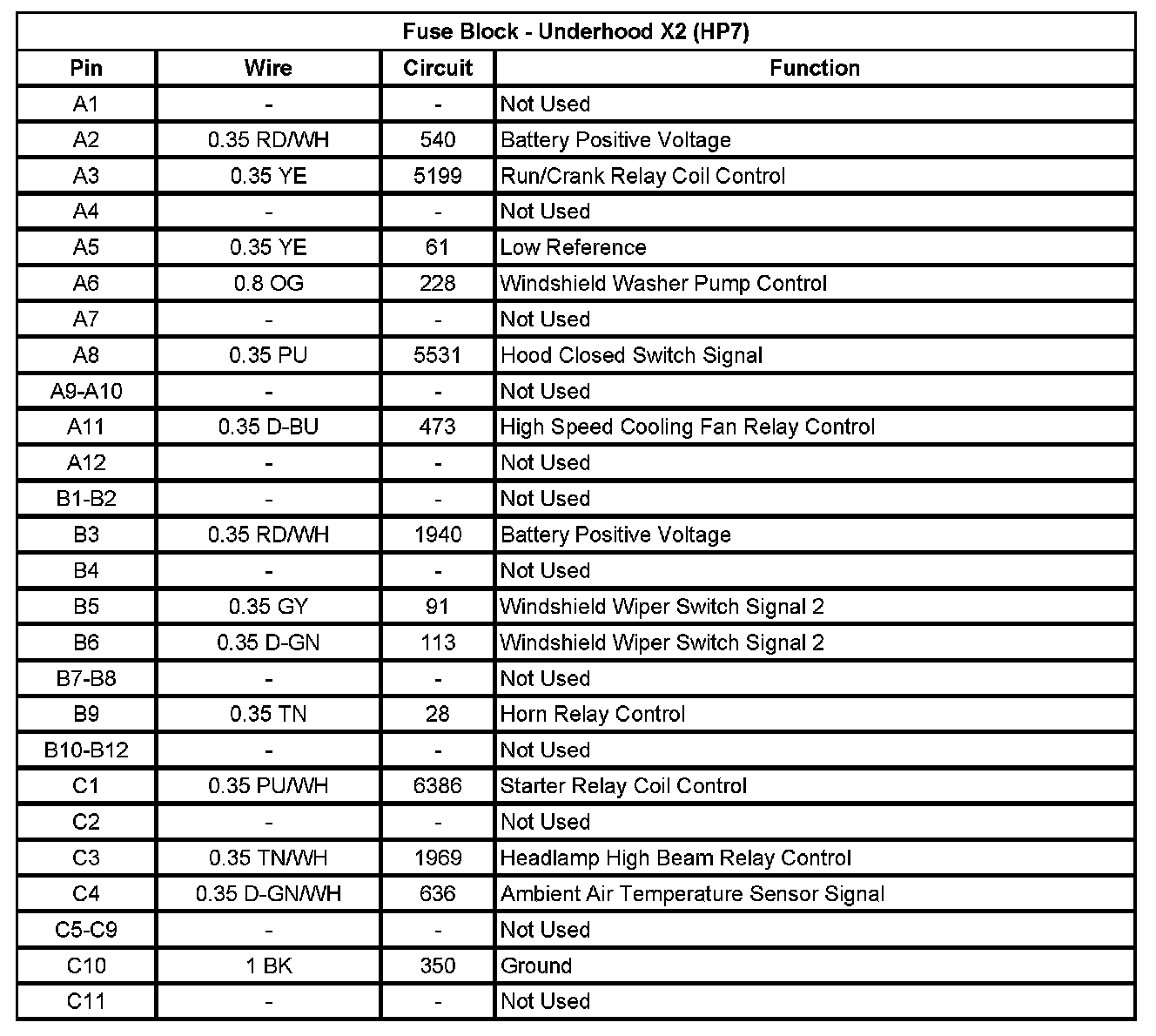

Fuse Block - Underhood X2 (HP7) (Pin A1 To C11):

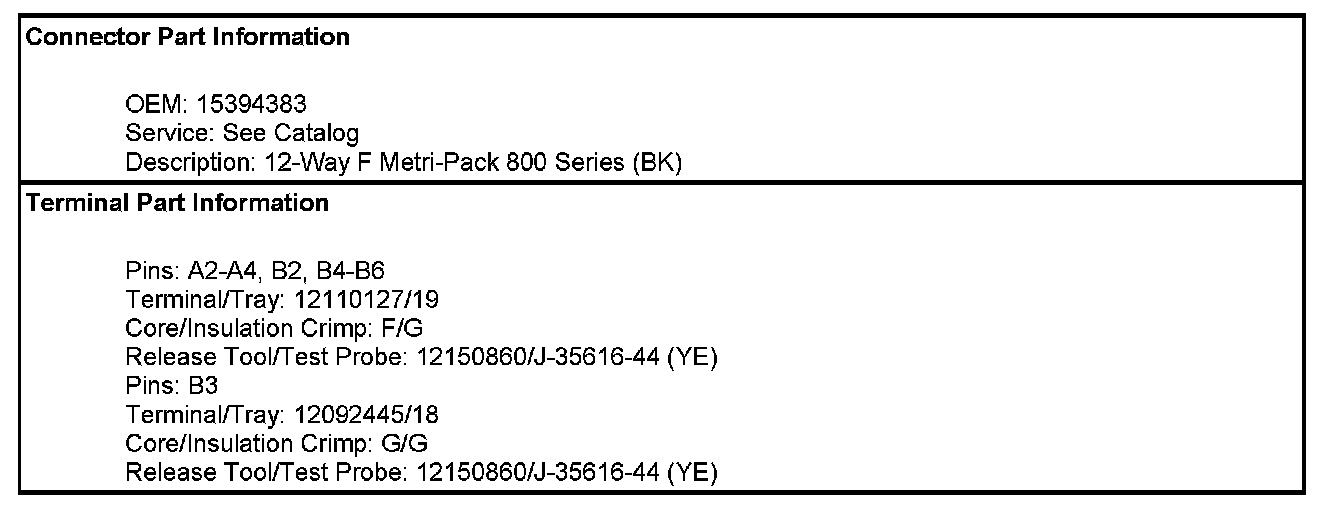

Fuse Block - Underhood X2 (HP7) (Pin C12 To F12):

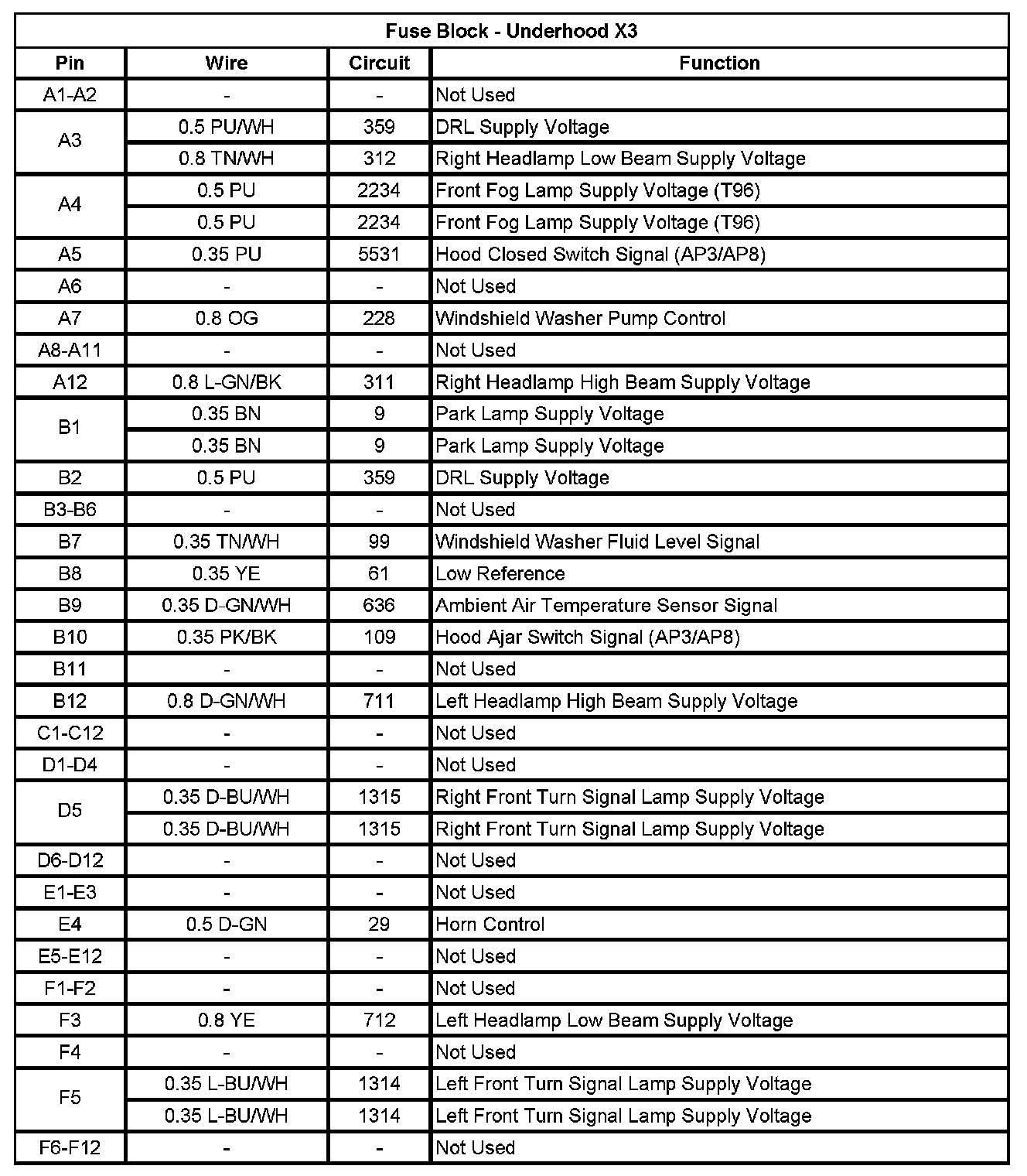

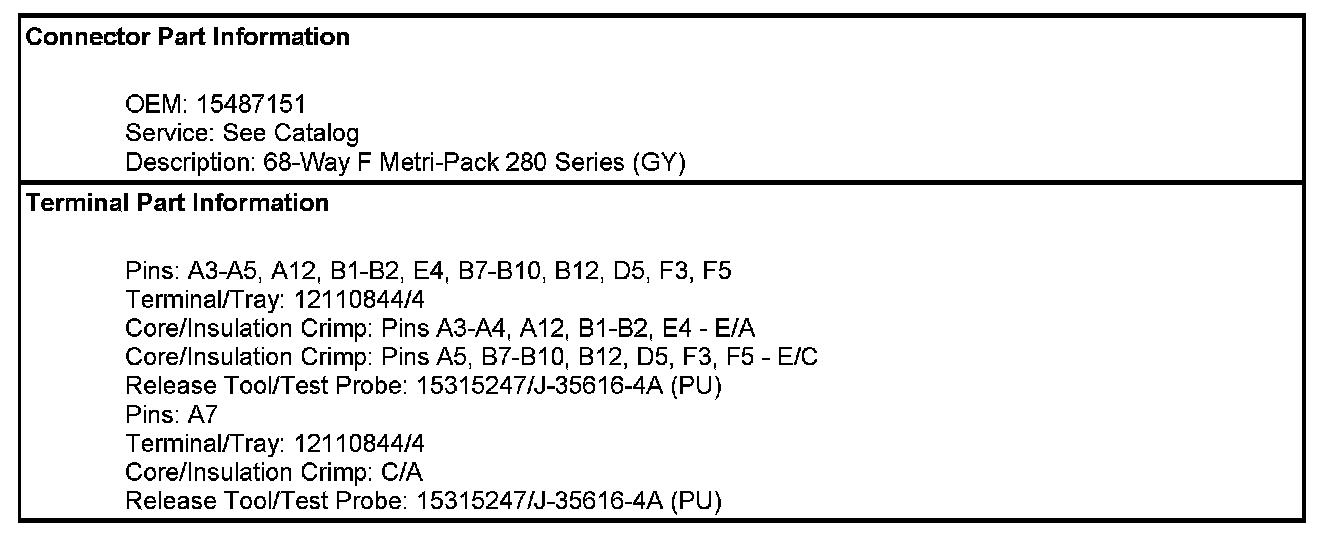

Fuse Block - Underhood X3

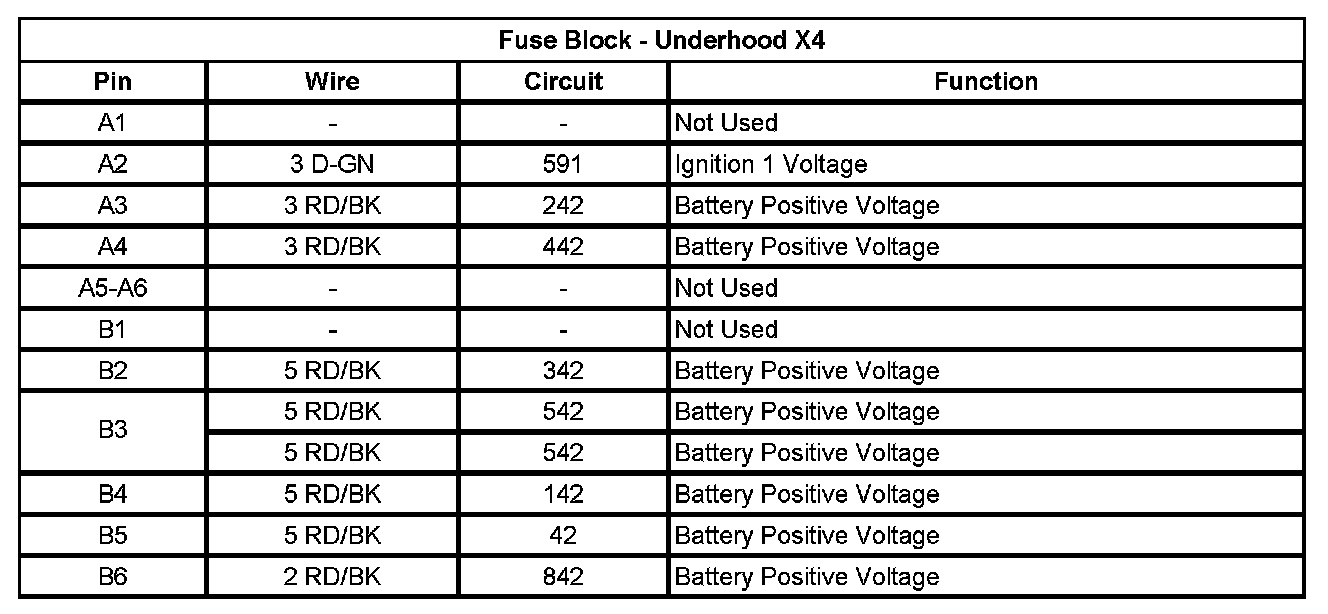

Fuse Block - Underhood X4
