Underhood Fuse Block

Electrical Center Identification Views

Fuse Block - Underhood Top View

Fuse Block - Underhood Bottom View

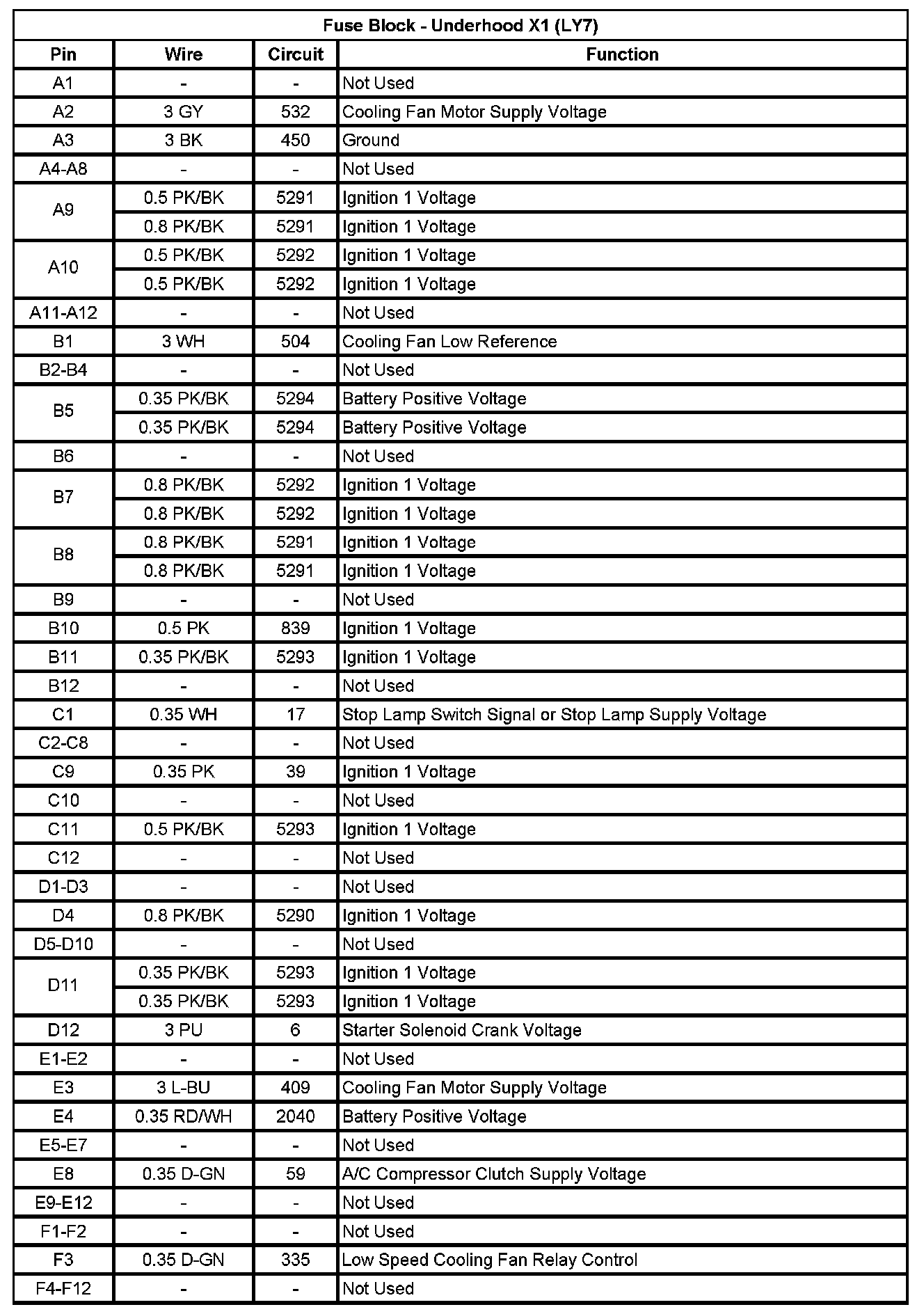

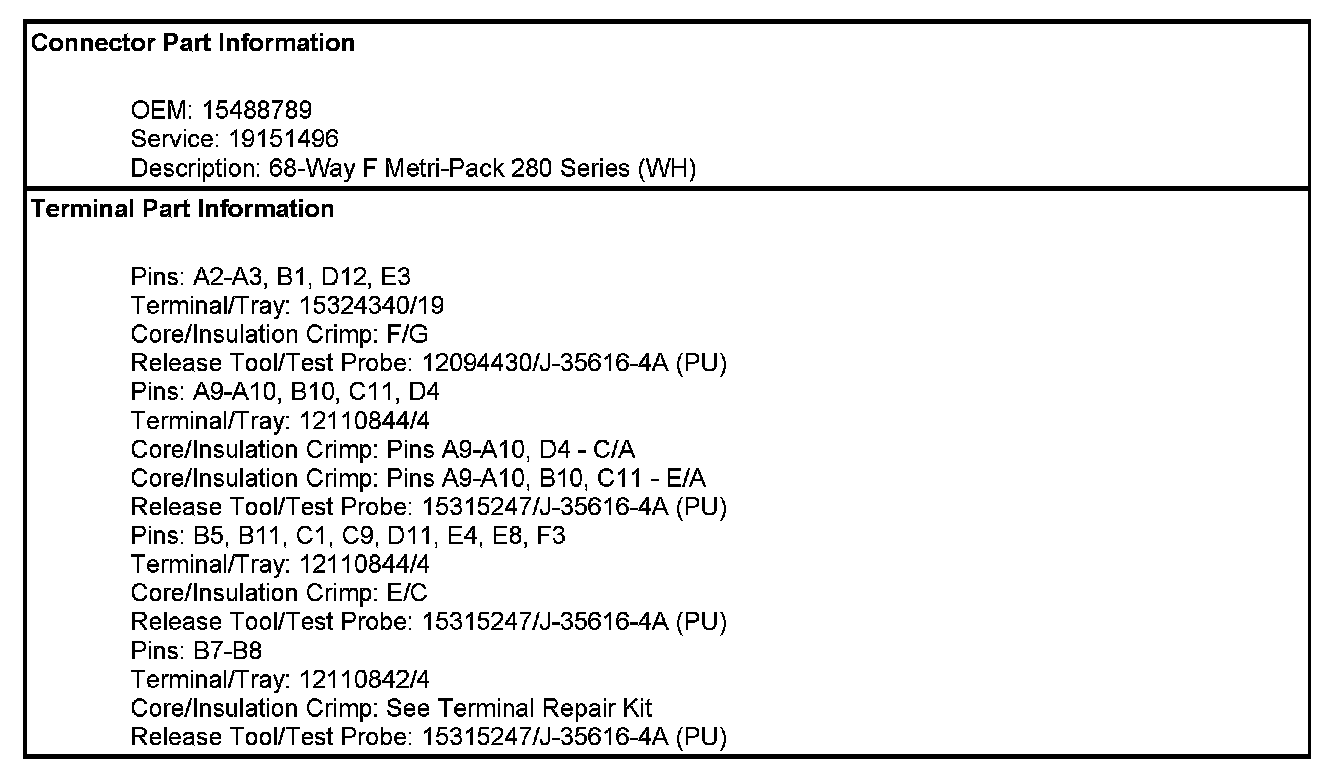

Fuse Block - Underhood X1 (LY7)

Fuse Block - Underhood X1 (LZ4)

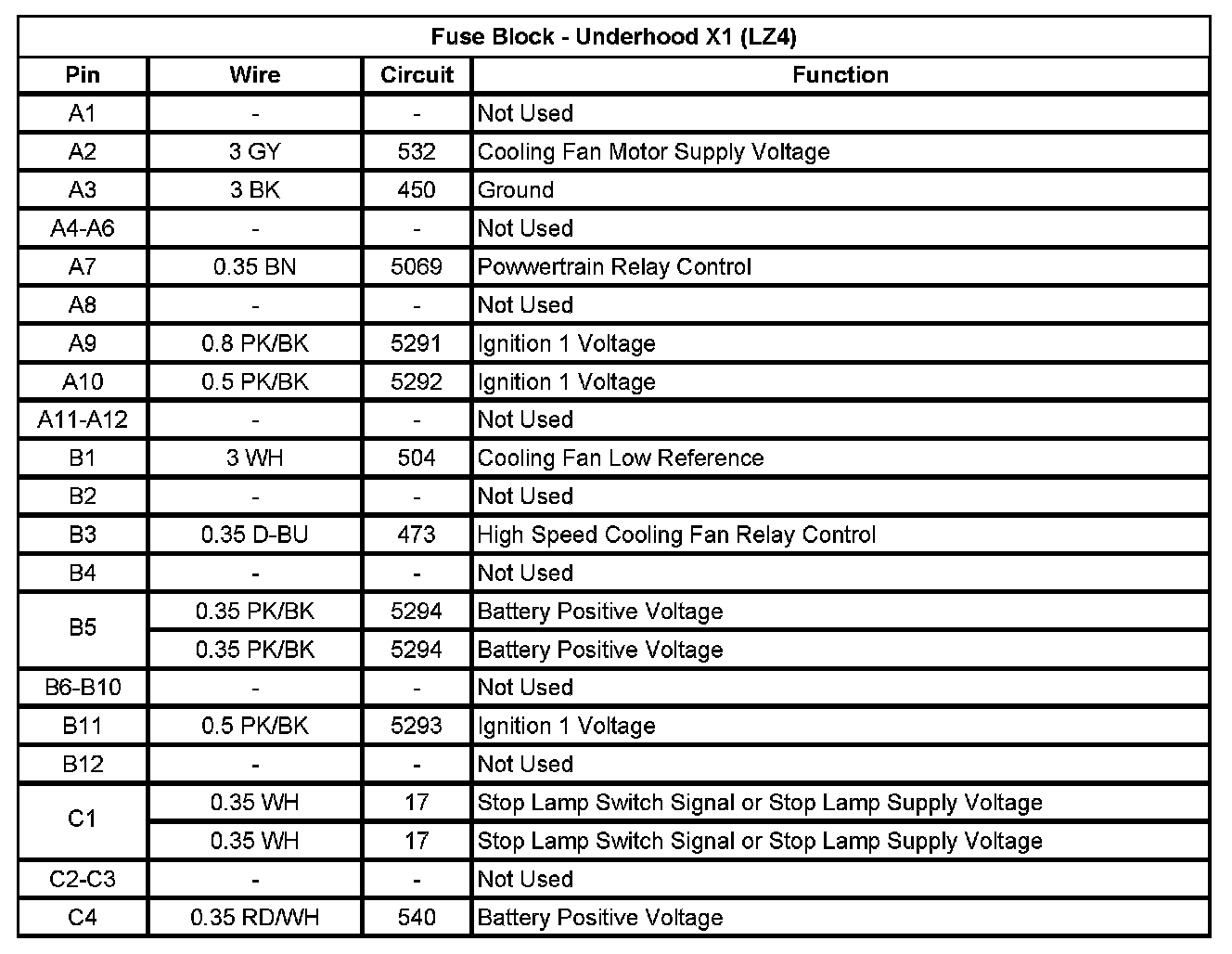

Fuse Block - Underhood X1 (LZ4) (Pin A1 To C4):

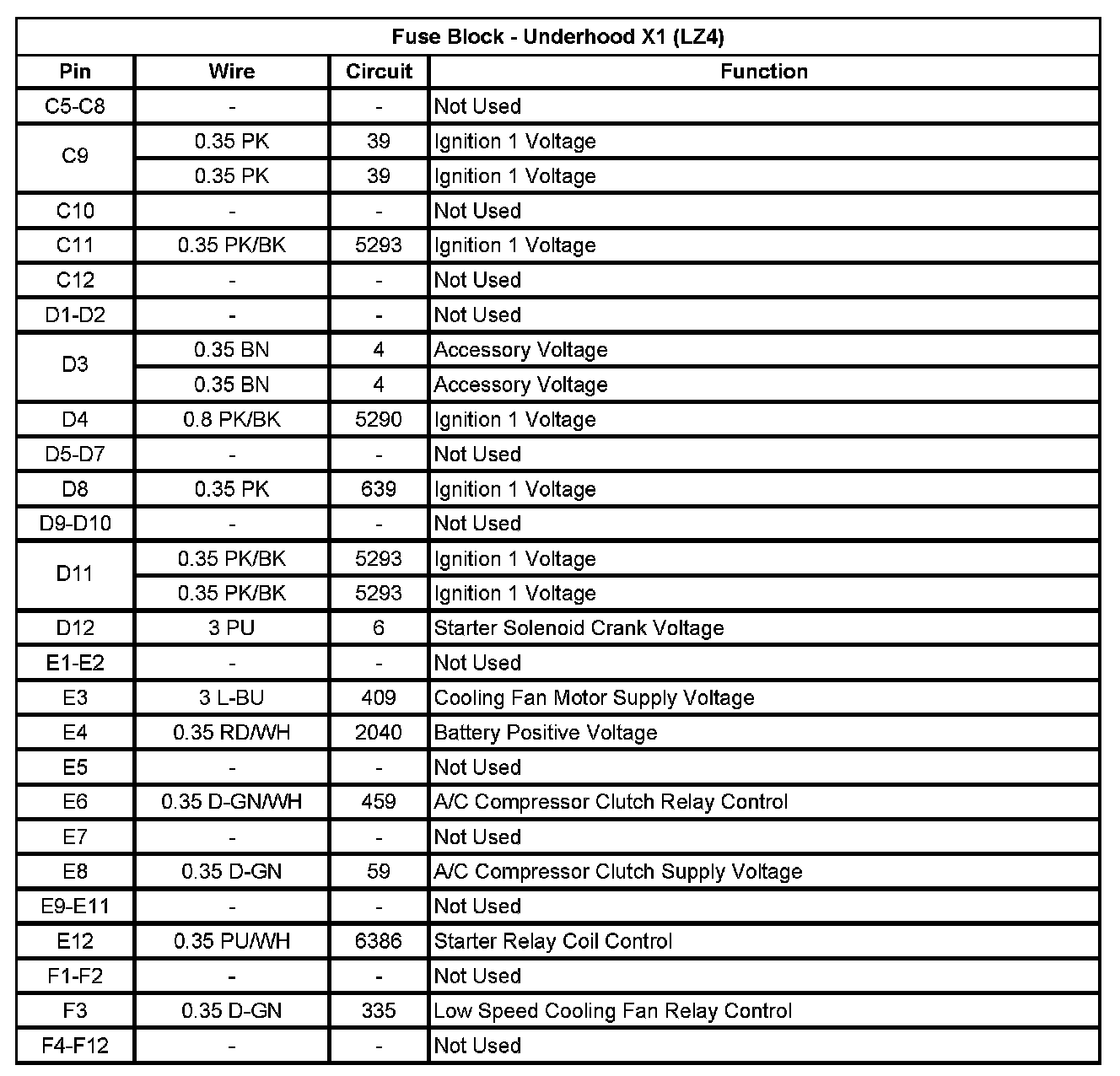

Fuse Block - Underhood X1 (LZ4) (Pin C5 To F12):

Fuse Block - Underhood X3

Fuse Block - Underhood X4
