System Specifications

Crankshaft Balancer Bolt
First Pass 100 Nm (74 lb ft)
Final Pass 150 Degrees

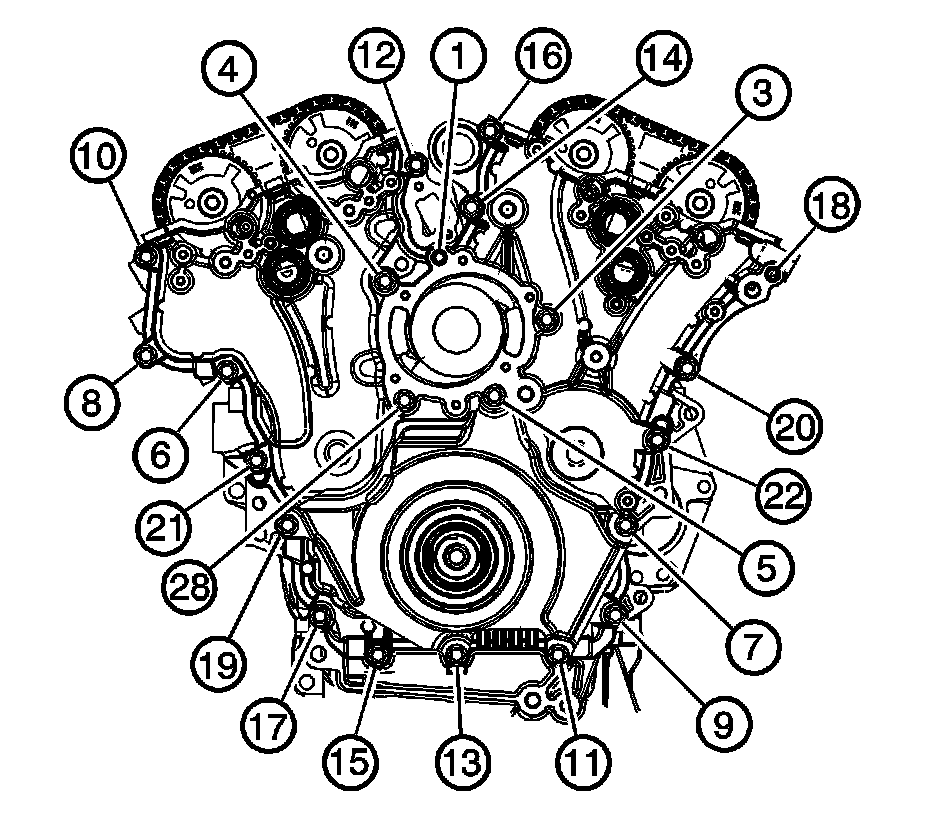

Engine Front Cover Bolt 23 Nm (17 lb ft)

Primary Camshaft Drive Chain
Tensioner Bolt 23 Nm (17 lb ft)

Secondary Camshaft Drive Chain
Tensioner Bolt 23 Nm (17 lb ft)
