6L50/6L80/6L90 - Automatic Transmission

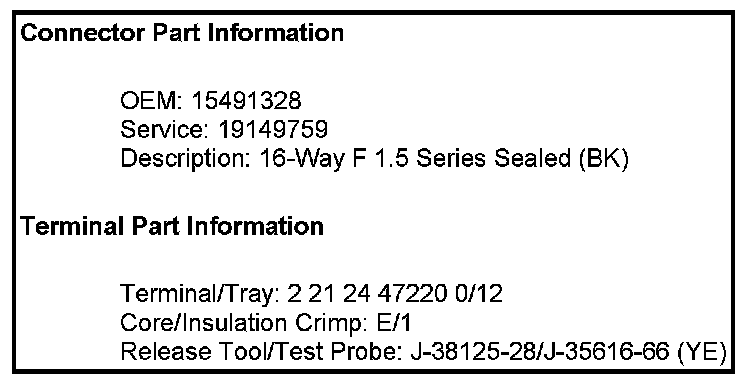

Component Connector End Views

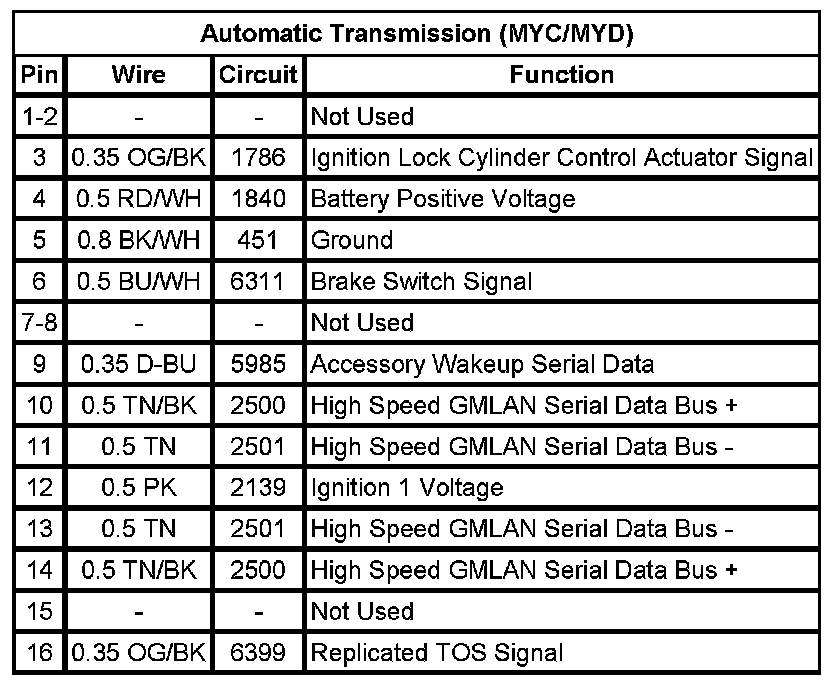

Automatic Transmission (MYC/MYD)
