Canister Purge Solenoid: Service and Repair

Evaporative Emission Canister Purge Solenoid Valve Replacement

Removal Procedure




1. Remove the air cleaner outlet resonator.

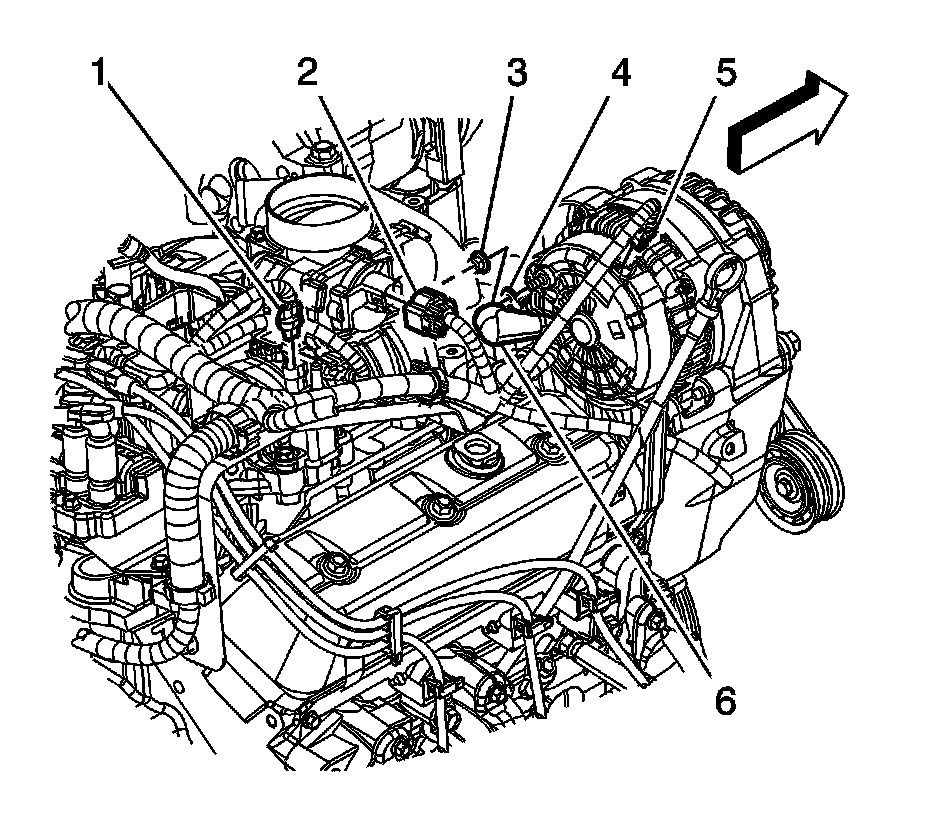

2. Disconnect the evaporative emission (EVAP) canister purge solenoid valve tube quick connect fitting (1) from the EVAP purge solenoid valve.
3. Reposition the tube out of the way.




4. Disconnect the engine wiring harness electrical connector (1) from the EVAP purge valve solenoid.

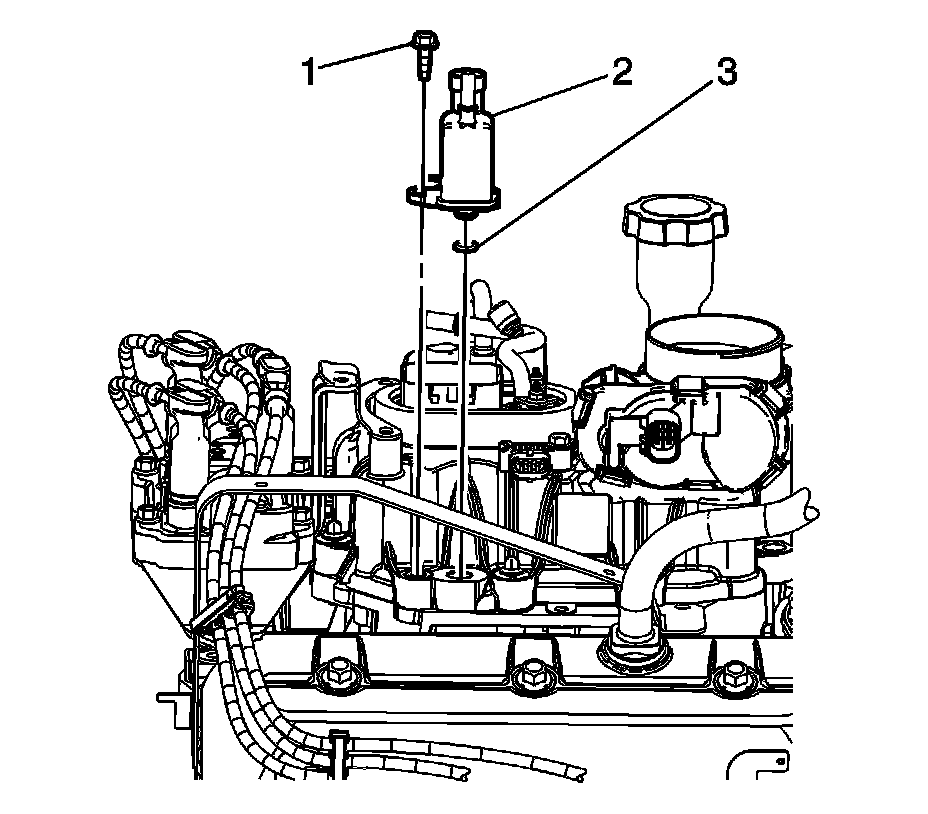

5. Remove the EVAP canister purge solenoid valve bolt (1).
6. Remove the EVAP canister purge solenoid valve (2) from the upper intake manifold.
7. Remove the EVAP canister purge solenoid valve O-ring seal (3) from the upper intake manifold, if necessary.

Installation Procedure




1. Lubricate the EVAP canister purge solenoid valve O-ring seal with clean engine oil in order to aid with the installation.
2. Install the EVAP canister purge solenoid valve (2) into the upper intake manifold.

Notice: Refer to Fastener Notice.

3. Install the EVAP canister purge solenoid valve bolt (1).

Tighten the bolt to 10 N.m (89 lb in).




4. Connect the engine wiring harness electrical connector (1) to the EVAP purge valve solenoid.




5. Position the EVAP canister purge solenoid tube, and connect the tube quick connect fitting (1) to the EVAP purge solenoid valve.
6. Install the air cleaner outlet resonator.
