B1289

DTC B1289

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure. Initial Inspection and Diagnostic Overview
* Review Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptors

DTC B1289 01
- Video Display Brightness Control Signal Short to Battery

DTC B1289 02
- Video Display Brightness Control Signal Short to Ground

DTC B1289 04
- Video Display Brightness Control Signal Open Circuit

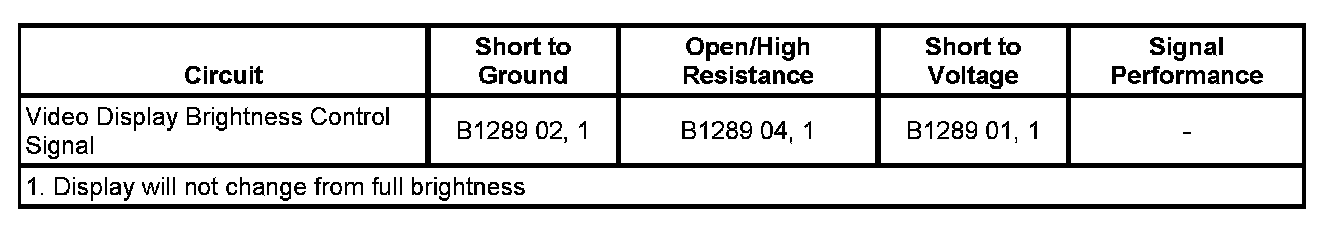

Diagnostic Fault Information






Circuit/System Description

The radio can control the video display brightness on vehicles equipped with rear seat entertainment (RSE) video. The radio varies a pulse with modulated (PWM) signal to the rear entertainment video screen to command the screen brightness to the desired level.

Conditions for Running the DTC

* Ignition ON.
* Battery voltage must be between 9-16 volts.

Conditions for Setting the DTC

The DTC will set when the radio detects a short to voltage, short to ground, or an open/high resistance in the video display brightness control circuit 400 ms after the radio activates the remote enable circuit.

Action Taken When the DTC Sets

The radio sets the DTC and defaults the video display to full brightness.

Conditions for Clearing the DTC

* The condition responsible for setting the DTC no longer exists.
* A history DTC will clear once 100 consecutive malfunction-free ignition cycles have occurred.

Circuit/System Testing

1. Ignition OFF, disconnect the harness connector of the rear video display.
2. Ignition ON, test for 100-300 Hz at the control circuit terminal 9.

• If not within the specified range, test the control circuit for a short to voltage, short to ground, or an open/high resistance. If the circuit tests normal, replace the radio.

3. If all circuits test normal, replace the rear video display.

Repair Instructions

Perform the Diagnostic Repair Verification after completing the diagnostic procedure. Verification Tests

* Video Display Replacement (Second Row) Video Display Replacement (Third Row)
