M99 - Automatic Transmission
DTC P0965, P0966 or P0967
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions provides an overview of each diagnostic category.
DTC Descriptor
DTC P0965
- Clutch Pressure Control (PC) Solenoid 2 System Performance
DTC P0966
- Clutch Pressure Control (PC) Solenoid 2 Control Circuit Low Voltage
DTC P0967
- Clutch Pressure Control (PC) Solenoid 2 Control Circuit High Voltage
Diagnostic Fault Information

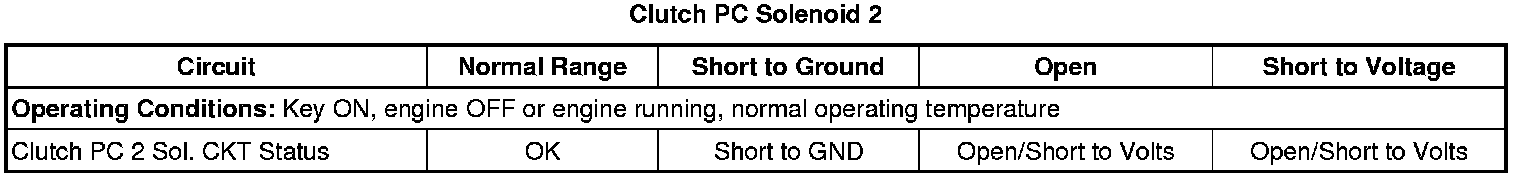

Typical Scan Tool Data
Circuit/System Description
The clutch pressure control (PC) solenoid 2 is part of the control solenoid (w/body and TCM) valve assembly and is not serviced separately. The transmission control module (TCM) supplies 12 volts to the clutch PC solenoid 2 on the high side driver 2 circuit. The TCM controls the PC solenoid 2 through the clutch PC solenoid 2 control circuit. The normally high clutch PC solenoid 2 flows fluid to the hybrid direct 2-3-4 clutch and drive motor 2 when commanded ON.
Conditions for Running the DTC
* The engine run time is greater than 5 seconds.
* The clutch PC solenoid 2 is commanded ON.
Conditions for Setting the DTC
P0965
The TCM detects an internal electrical performance malfunction of the clutch PC solenoid control circuit and the actual hybrid direct 2-3-4 clutch pressure does not equal the commanded hybrid direct 2-3-4 clutch pressure for 300 milliseconds.
P0966
The TCM detects an internal low voltage electrical malfunction of the clutch PC solenoid control circuit for 300 milliseconds.
P0967
The TCM detects an internal high voltage electrical malfunction of the clutch PC solenoid control circuit for 300 milliseconds.
Action Taken When the DTC Sets
* DTC P0965 is a Type B DTC.
* DTCs P0966 and P0967 are Type A DTCs.
* The TCM defaults the transmission to a limited shift pattern utilizing 2 forward gears and reverse based on the fault detected.
* The TCM commands maximum line pressure.
* The TCM freezes transmission adaptive functions.
Conditions for Clearing the DTC
* DTC P0965 is a Type B DTC.
* DTCs P0966 and P0967 are Type A DTCs.
Diagnostic Aids
When attempting to set solenoid electrical DTCs, ensure the TCM is warmed up and the transmission is operated in 2nd gear long enough to ensure a 3°C (5°F) increase in TCM temperature. This will place the TCM under the optimal conditions to test solenoid electrical DTCs.
Reference Information
Schematic Reference
Automatic Transmission Controls Schematics (Electrical Diagrams)
Connector End View Reference
Component Connector End Views
Electrical Information Reference
* Circuit Testing
* Connector Repairs
* Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs
* High Voltage Disabling
* High Voltage Enabling
DTC Type Reference
Powertrain Diagnostic Trouble Code (DTC) Type Definitions
Scan Tool Reference
* Scan Tool Output Controls (Scan Tool Output Controls)
* Scan Tool Data List (Scan Tool Data List)
* Scan Tool Data Definitions (Scan Tool Data Definitions)
Circuit/System Verification
Perform the following procedure to place the control solenoid (w/body and TCM) valve assembly under the optimal conditions to test solenoid electrical DTCs.
1. Ensure the transmission fluid temperature is between 50-80°C (122-176°F).
2. Operate the vehicle in 2nd gear long enough to ensure at least a 3°C (5°F) rise in TCM substrate temperature, then operate the vehicle in 3rd gear for 5 seconds.
Component Testing
The scan tool data parameter Clutch PC 2 Sol. CKT Status normally displays OK.
If the parameter displays Open/Short to Volts, Short to GND, or if the DTC resets, perform the Control Solenoid Valve and Transmission Control Module Assembly Inspection and if no concerns are found replace the control solenoid (w/body and TCM) valve assembly.
Repair Instructions
Perform the Diagnostic Repair Verification after completing the diagnostic procedure.
Control solenoid (w/body and TCM) valve assembly replacement. Refer to Control Module References for replacement, setup, and programming.
