Entertainment Systems: Diagrams

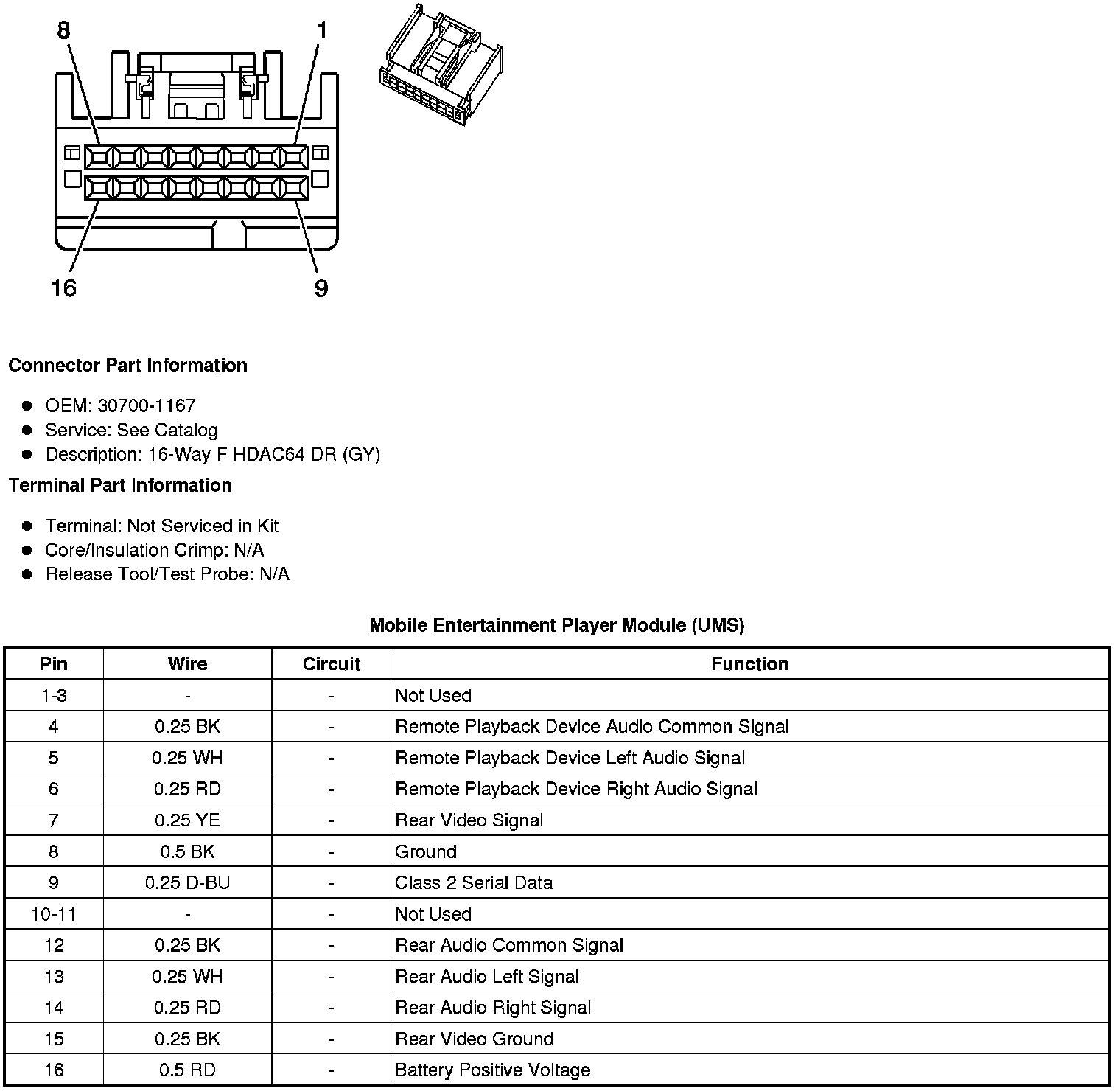

Component Connector End Views

Mobile Entertainment Player Module (UMS)
