Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2008
>>
Uplander V6-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Door Locks
Door Locks

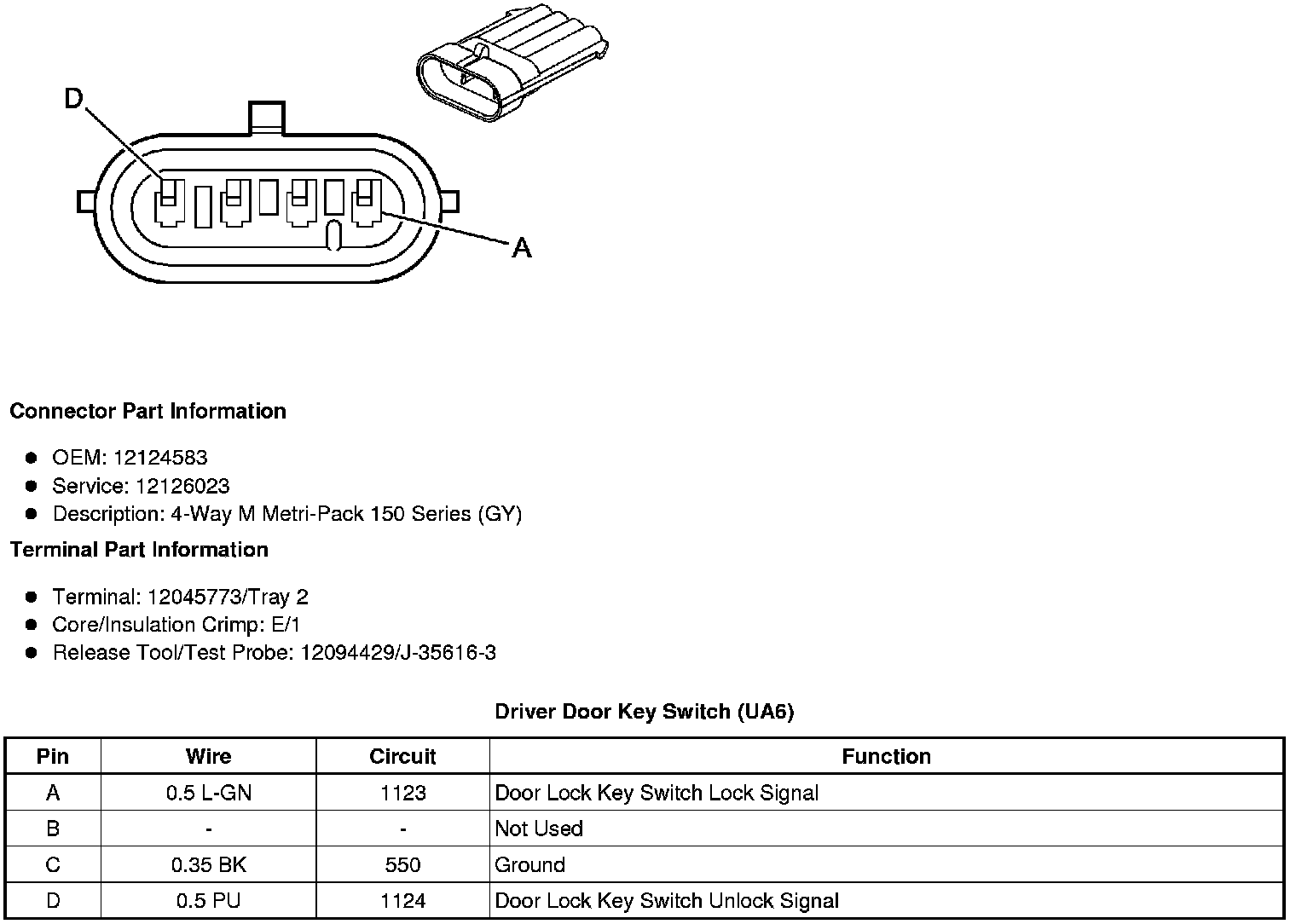

Component Connector End Views
Driver Door
Key
Switch (UA6)
