Instrument Cluster / Carrier
>>
Multifunction Switch - Instrument Panel
Multifunction Switch - Instrument Panel

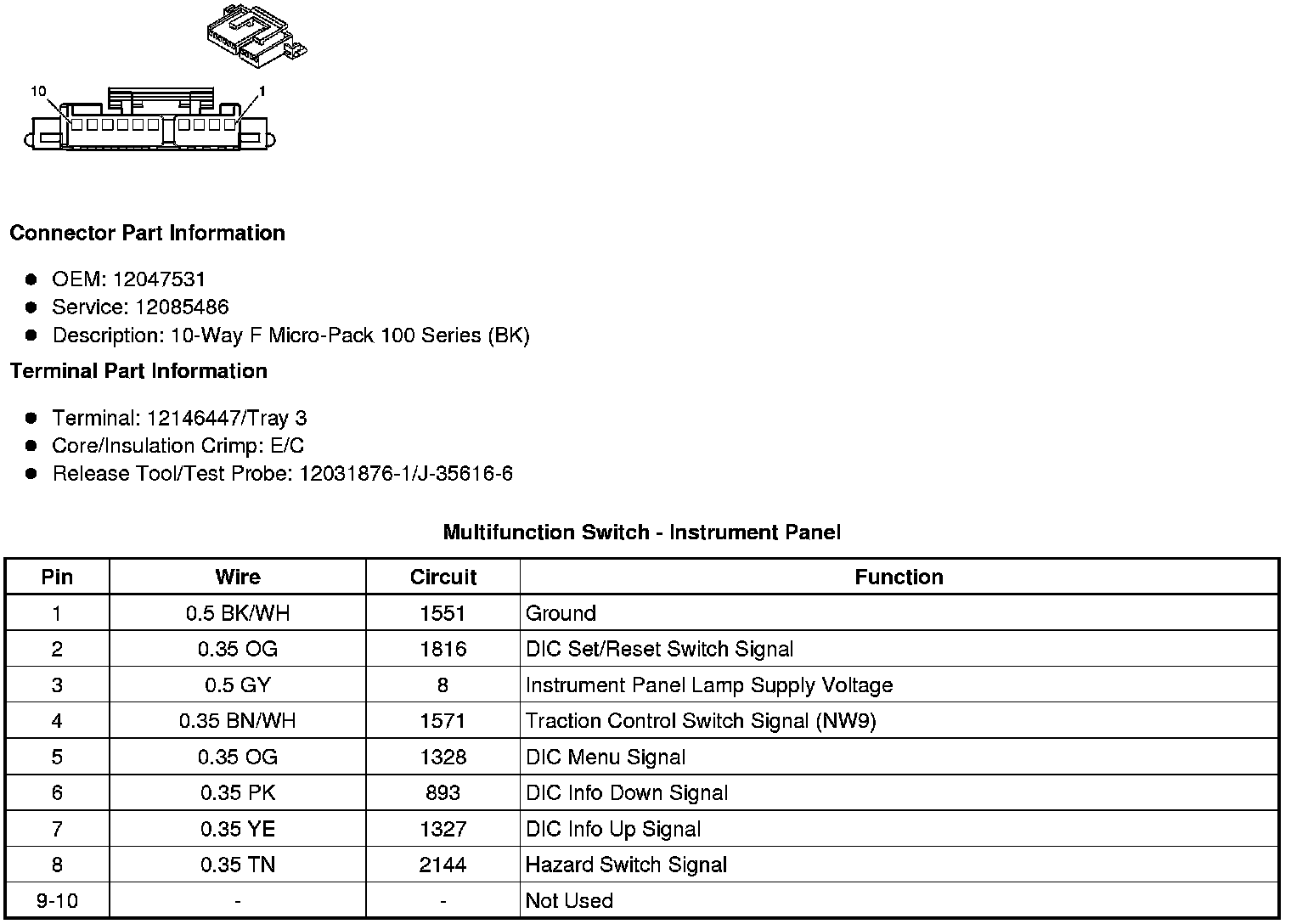

Component Connector End Views
Multifunction Switch - Instrument Panel
