Home
>>
Chevrolet
>>
2008
>>
Uplander V6-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seats
>>
Power Seat Motor
>>
Swivel Motor
Swivel Motor

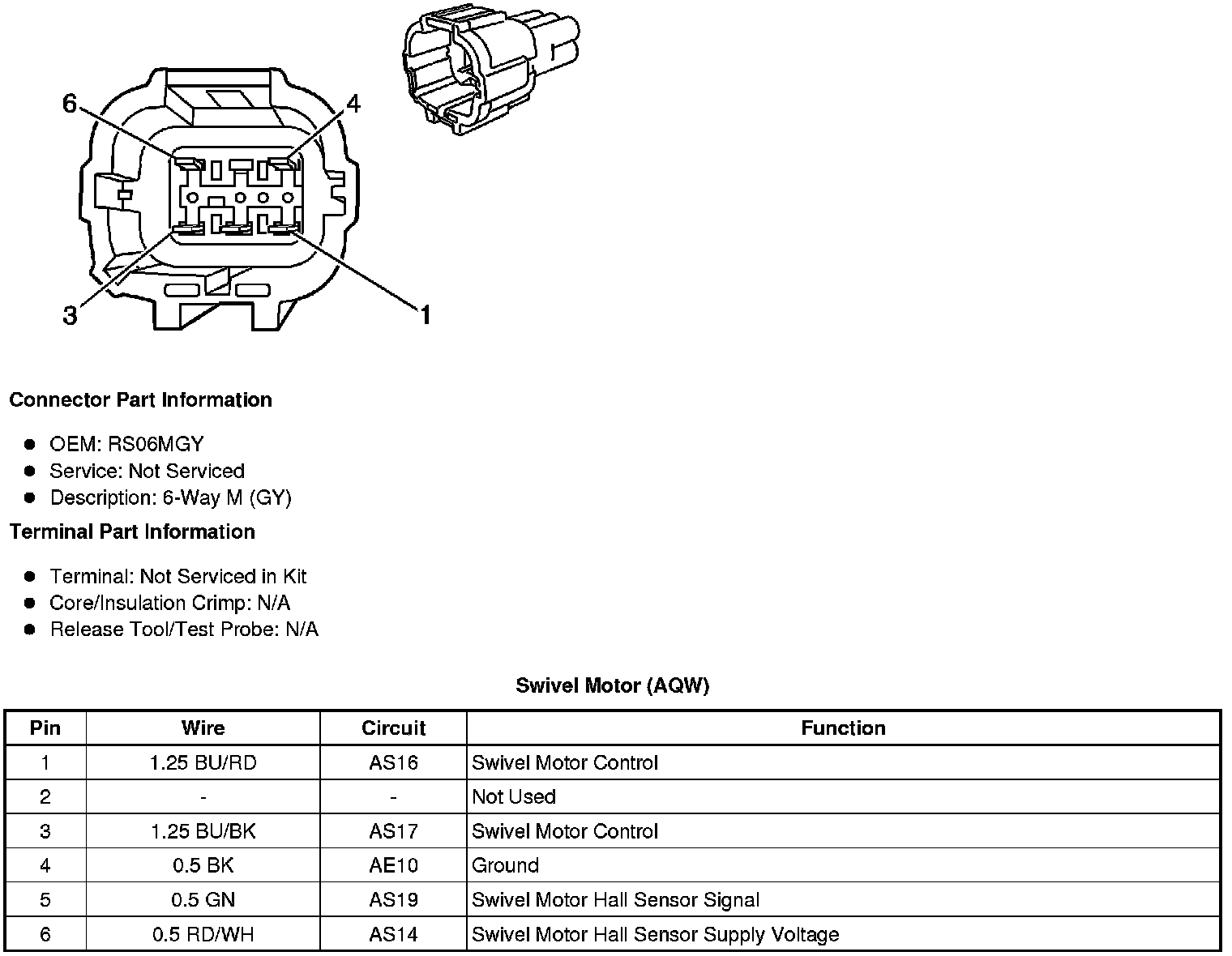

Component Connector End Views
Swivel Motor (AQW)
