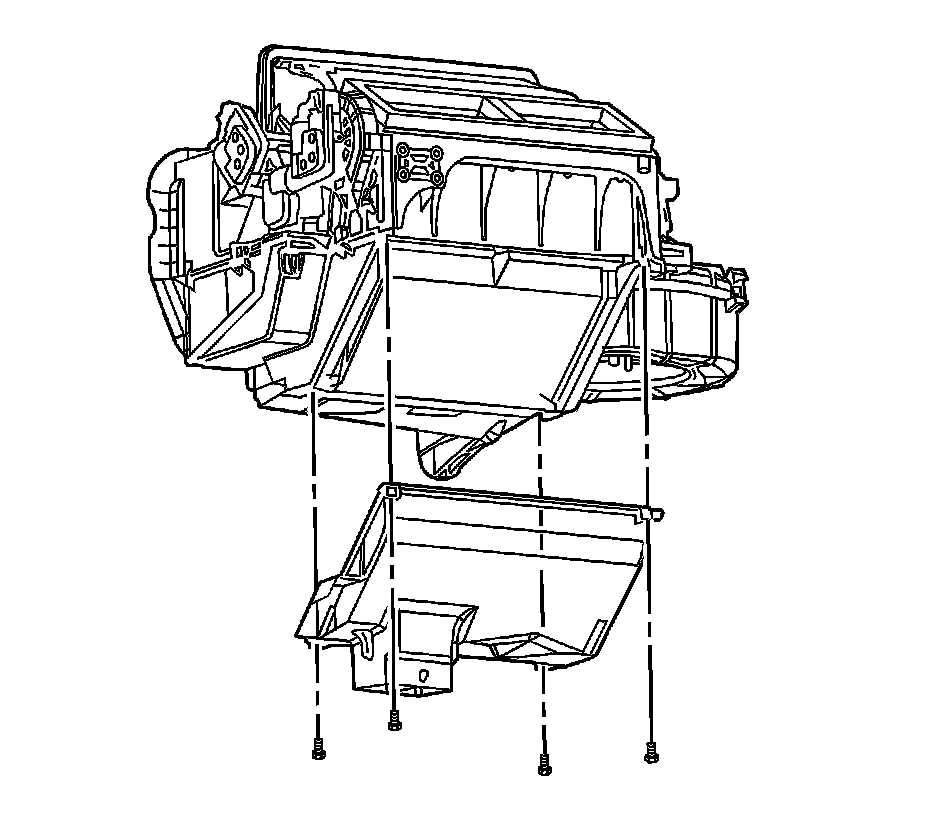

Floor Air Outlet Replacement



Floor Air Outlet Replacement

Removal Procedure




1. Remove the instrument panel (I/P) compartment.
2. Remove the center floor air outlet. Refer to Floor Air Outlet Duct Replacement - Center (Floor Air Outlet Duct Replacement - Center).
3. Remove the floor air outlet screws.
4. Remove the floor air outlet.

Installation Procedure




1. Install the floor air outlet.
Notice: Refer to Fastener Notice (Fastener Notice).

2. Install the floor air outlet screws.

Tighten the screws to 1.2 N.m (11 lb in).

3. Install the center floor air outlet. Refer to Floor Air Outlet Duct Replacement - Center (Floor Air Outlet Duct Replacement - Center).
4. Install the I/P compartment.
