Removal

Exhaust Differential Pressure Sensor

Exhaust System

Removal
1. Turn off the ignition.
2. Disconnect the harness connector to the exhaust differential pressure sensor.

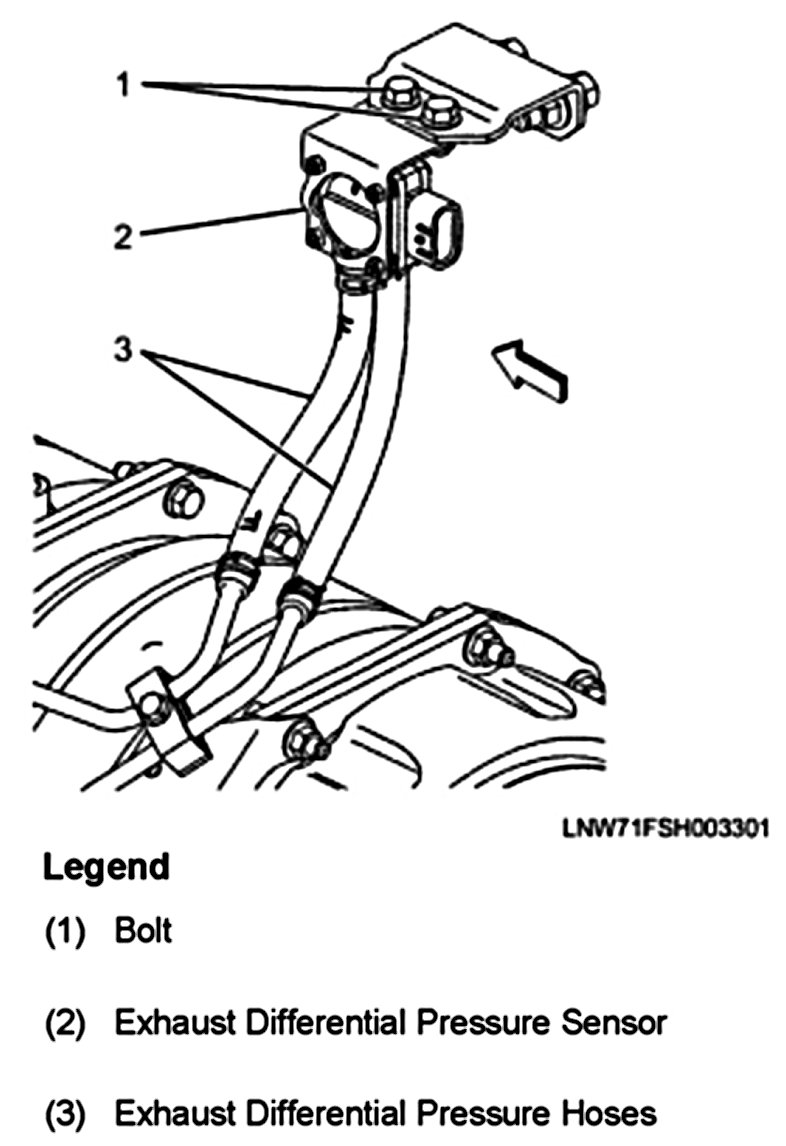

3. Remove the exhaust differential pressure hoses (3). Mark with a pen etc. to avoid incorrect connection.
4. Remove the bolts (1) of the exhaust differential pressure sensor from the bracket.







NOTE:
- If the differential pressure sensor assembly must unavoidably be removed, pay attention to the following points.

- Do not loosen the four sensor tightening screws (2). If they are loosened, replace the sensor assembly.
- Do not re-use the sensor assembly if it is ever dropped.
- Do not use tools that cause vibrations such as an impact wrench when installing or removing the differential pressure sensor.
