System Diagram




Component Connector End Views

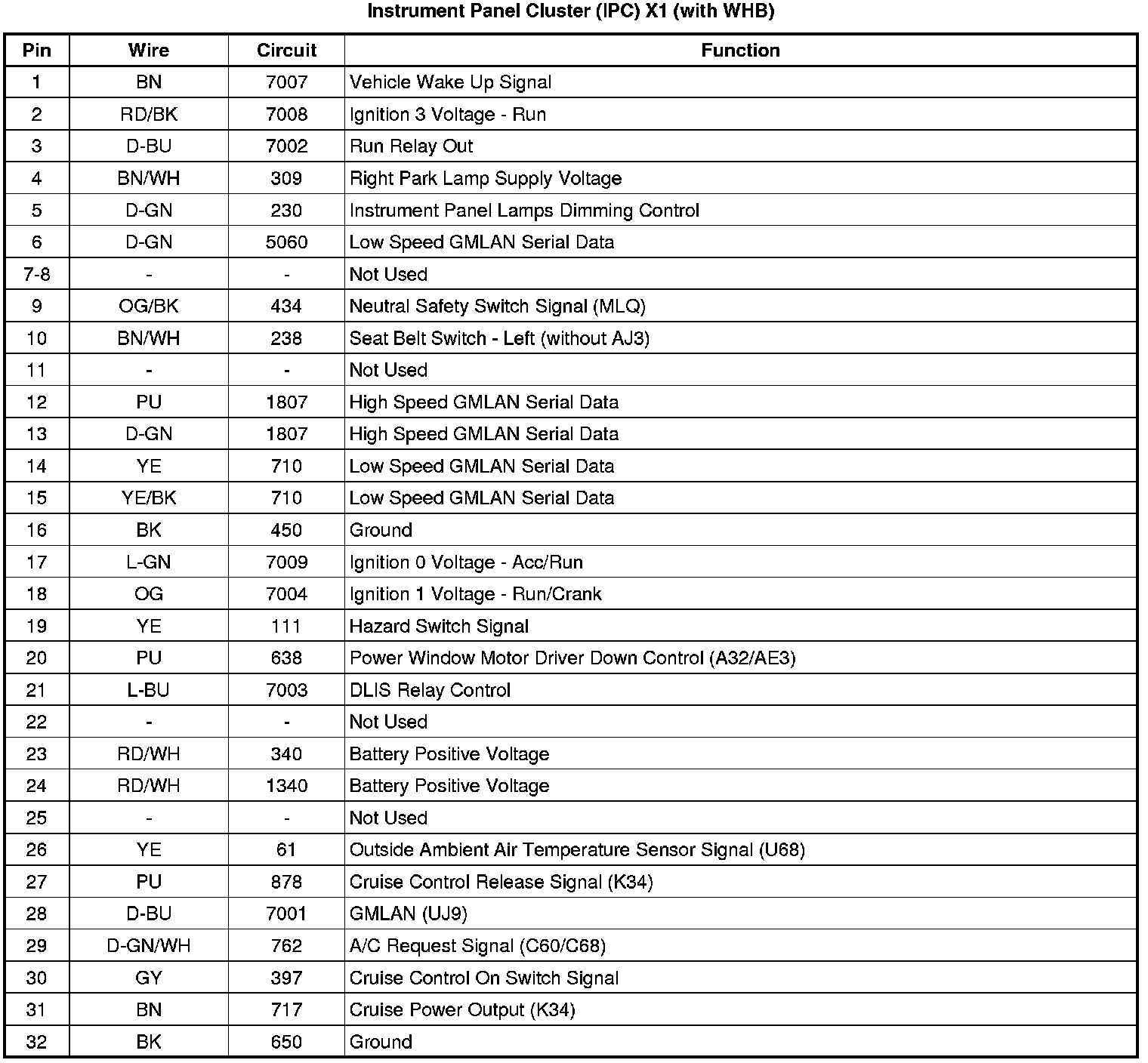

Instrument Panel Cluster (IPC) X1 (with WHB)

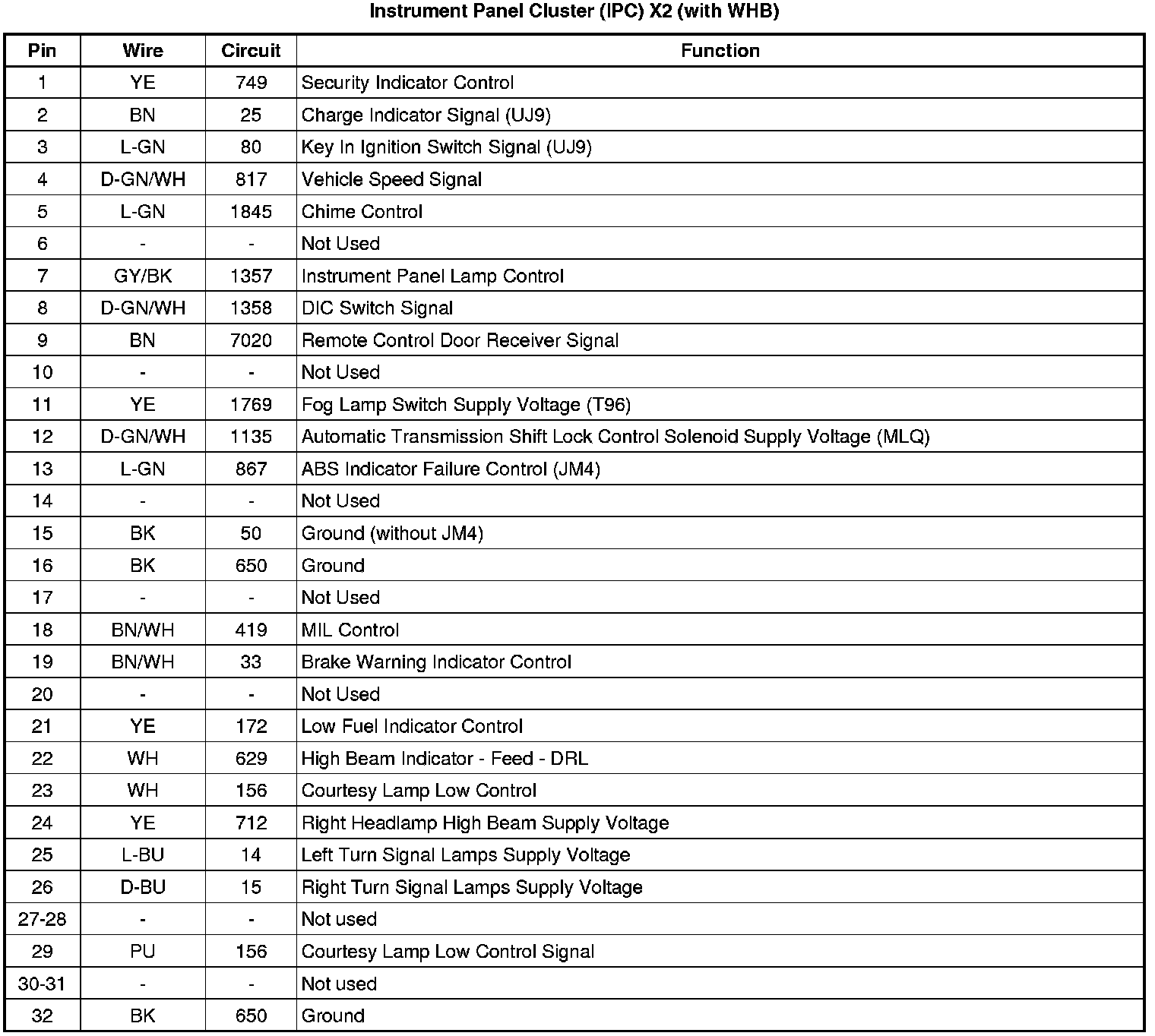

Instrument Panel Cluster (IPC) X2 (with WHB)

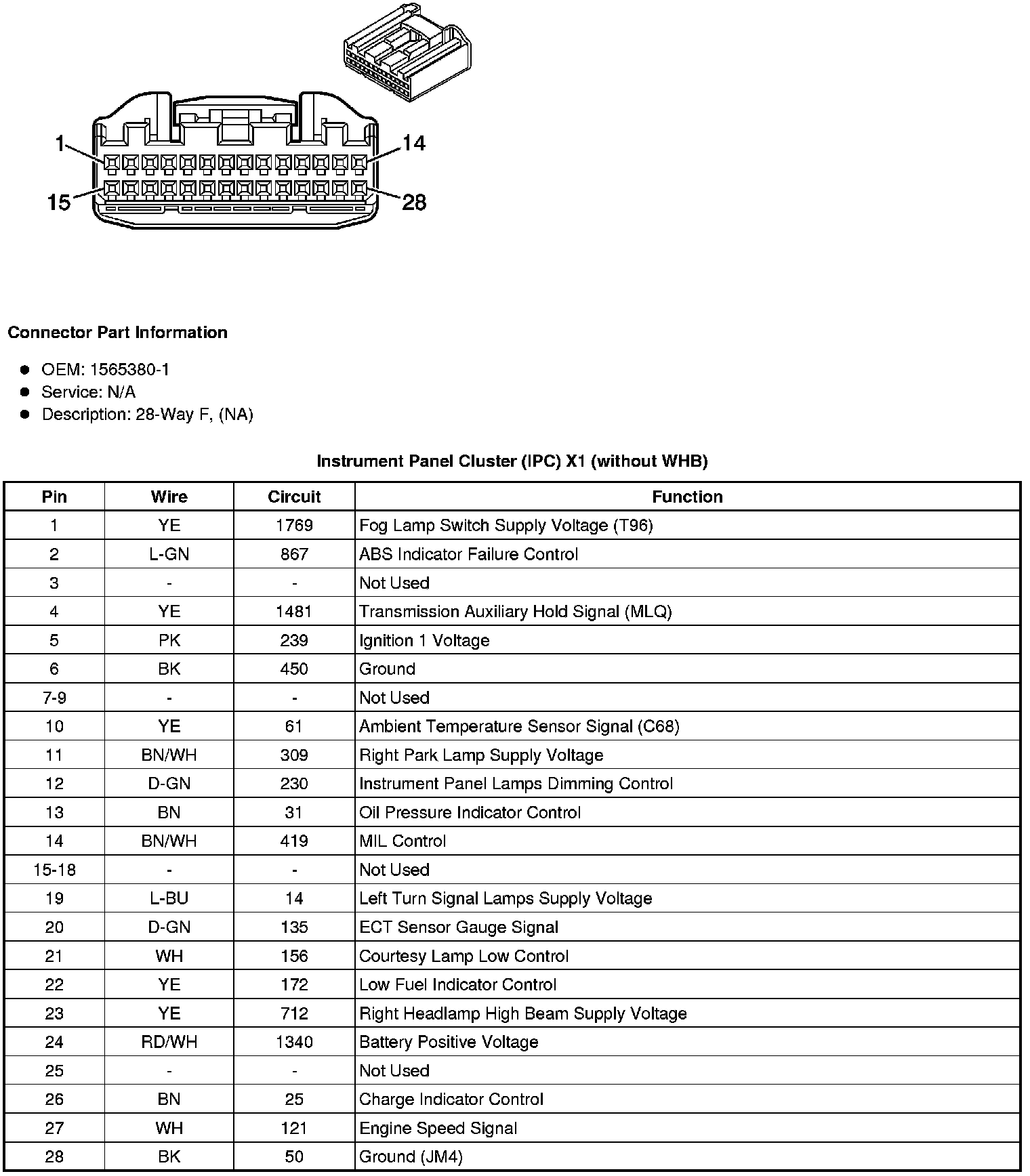

Instrument Panel Cluster (IPC) X1 (without WHB)

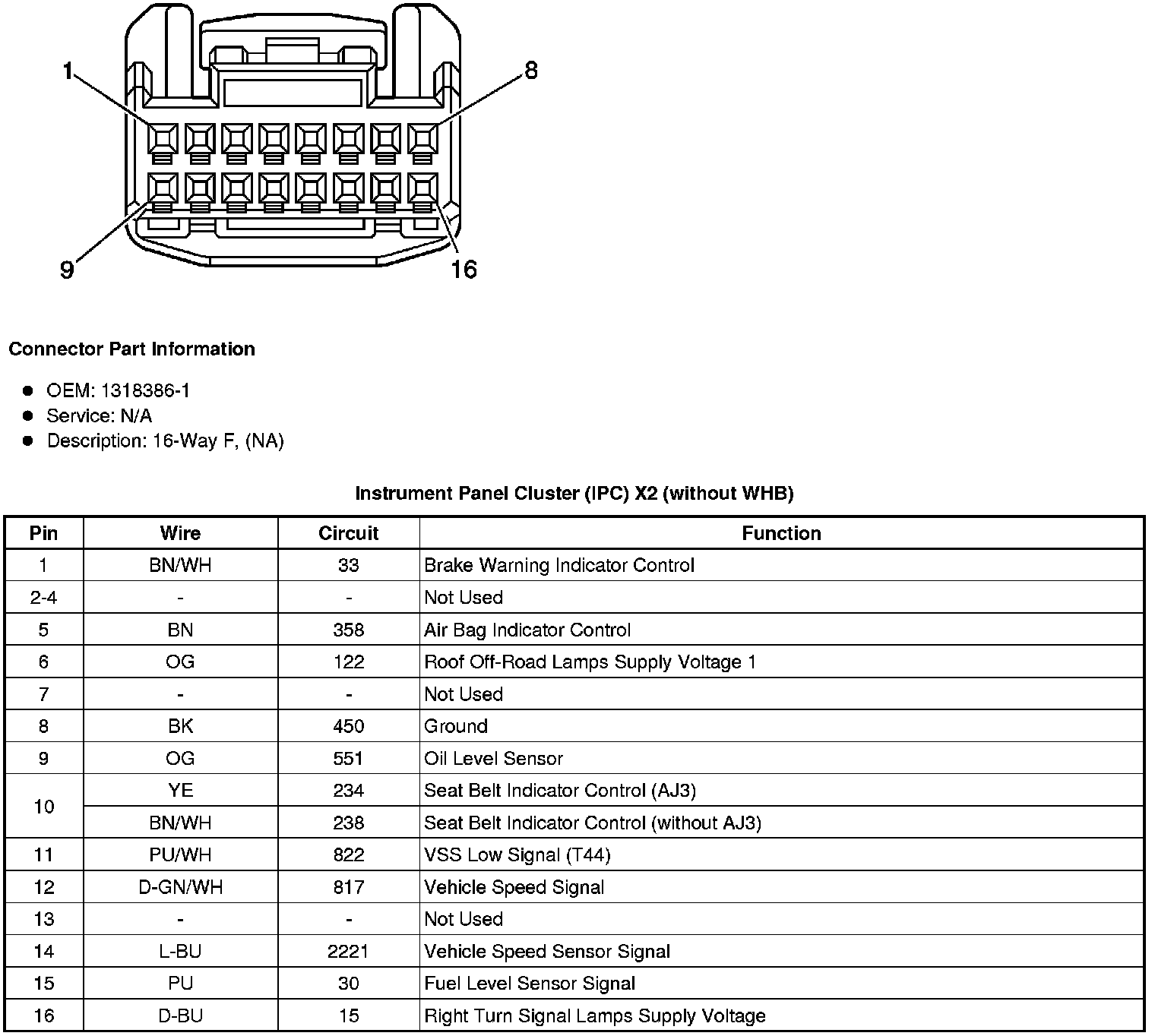

Instrument Panel Cluster (IPC) X2 (without WHB)
