Folding Seat Replacement (Extended Cab)




Folding Seat Replacement (Extended Cab)

Removal Procedure

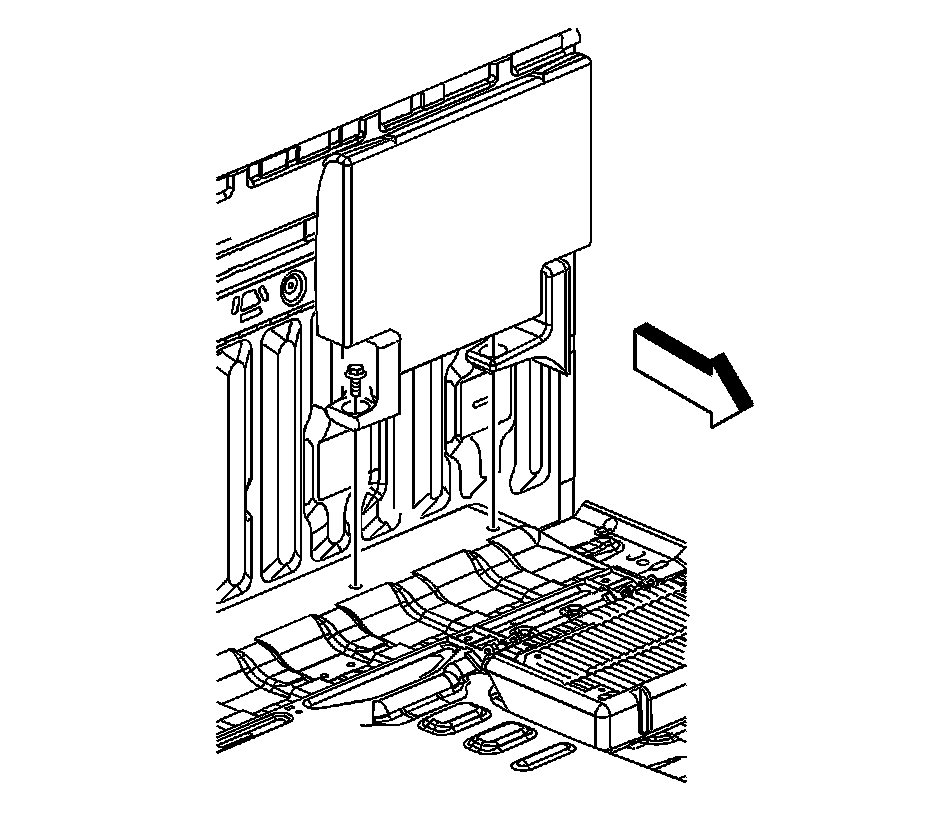

1. Remove the 2 bolts securing the folding rear seat cushion assembly to the vehicle.
2. Remove the rear seat from the vehicle.

Installation Procedure




1. Position the folding rear seat cushion assembly in the vehicle.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the 2 bolts securing the folding rear seat cushion assembly to the vehicle.

Tighten the folding rear seat cushion assembly bolts to 52.5 Nm (39 lb ft).
