Shift Cable: Adjustments




Range Selector Lever Cable Adjustment




1. Shift the transmission into NEUTRAL.
2. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair).

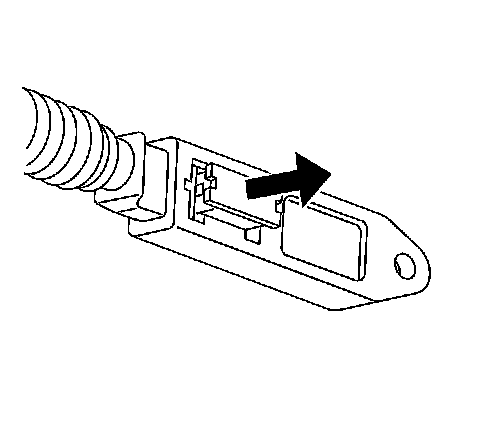

3. Using a flat-bladed screwdriver, carefully pry to release the transmission shift control cable adjustment lock.
4. Check to be sure that the transmission floor shift control is in the NEUTRAL detent position.
5. Check to be sure that the transmission is in the NEUTRAL detent position.




6. Press to secure the transmission shift control cable adjustment lock.
7. Lower the vehicle.
