Input and Output Speed Sensor Assembly Installation
Input and Output Speed Sensor Assembly Installation 1.

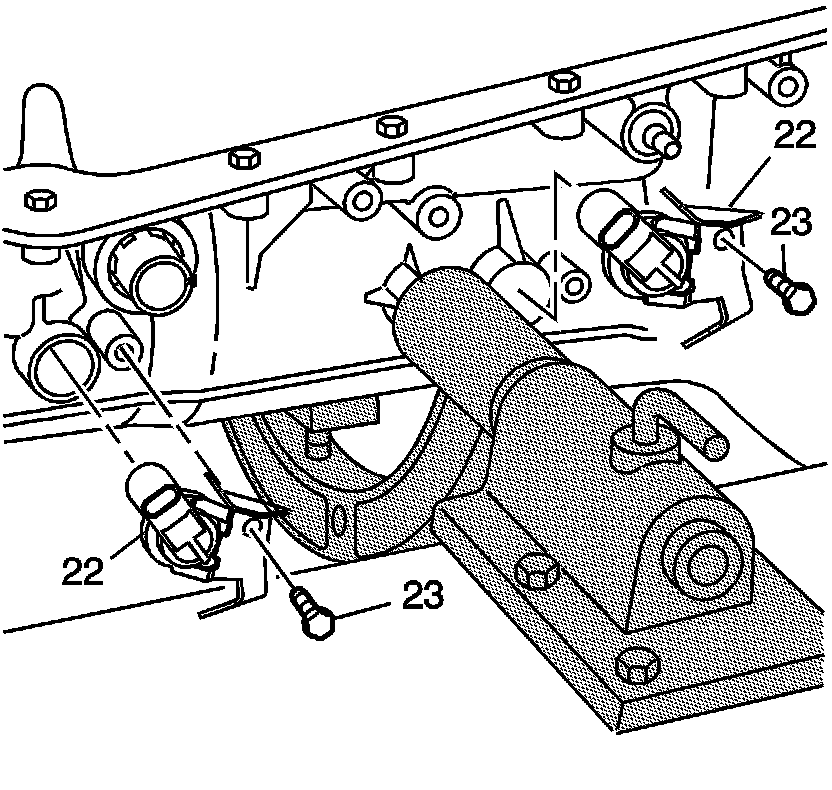

Install the input and output speed sensors (22), (output speed sensor plug-4WD) into the transmission case.
Caution: Refer to Fastener Caution (
Fastener Caution).
2.
Install the input and output speed sensor bolts (23). Tighten the bolts to
11 Nm (97 lb in).
