Center Intake Manifold Replacement

Center Intake Manifold Replacement (LMM)

Removal Procedure




1. Remove the turbocharger. Refer to Turbocharger Replacement (Turbocharger Replacement).

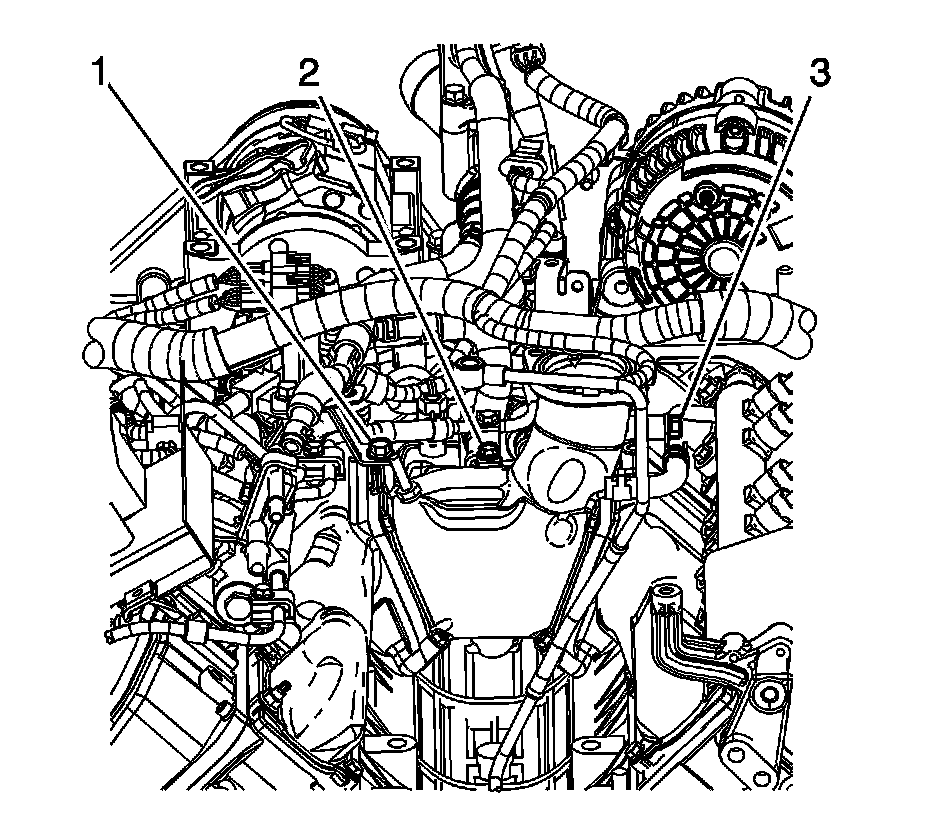

2. Loosen the connector bracket bolt and nut.
3. Remove the connector bracket bolt (1).
4. Remove the fuel rail clamp bolt (2).

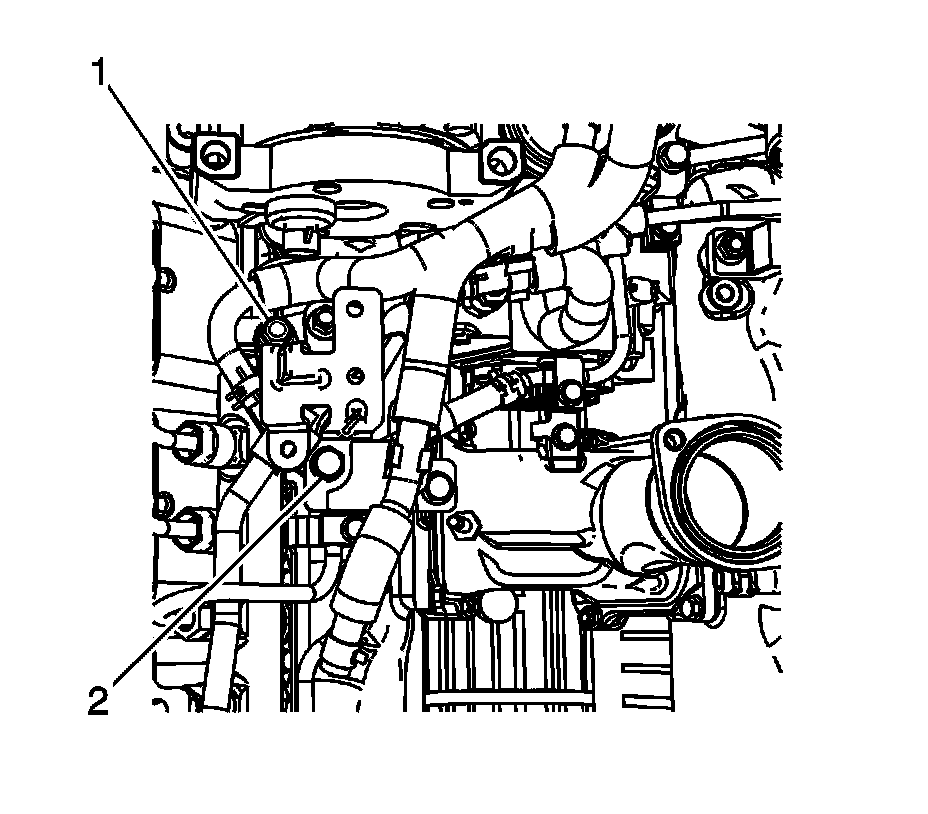

5. Remove the connector bracket bolt (2) and nut (1), and reposition the bracket.




6. Disconnect the engine wiring harness electrical connector from the intake air temperature (IAT) sensor No. 2. Refer to Intake Air Temperature (IAT) Sensor 2 Replacement (Service and Repair).

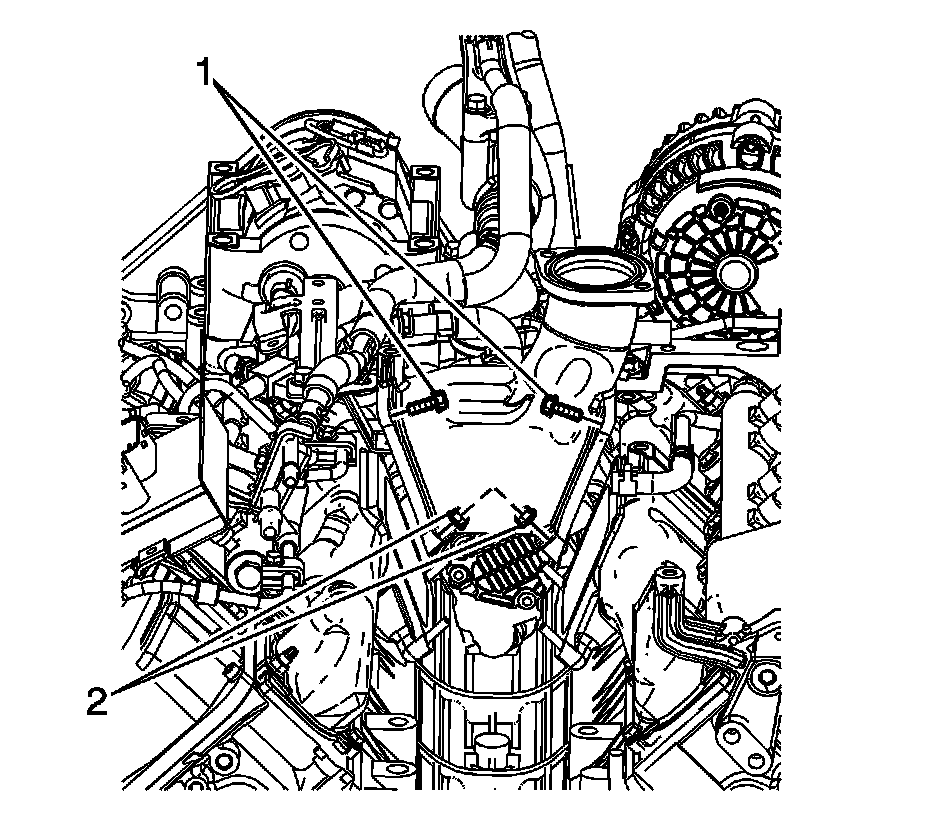

7. Remove the center intake manifold 4 bolts (1).
8. Remove the center intake manifold 2 nuts (2) and 2 bolts.
9. Remove the center intake manifold.
10. Remove and discard the center intake manifold gaskets.
11. If replacing the center intake manifold, remove the IAT sensor.

Installation Procedure





Caution: Refer to Fastener Caution (Fastener Caution).

1. If the center intake manifold was replaced, install the IAT sensor No. 2 and tighten to 25 Nm (18 lb ft).
2. Install NEW center intake manifold gaskets to the intake.
3. Install the center intake manifold.

Note: The center intake manifold lower nuts MUST be installed and tightened first.

4. Install the center intake manifold lower 2 nuts (2) and 2 bolts. Tighten the nuts to 10 Nm (89 lb in).
5. Install the center intake manifold upper 4 bolts (1) and tighten to 10 Nm (89 lb in).
6. Connect the engine wiring harness electrical connector to the IAT sensor No. 2. Refer to Intake Air Temperature (IAT) Sensor 2 Replacement (Service and Repair).




7. Position the connector bracket and install the bolt (2) and nut (1). Tighten the bolts to 15 Nm (11 lb ft).




8. Install the fuel rail clamp bolt (2) and tighten to 25 Nm (18 lb ft).
9. Install the connector bracket bolt (1) and tighten to 15 Nm (11 lb ft).
10. Install the turbocharger. Refer to Turbocharger Replacement (Turbocharger Replacement).
