Power Distribution Diagram Index

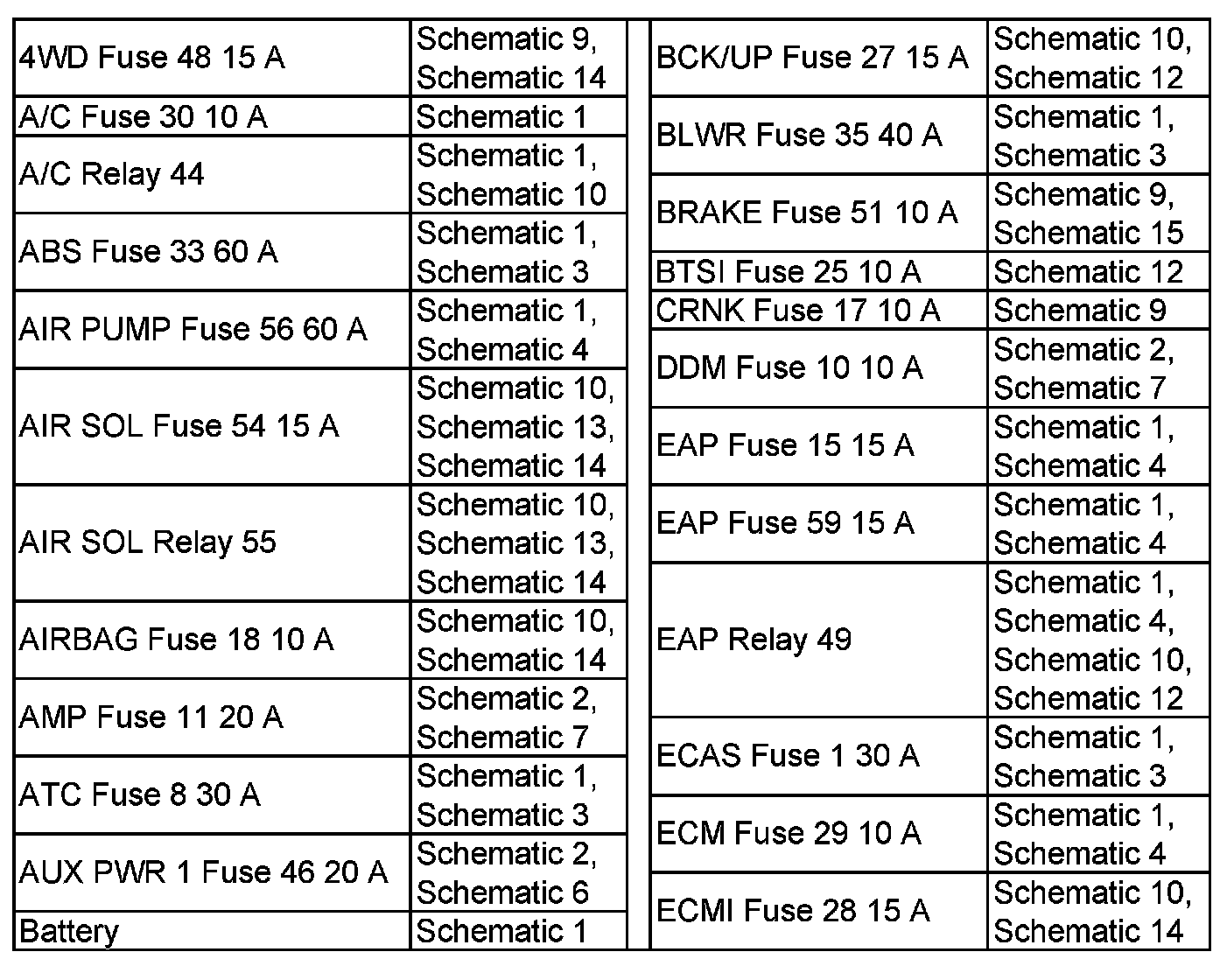

4WD Fuse 48 15 A-ECMI Fuse 28 15 A:

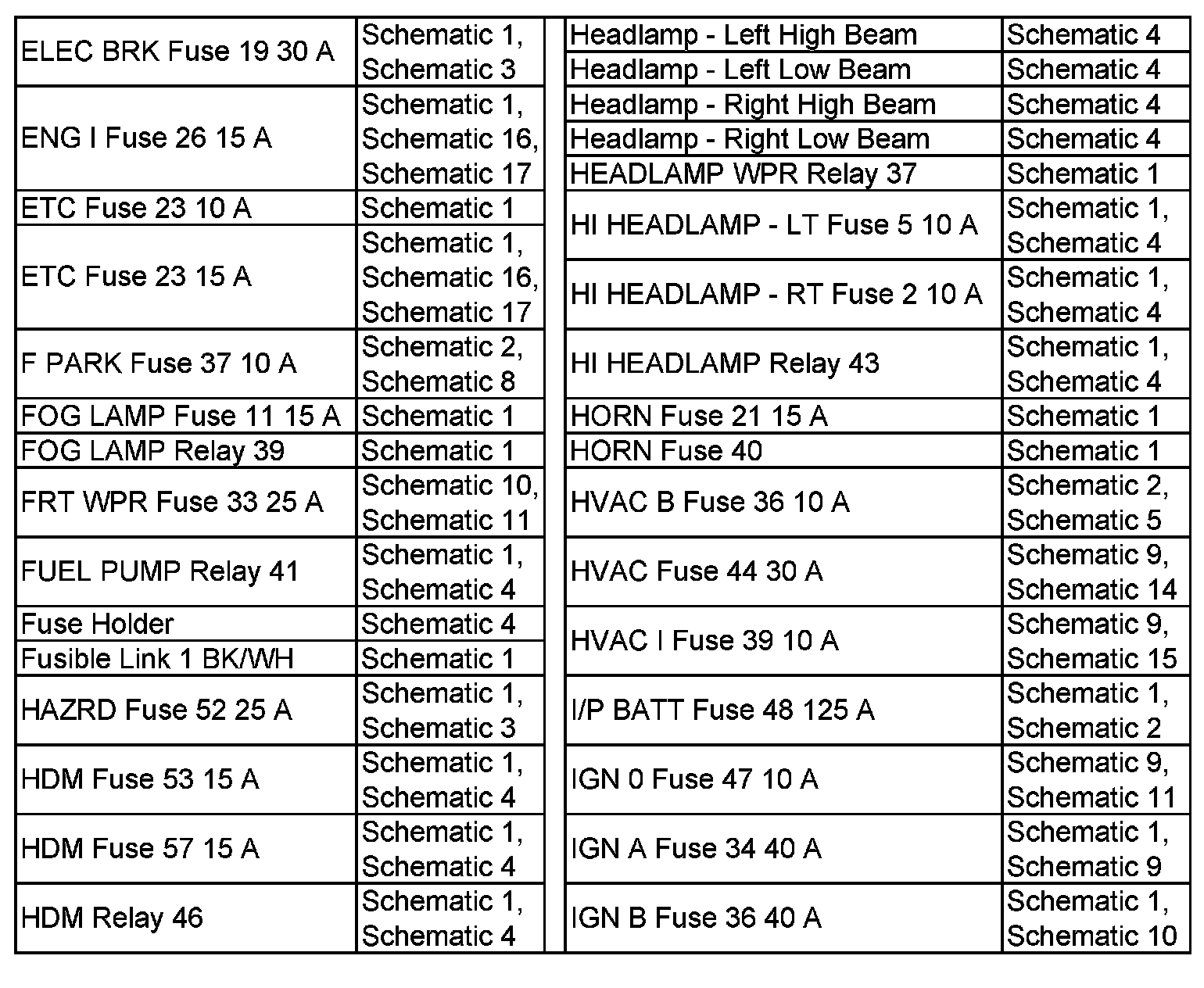

ELEC BRK Fuse 19 30 A-IGN B Fuse 36 40 A:

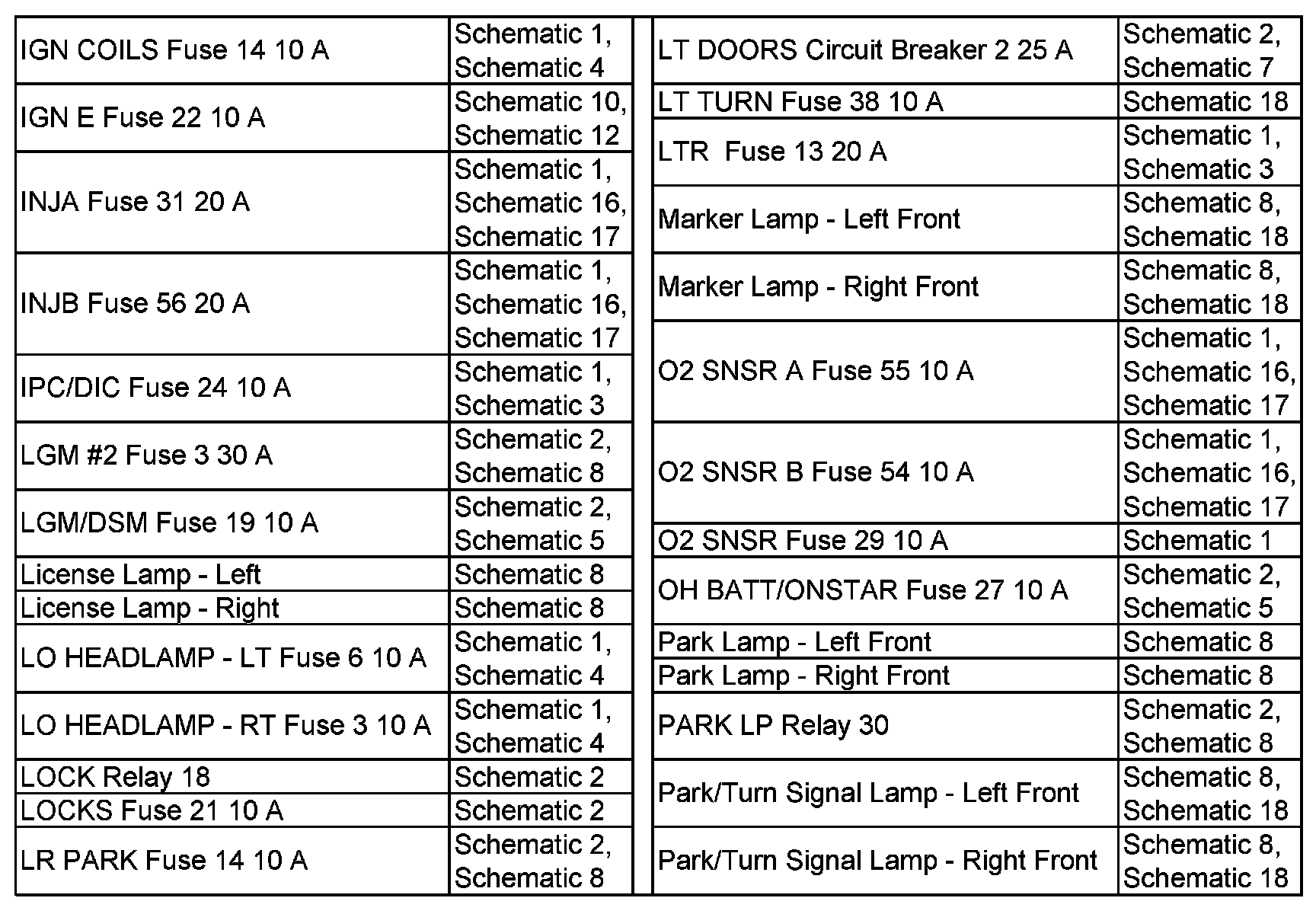

IGN COILS Fuse 14 10 A-Park/Turn Signal Lamp - Right Front:

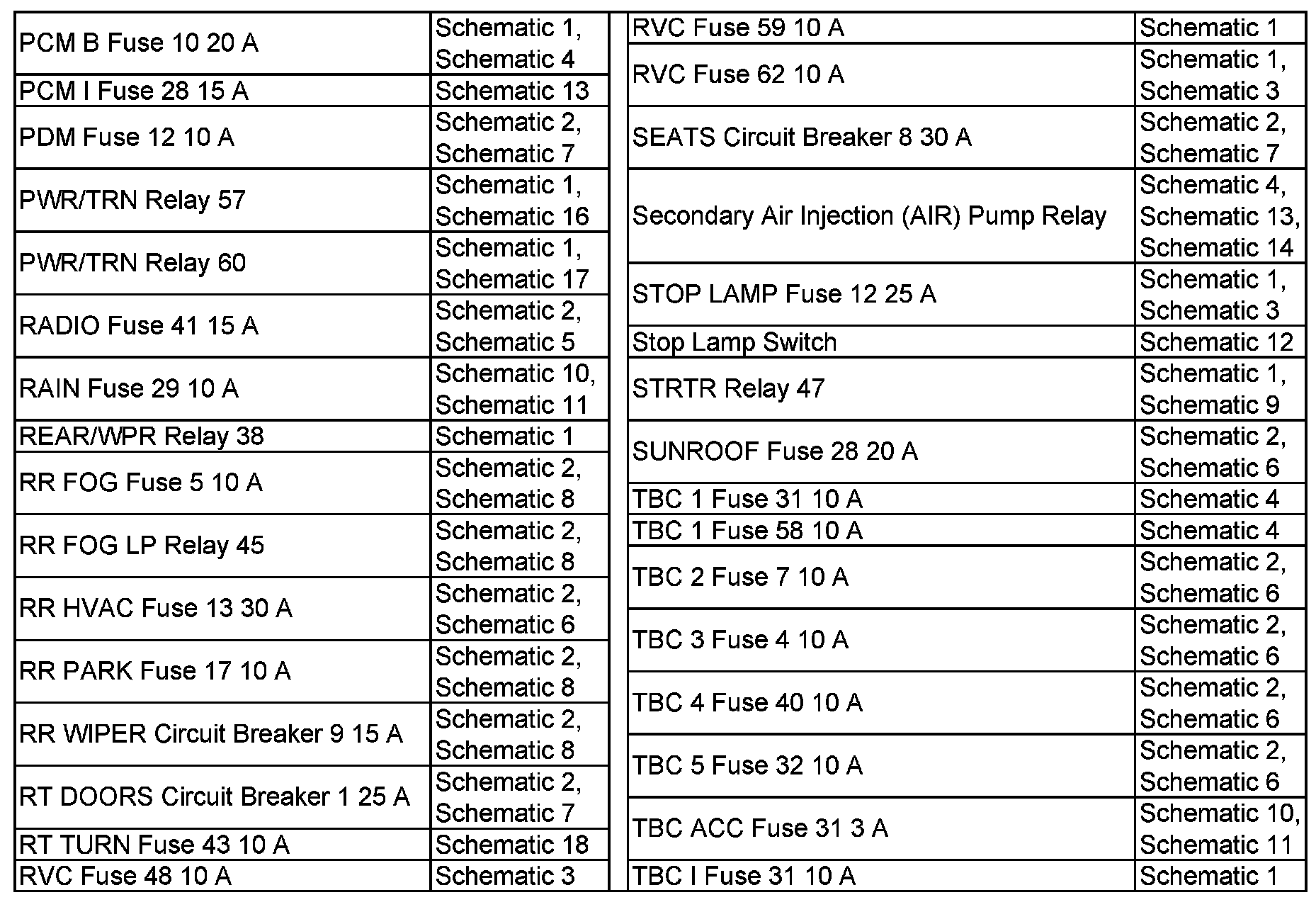

PCM B Fuse 10 20 A-TBC I Fuse 31 10 A:

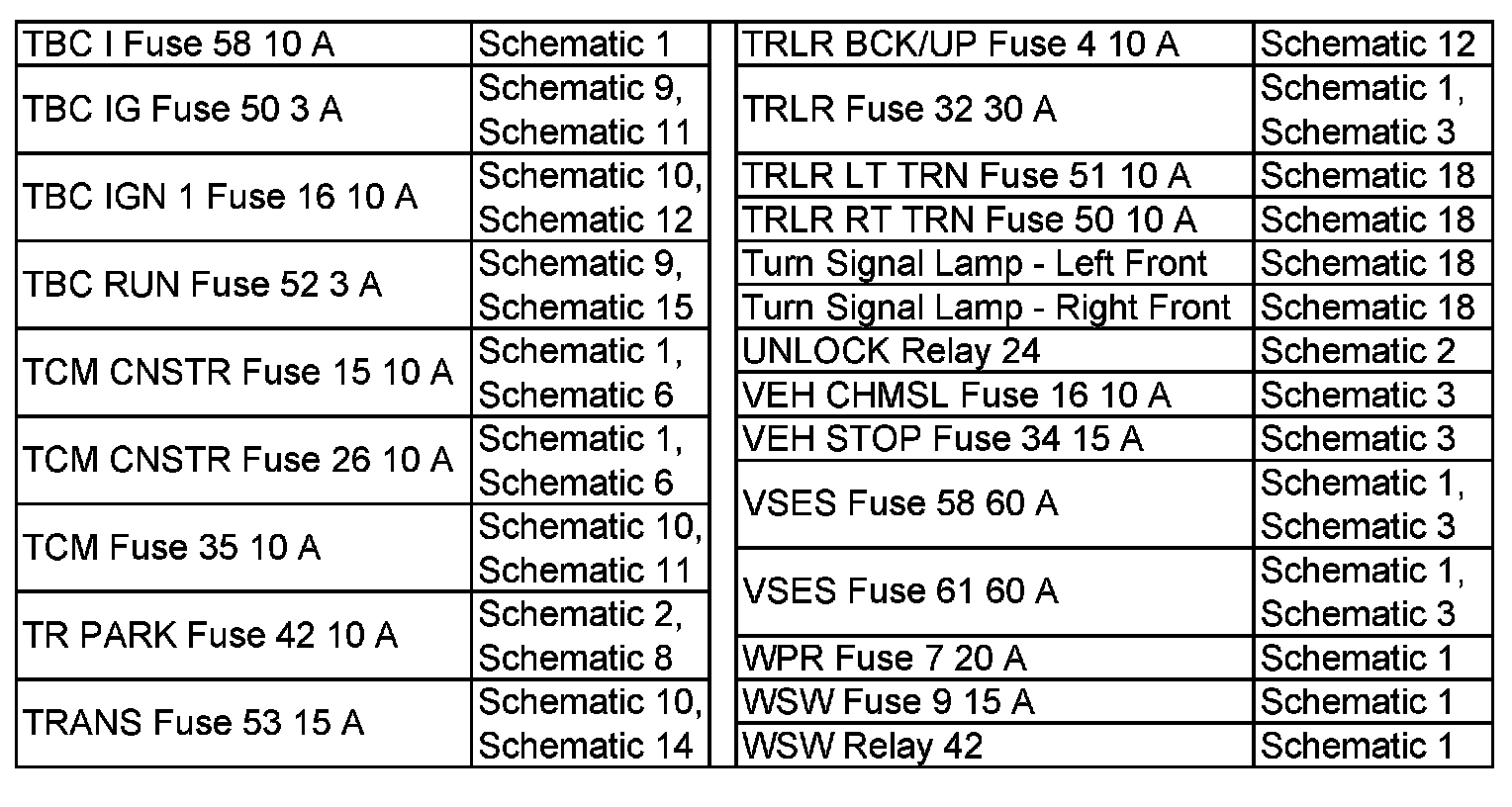

TBC I Fuse 58 10 A-WSW Relay 42:
