Suspension Control ( Automatic - Electronic )

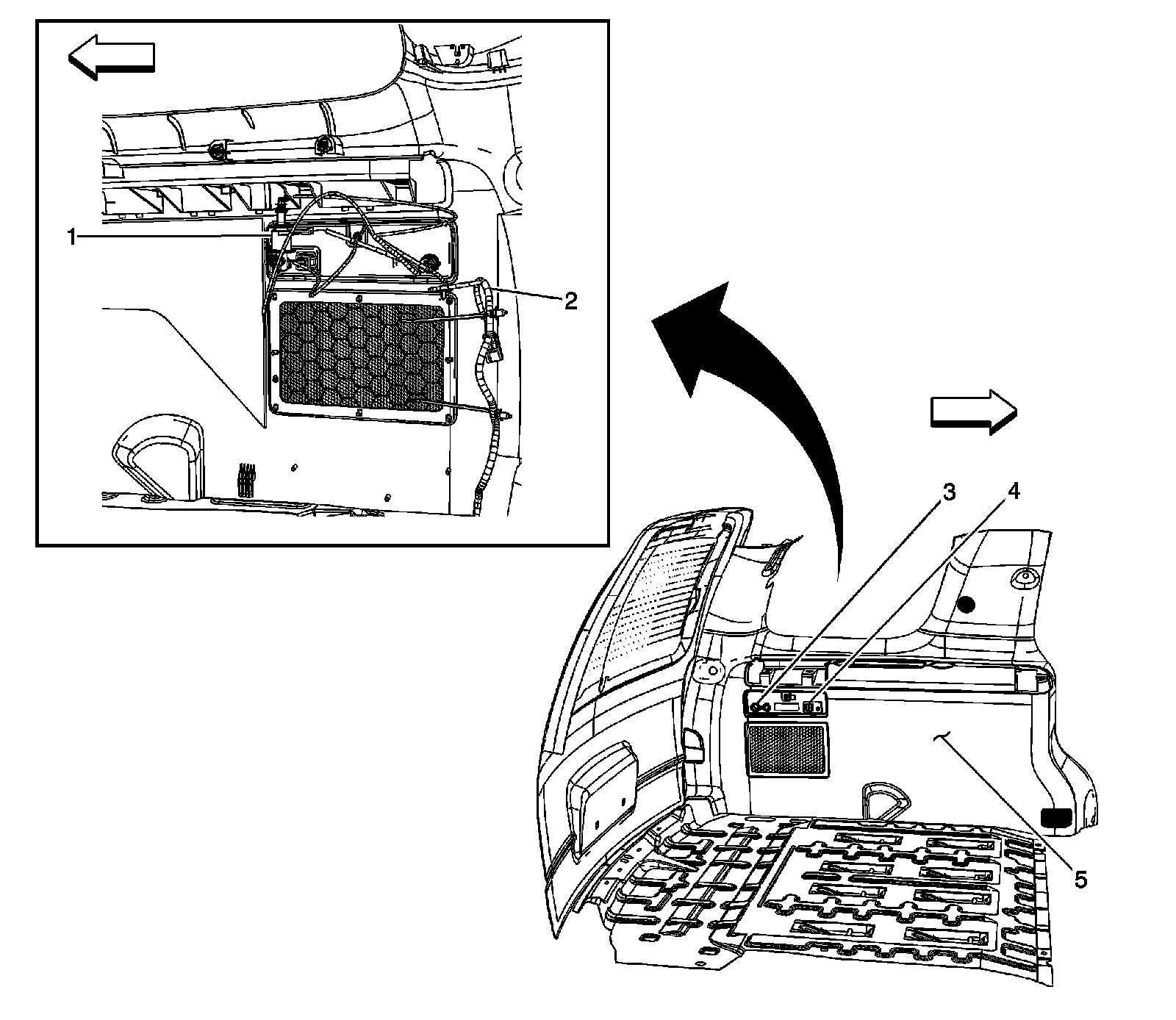

Luggage Compartment/Rear of Vehicle Component ViewsLeft Rear Cargo Area Components 2 of 21 - Automatic Level Control (ALC) Solenoid Valve (G67 without Z10)
2 - ALC Harness (G67)
3 - Accessory Power Outlet - Rear
4 - Inflator Air Switch (G67 without Z10)
5 - Left Rear Cargo Trim Panel
