Automatic Transmission/Transaxle

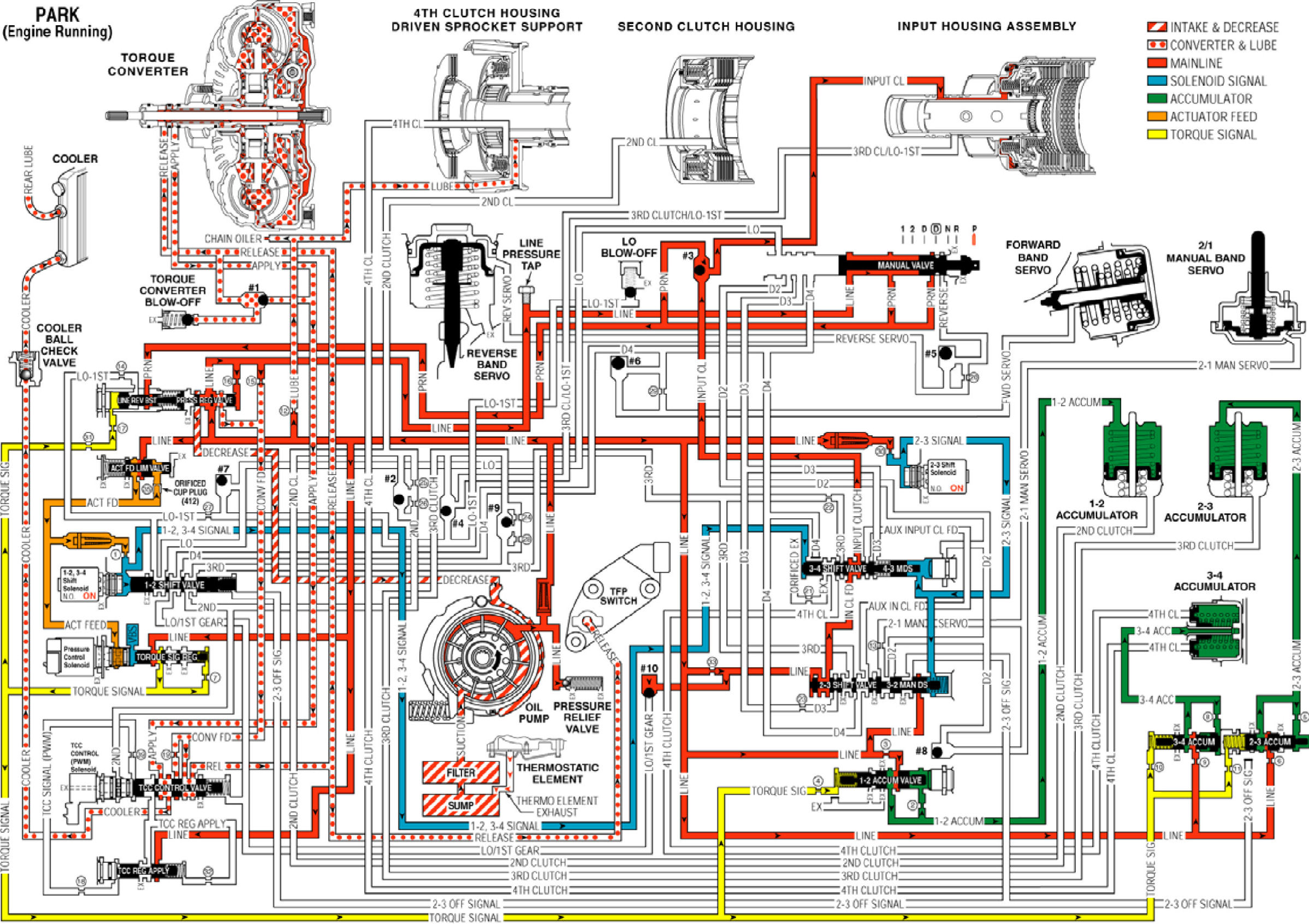

Park or Neutral - Engine Running (Park)

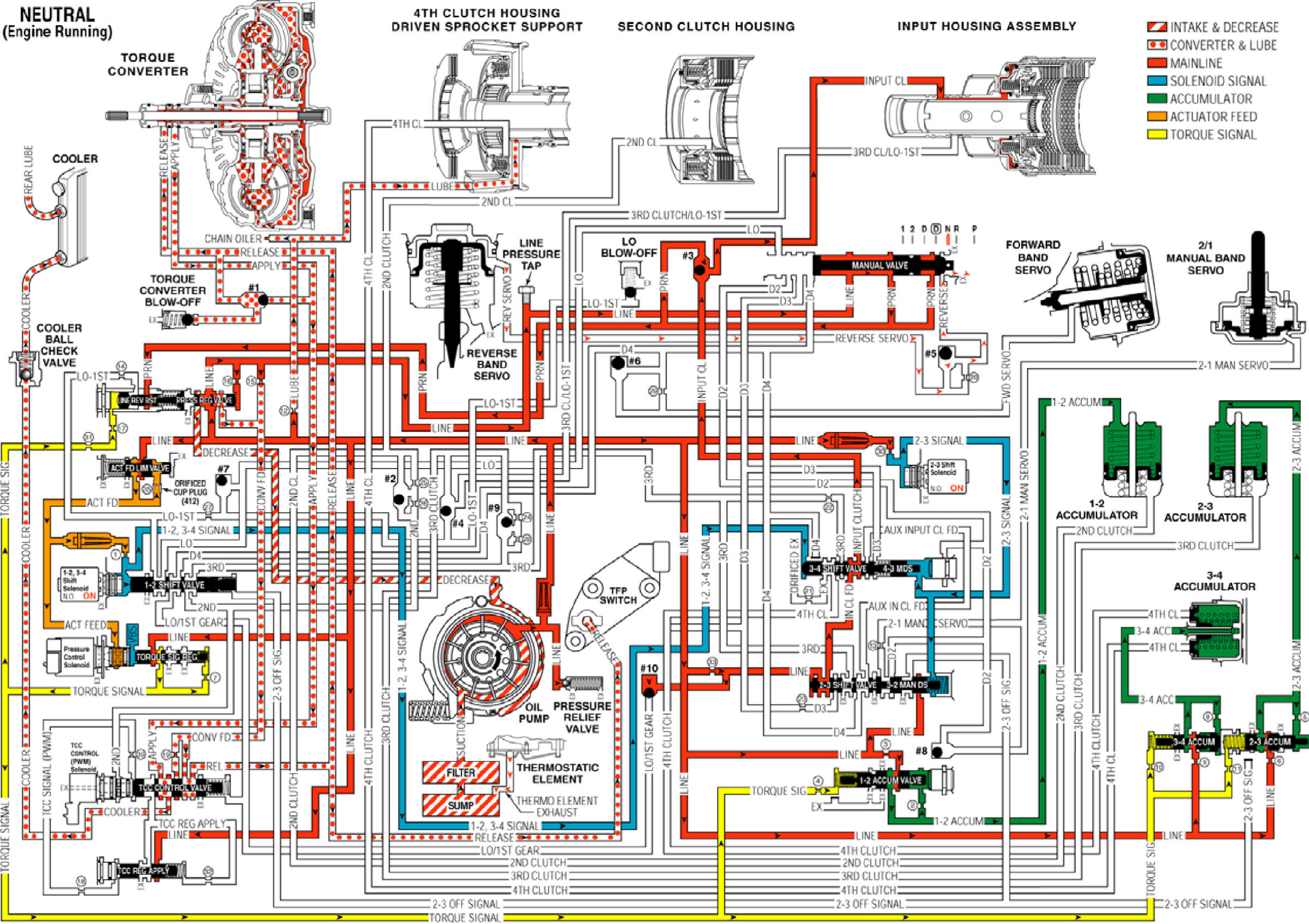

Park or Neutral - Engine Running (Neutral)

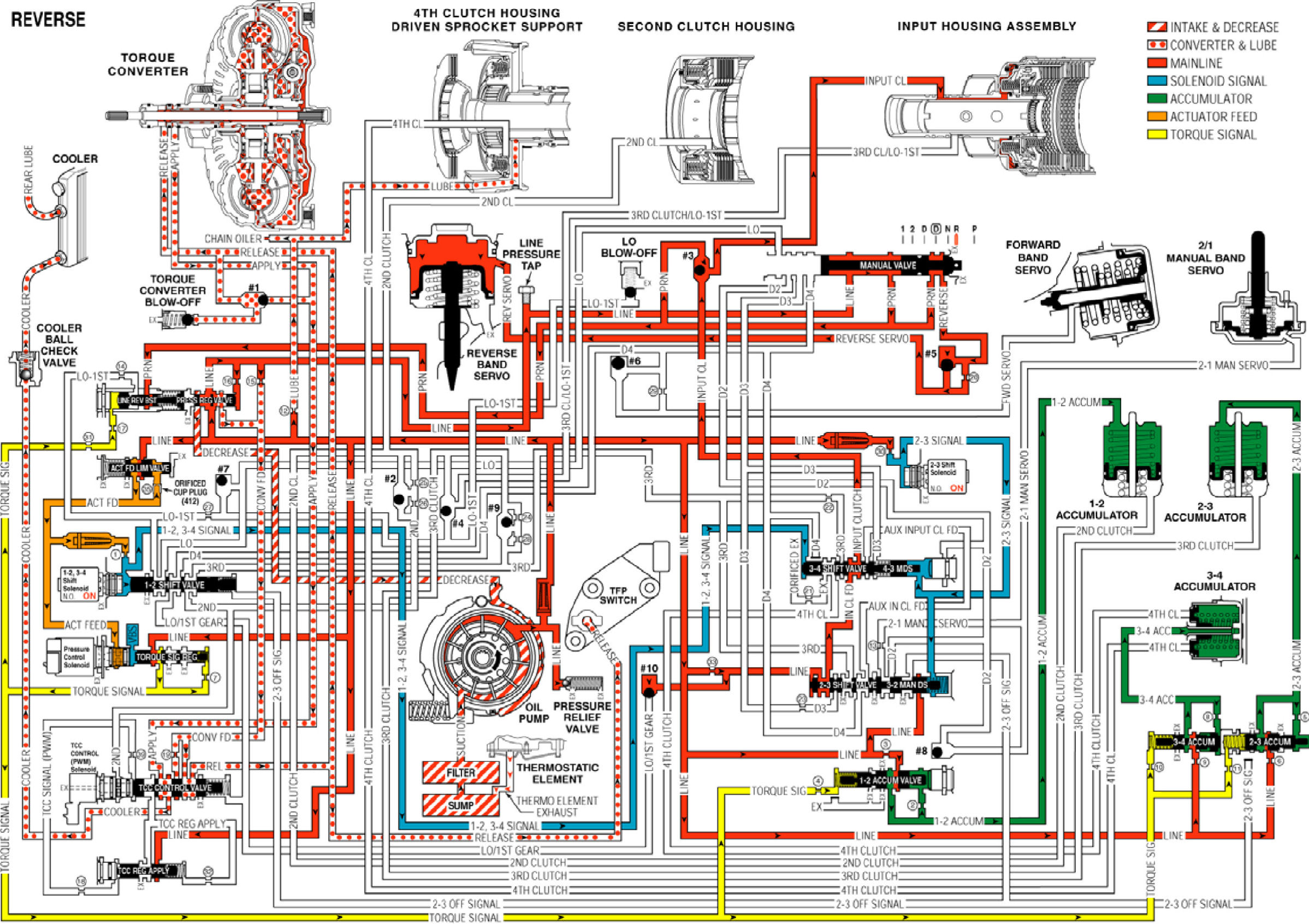

Reverse

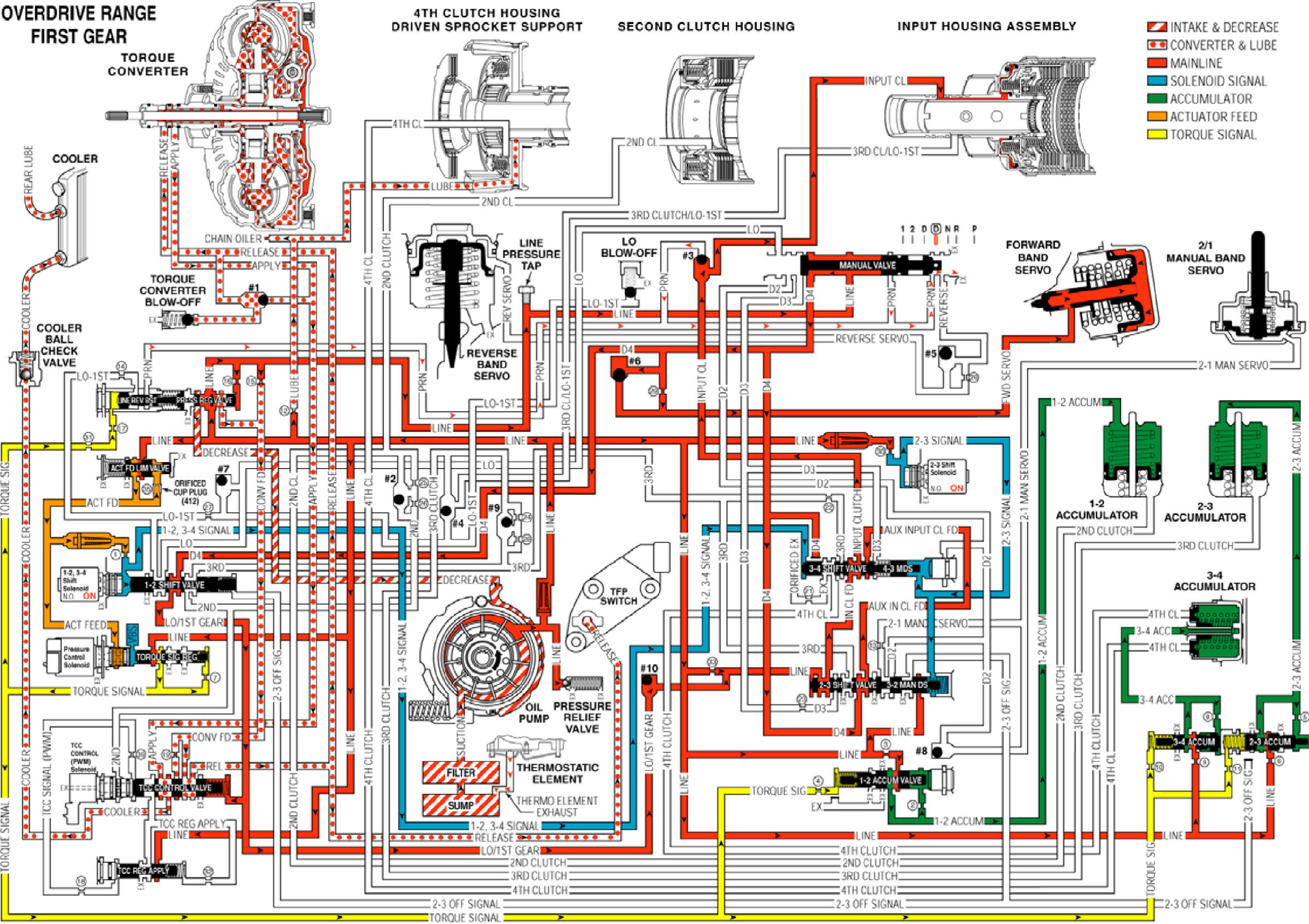

Overdrive Range, First Gear

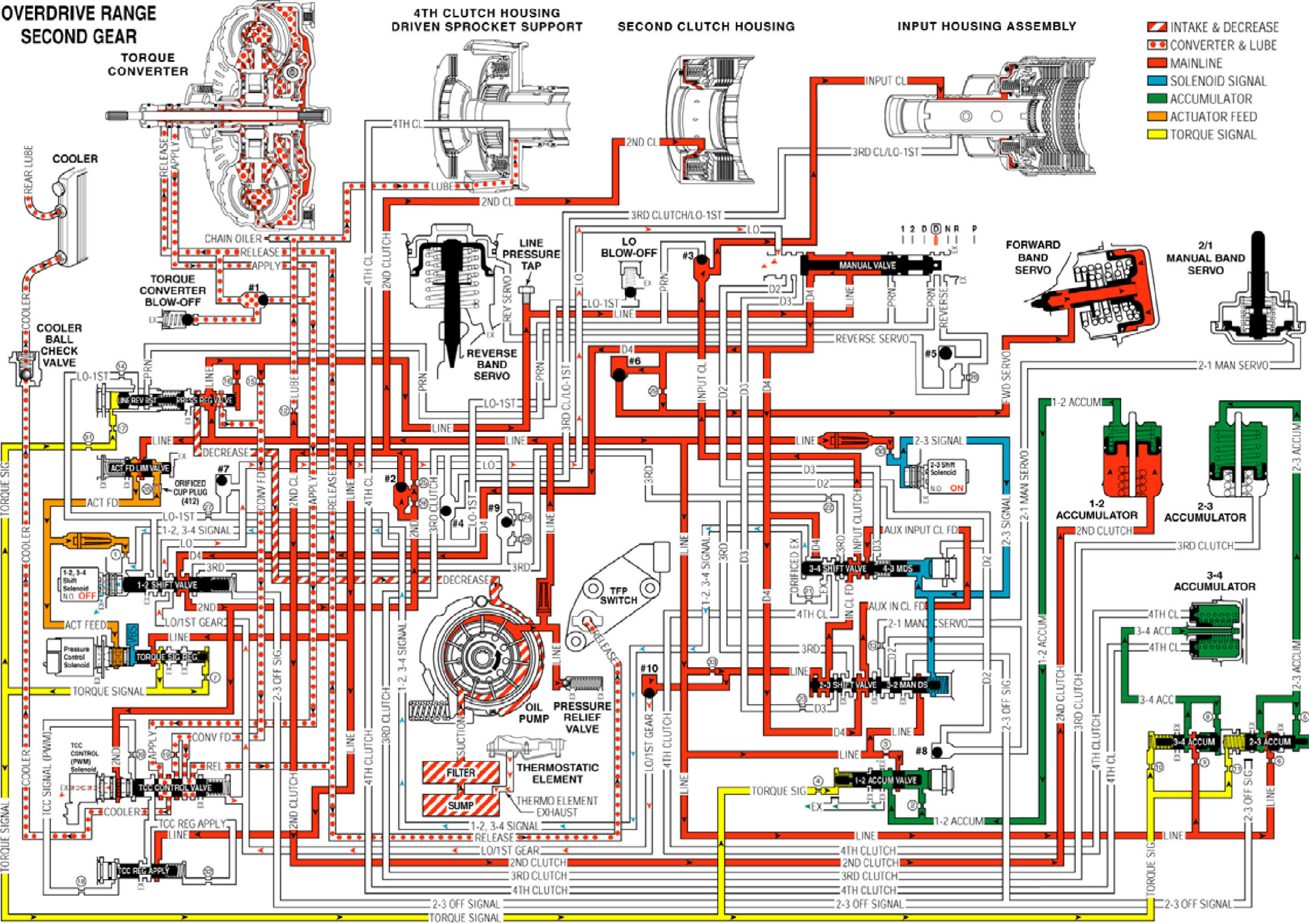

Overdrive Range, Second Gear

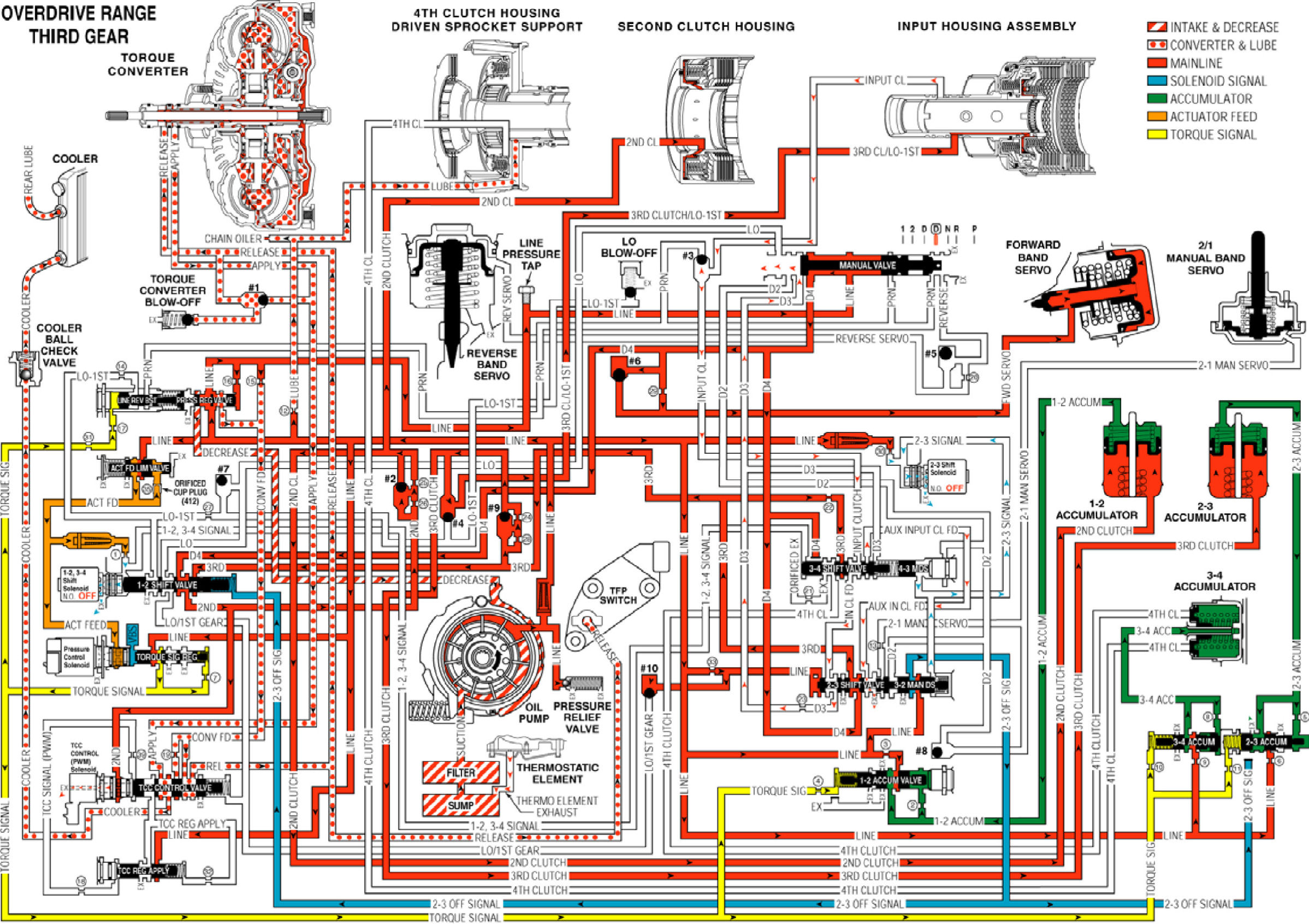

Overdrive Range, Third Gear - Torque Converter Clutch Not Applied

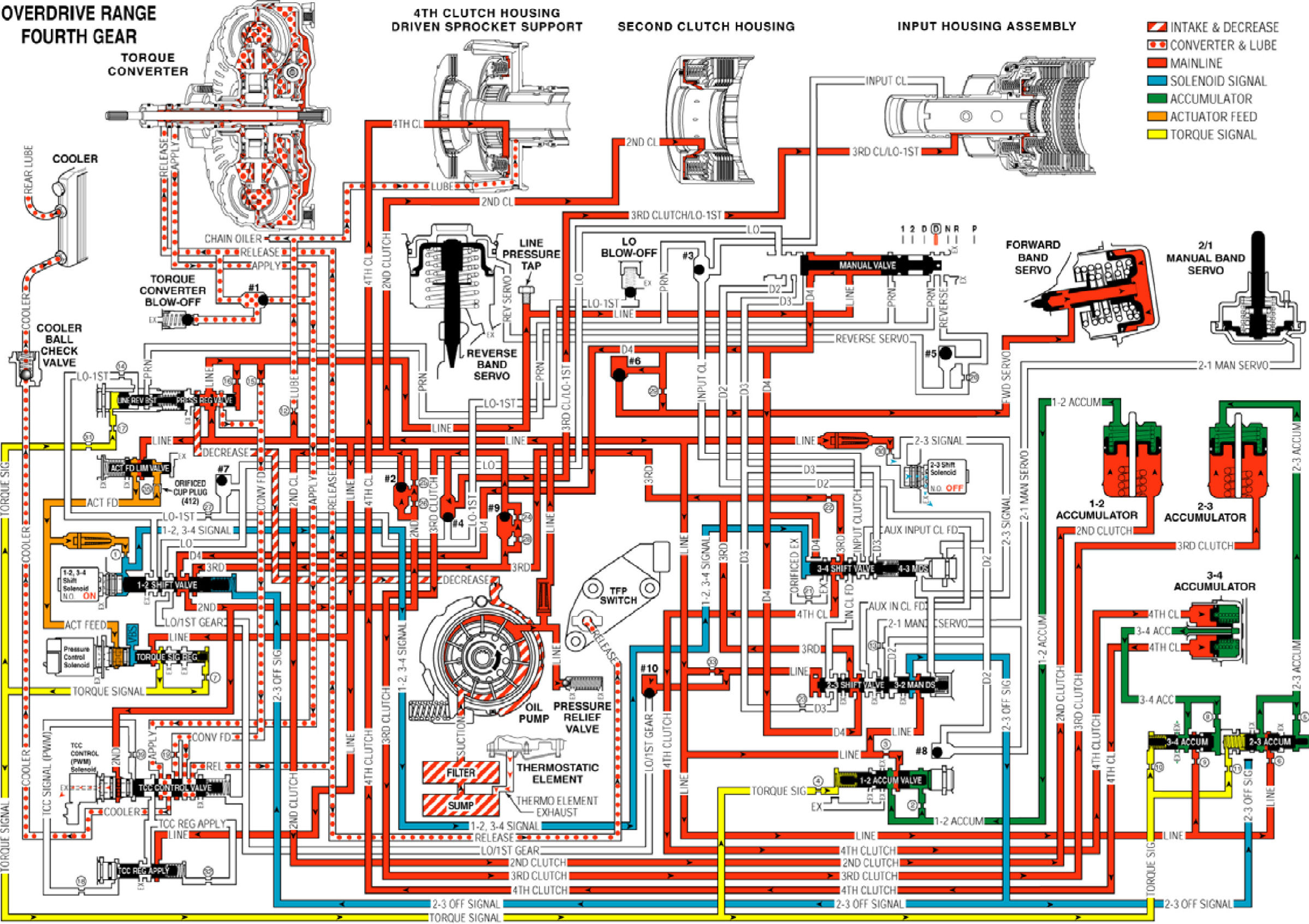

Overdrive Range, Fourth Gear - Torque Converter Clutch Not Applied

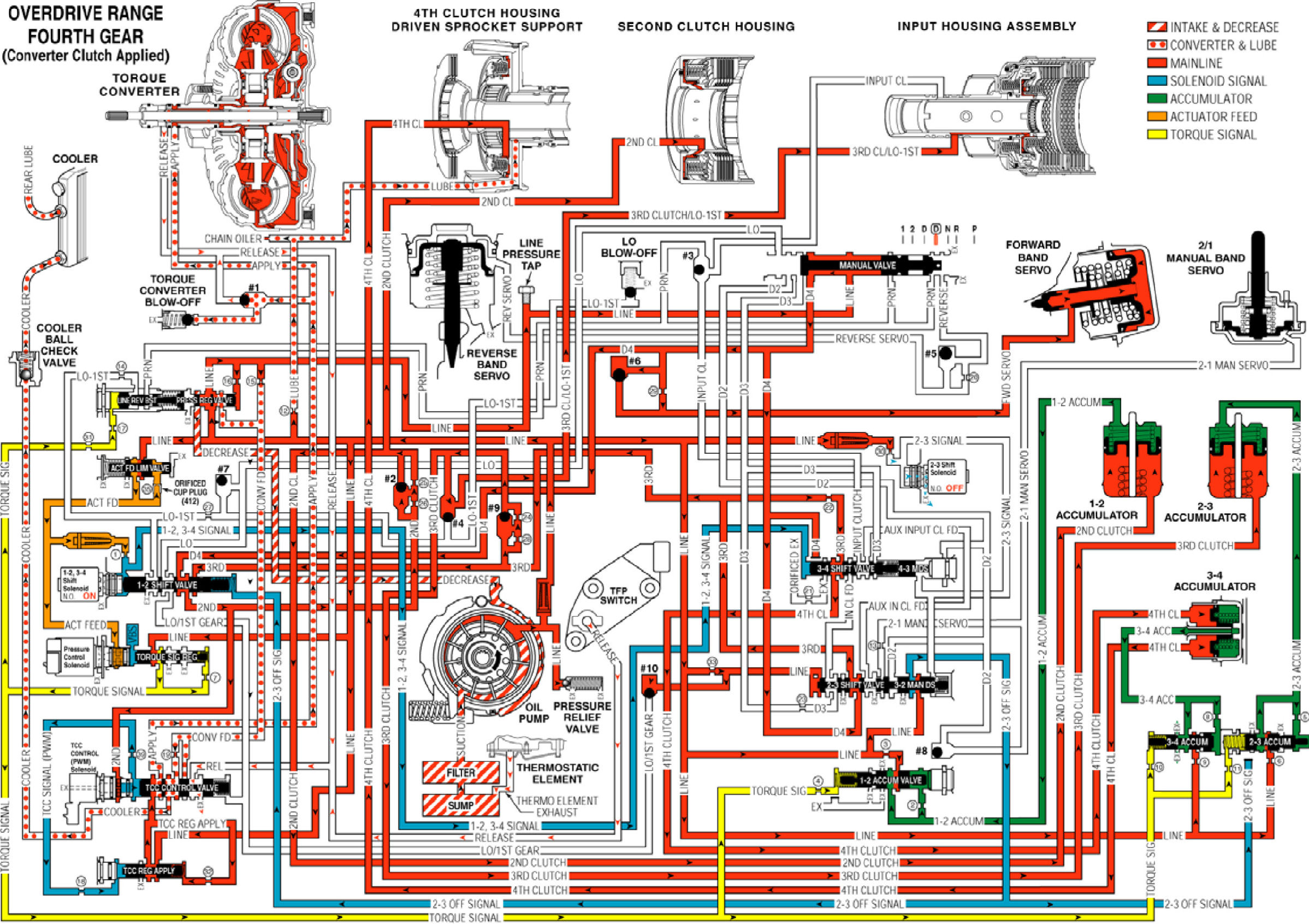

Overdrive Range, Fourth Gear - Torque Converter Clutch Applied

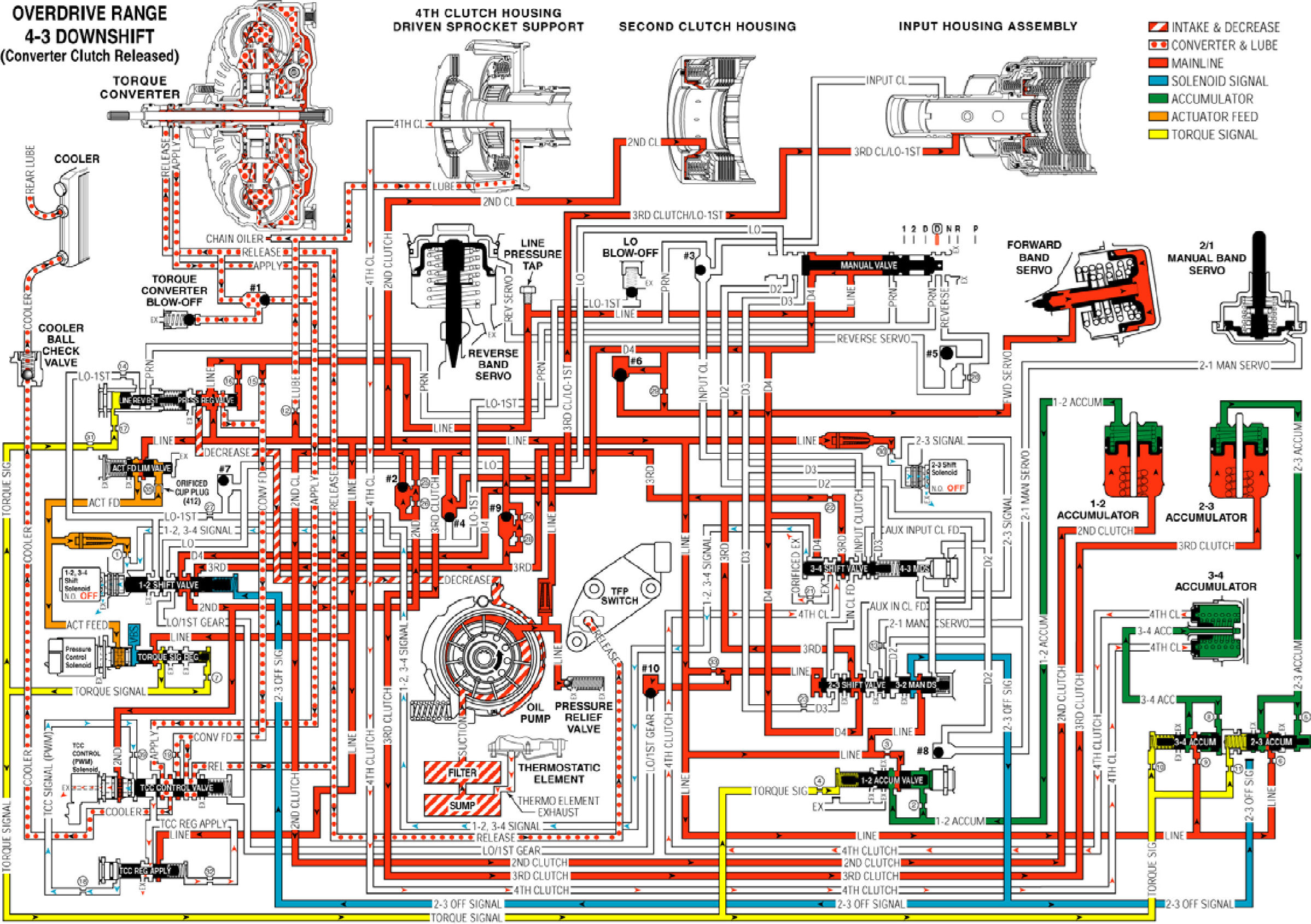

Overdrive Range, 4-3 Downshift - Torque Converter Clutch Not Applied

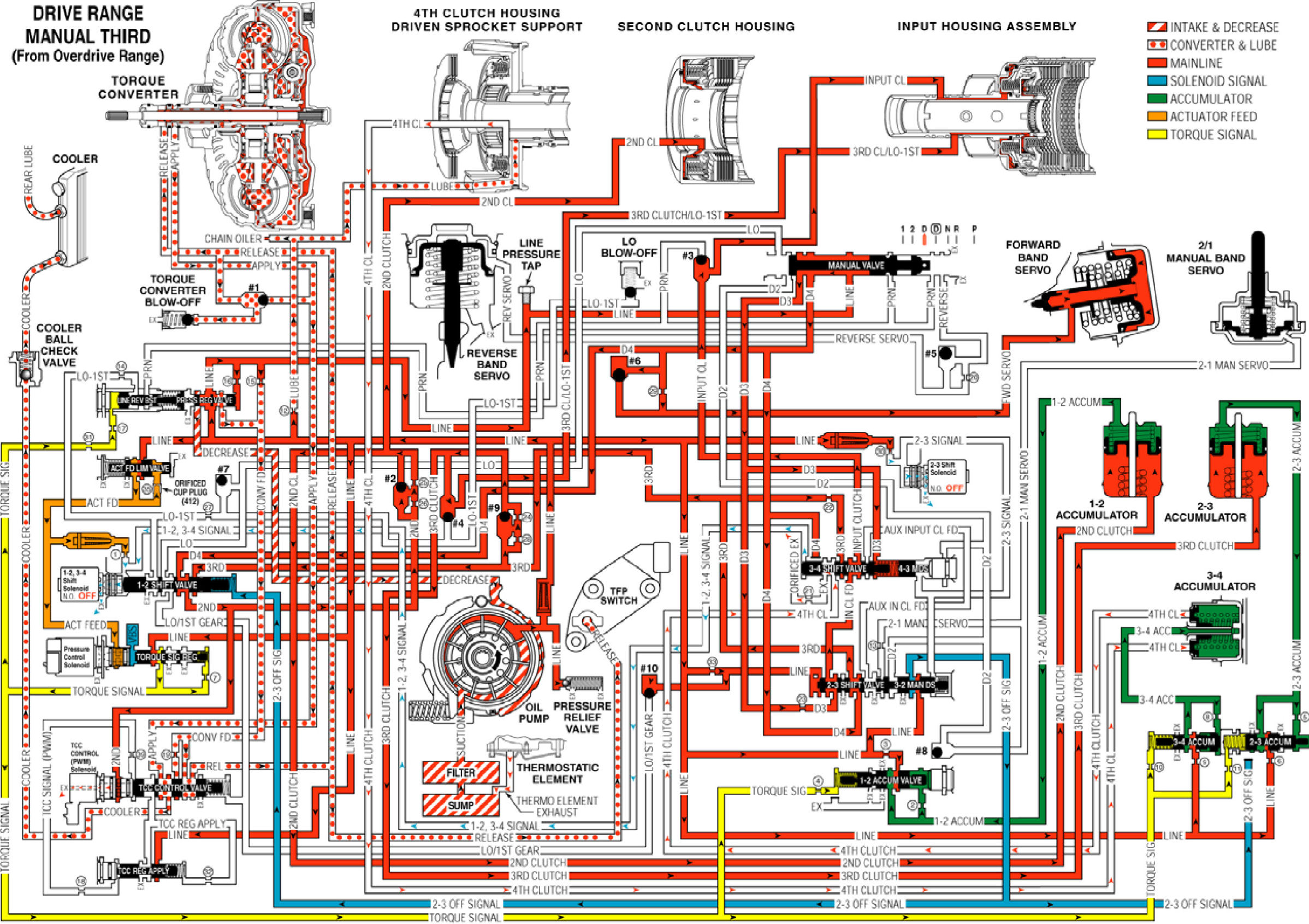

Drive Range, Manual Third (from Overdrive Range)






Drive Range, Manual Second (from Drive, Manual Third)






Drive Range, Manual First (from Drive, Manual Second)
