Front Headliner Components




Passenger Compartment/Roof Component Views

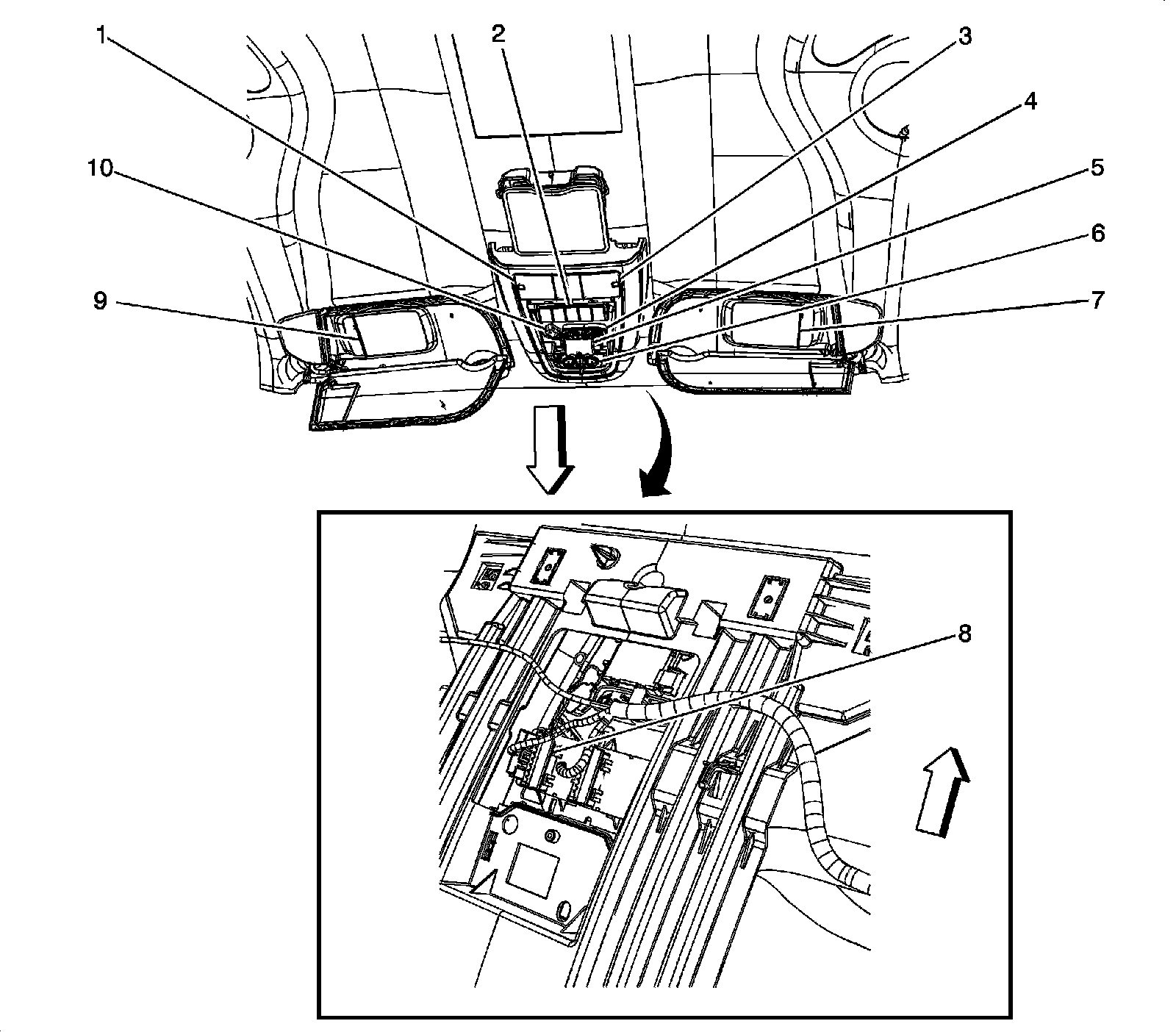

Front Headliner Components




1 - Overhead Console Courtesy/Reading Lamps
2 - Multifunction Switch - Overhead Console
3 - Overhead Console Courtesy/Reading Lamps
4 - OnStar Button Assembly (UE1)
5 - Garage Door Opener (UG1)
6 - Garage Door Opener Buttons (UG1)
7 - Vanity Mirror Lamp - Right (DH6)
8 - Multifunction Switch - Overhead Console (A20)
9 - Vanity Mirror Lamp - Left (DH6)
10 - Cellular Telephone Microphone (UE1)
