Left Rear Quater Panel Components

Passenger Compartment/Roof Component Views

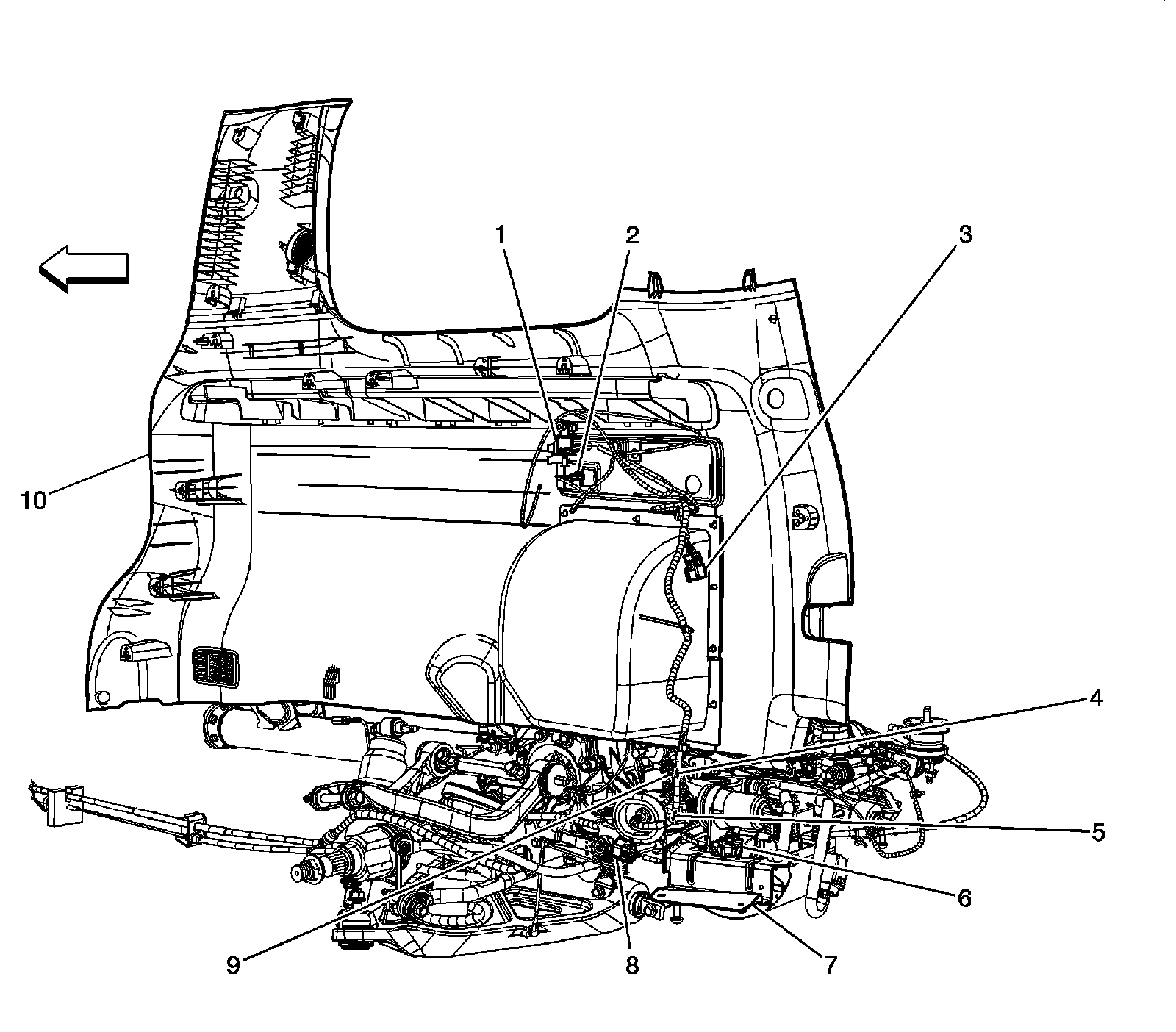

Left Rear Quater Panel Components

1 - Automatic Level Control (ALC) Solenoid Valve (G67 without Z10)
2 - Inflator Air Switch (G67 without Z10)
3 - X405 (G67)
4 - J431 (G67)
5 - J433 (G67)
6 - Automatic Level Control (ALC) Compressor Connector (G67)
7 - Automatic Level Control (ALC) Compressor (G67)
8 - Automatic Level Control (ALC) Sensor (G67)
9 - X409 (G67)
10 - Left Rear Cargo Trim Panel
