Underhood Fuse Block
Underhood Fuse Block

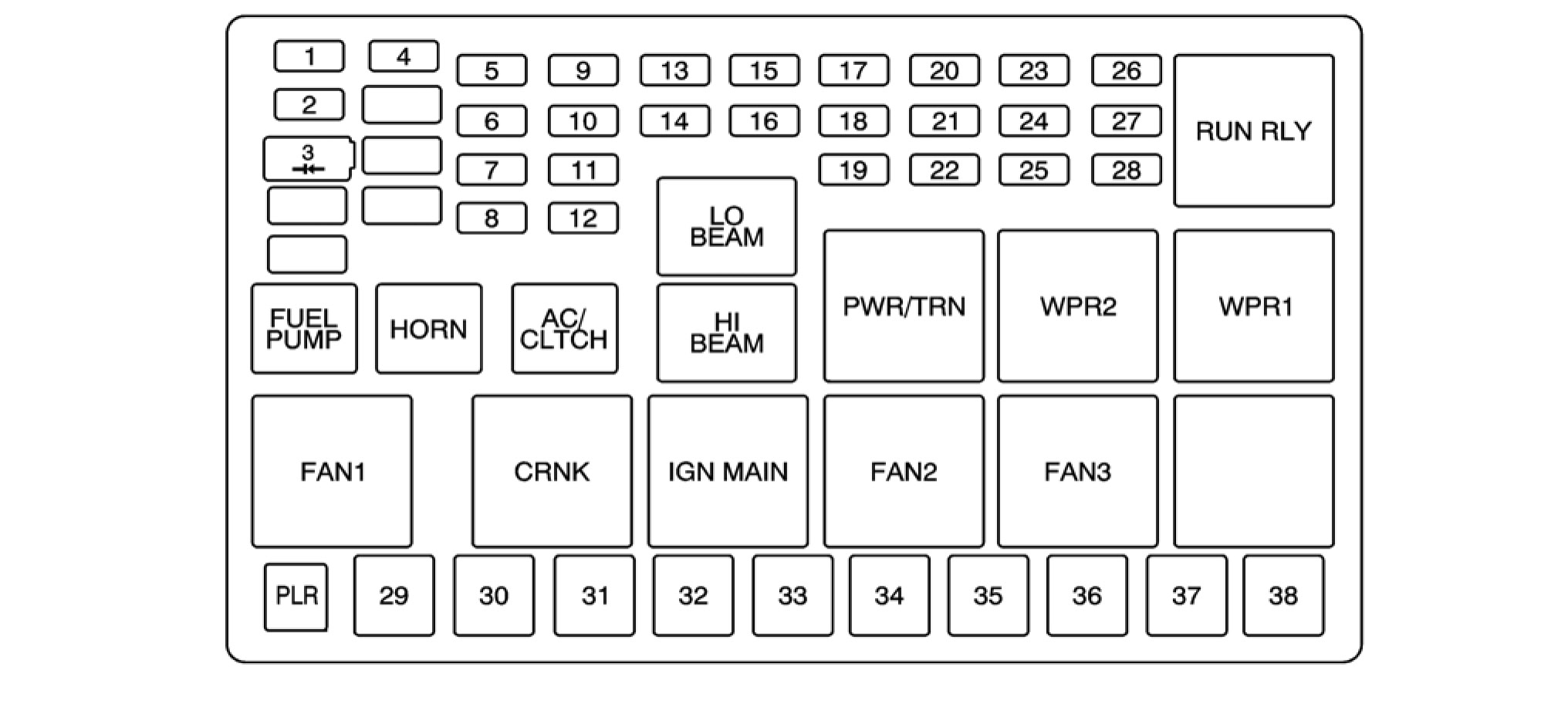

The underhood fuse block is located in the engine compartment.
Notice: Spilling liquid on any electrical component on the vehicle may damage it. Always keep the cover on any electrical component.

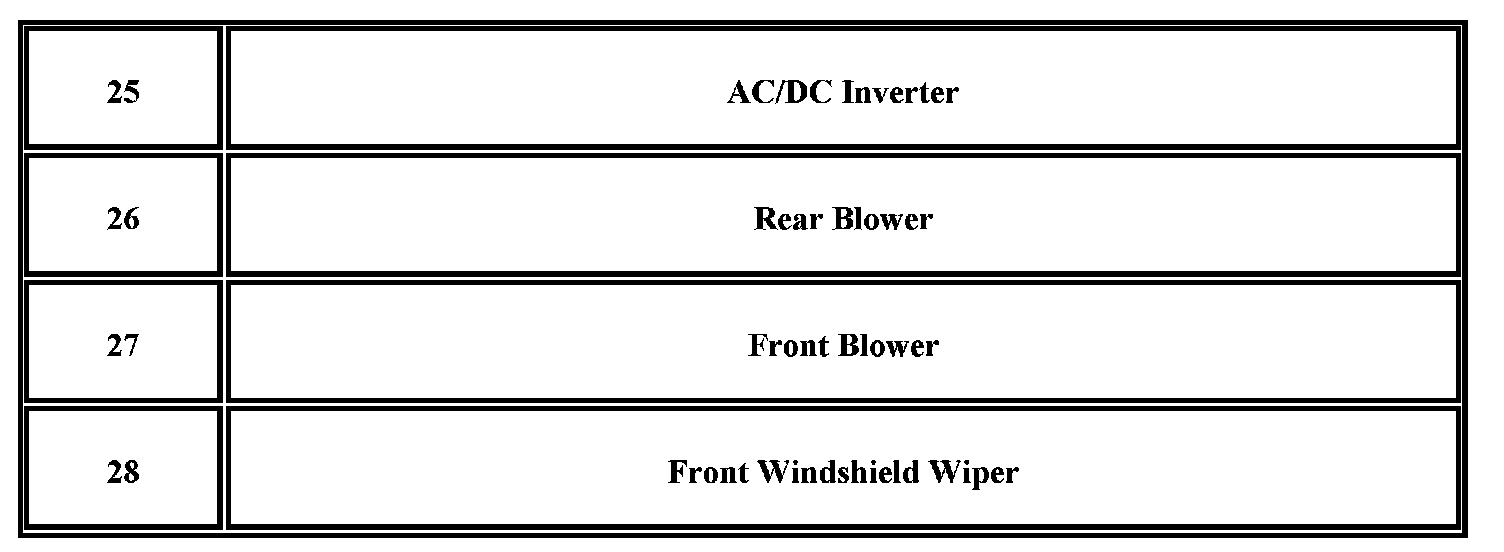

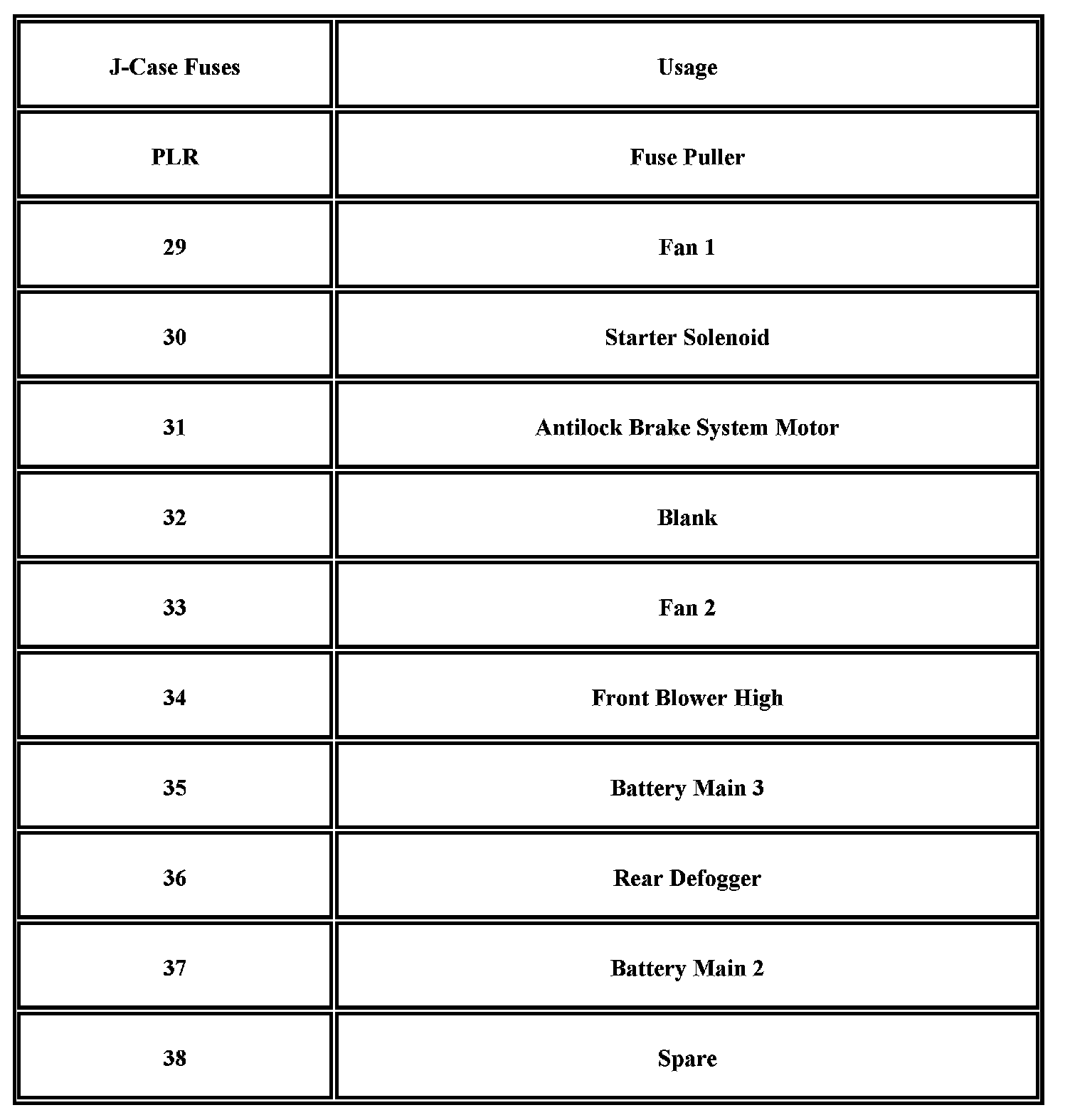

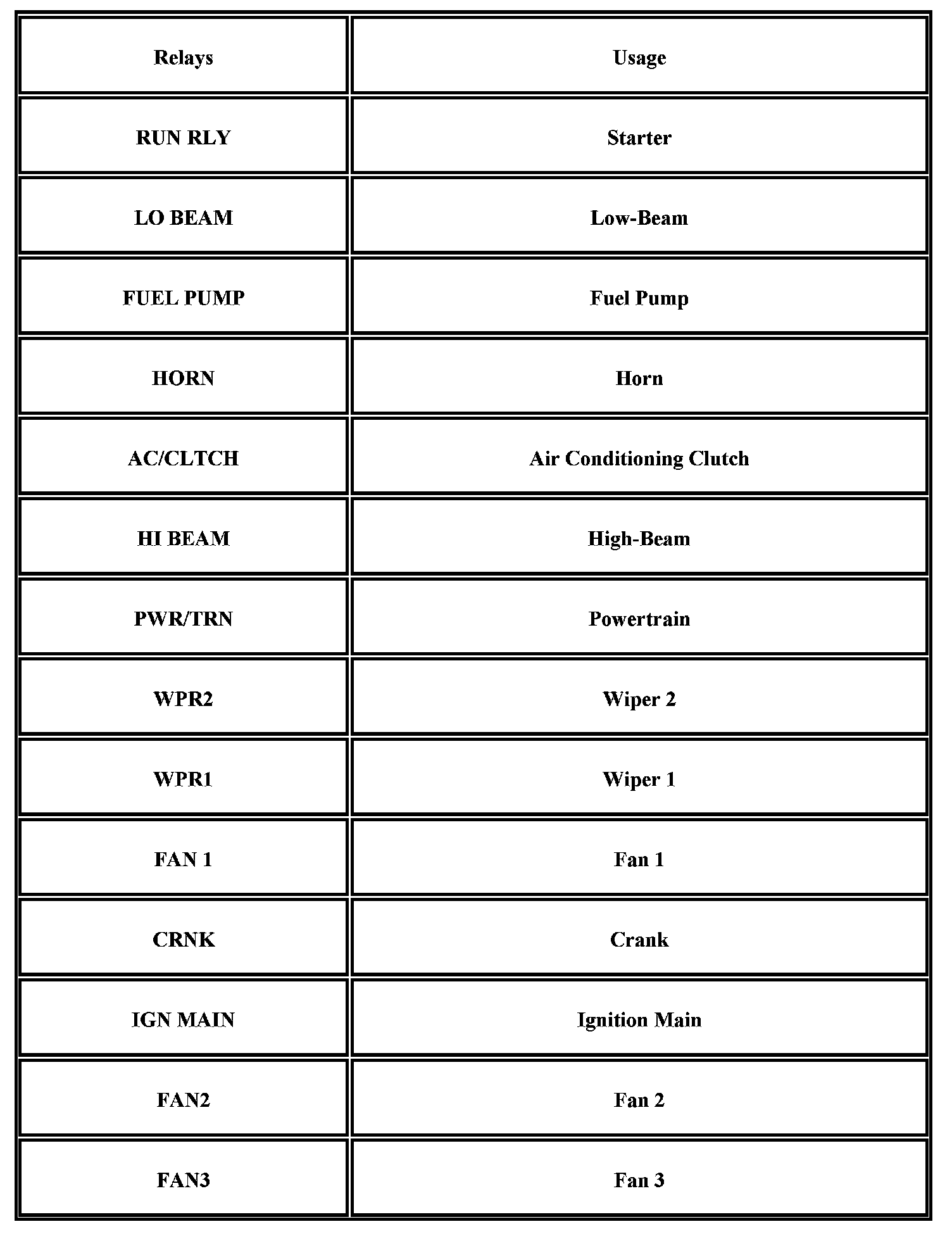

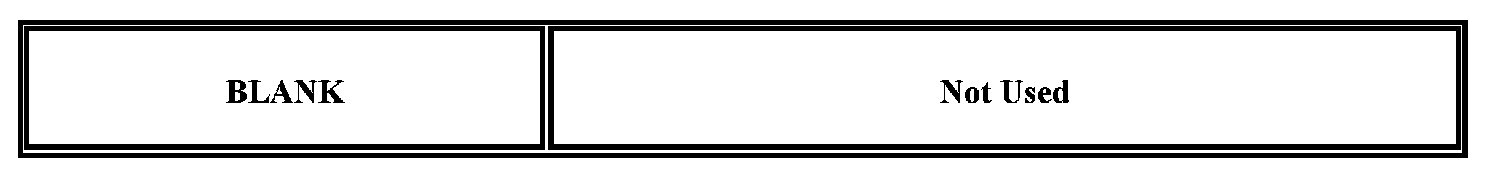

Your vehicle may not have all the fuses listed.
