Rear Compartment Fuse Block - Owners Manual



REAR COMPARTMENT FUSE BLOCK

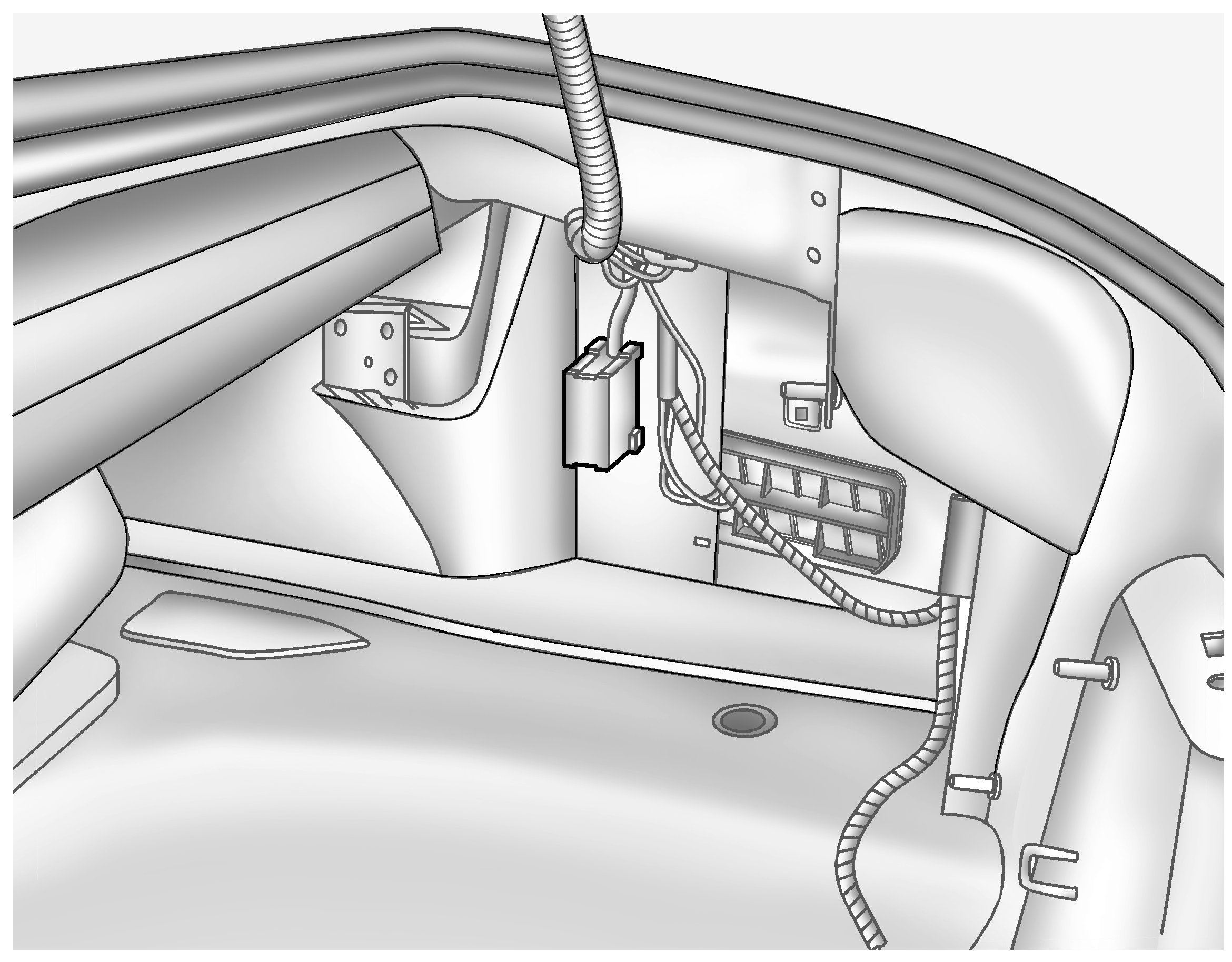

The rear compartment fuse block is located on the right side of the trunk behind a cover. Remove the six convenience net retainers, the rear sill plate, and the two passenger side trim retainers, then swing the trim out of the way.

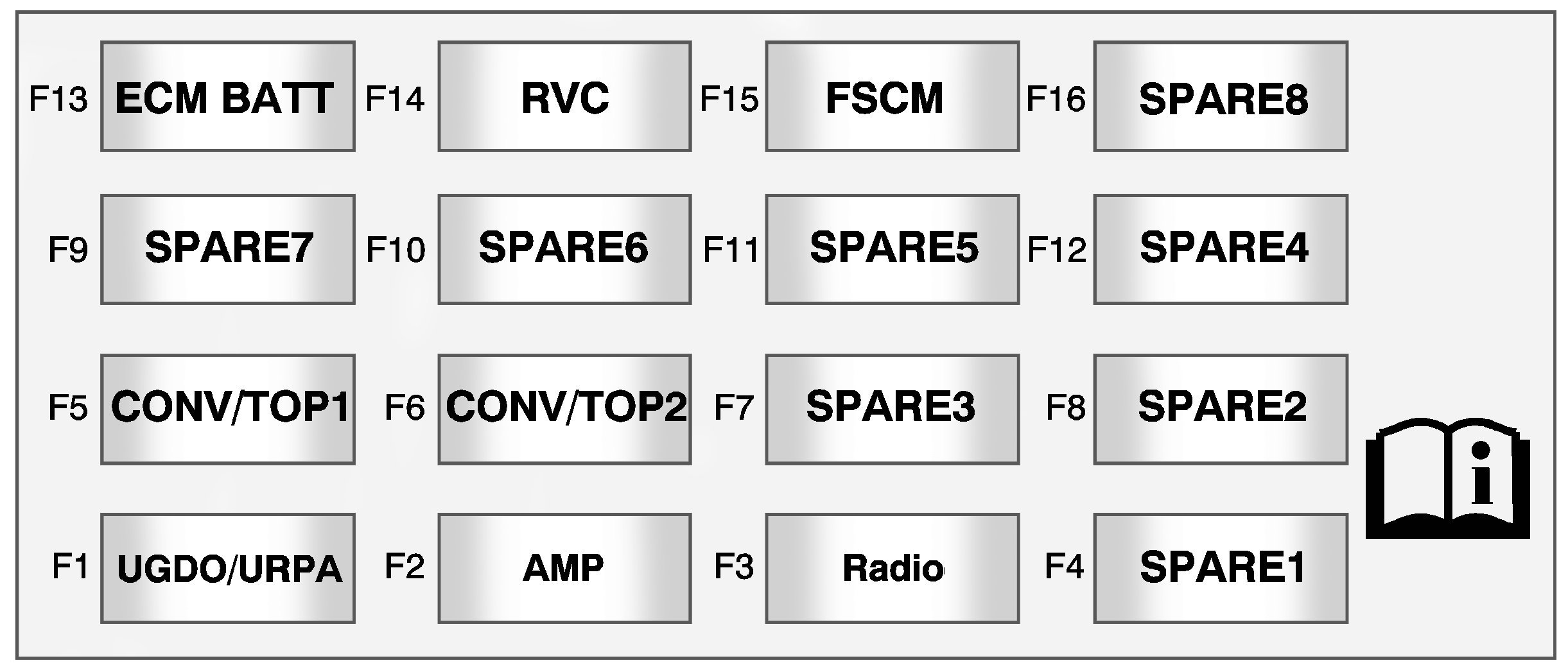

Fuses Usage
F1 Universal Garage Door Opener/Ultra-sonic Reverse Parking Aid
F2 Amplifier
F3 Radio
F4 Spare
F5 Convertible Top 1
F6 Convertible Top 2
F7 Spare
F8 Spare
F9 Spare
F10 Spare
F11 Spare
F12 Spare
F13 Engine Control Module/Battery
F14 Regulated Voltage Control
F15 Fuel System Control Module
F16 Spare
