Engine Control Module

Component Connector End Views

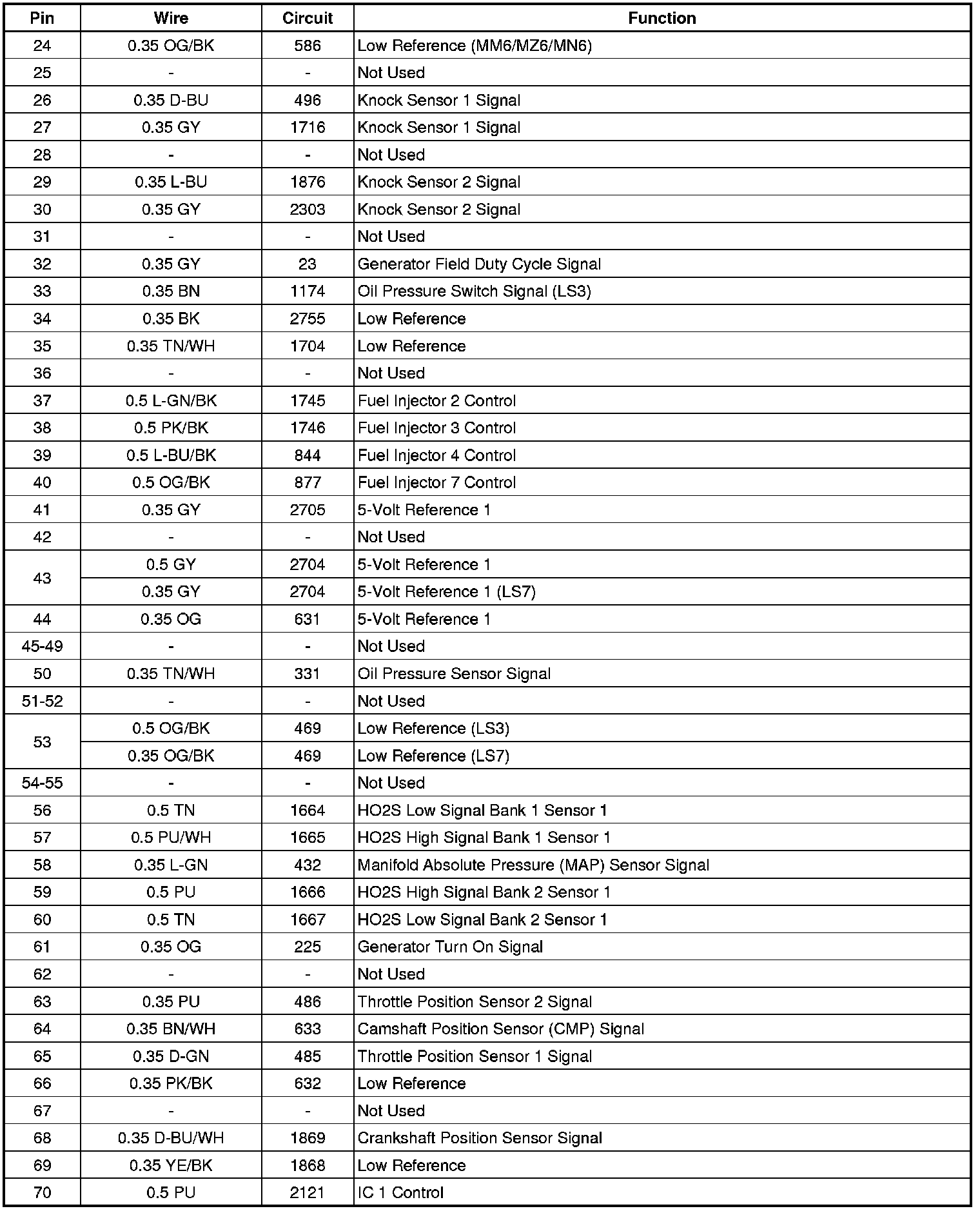

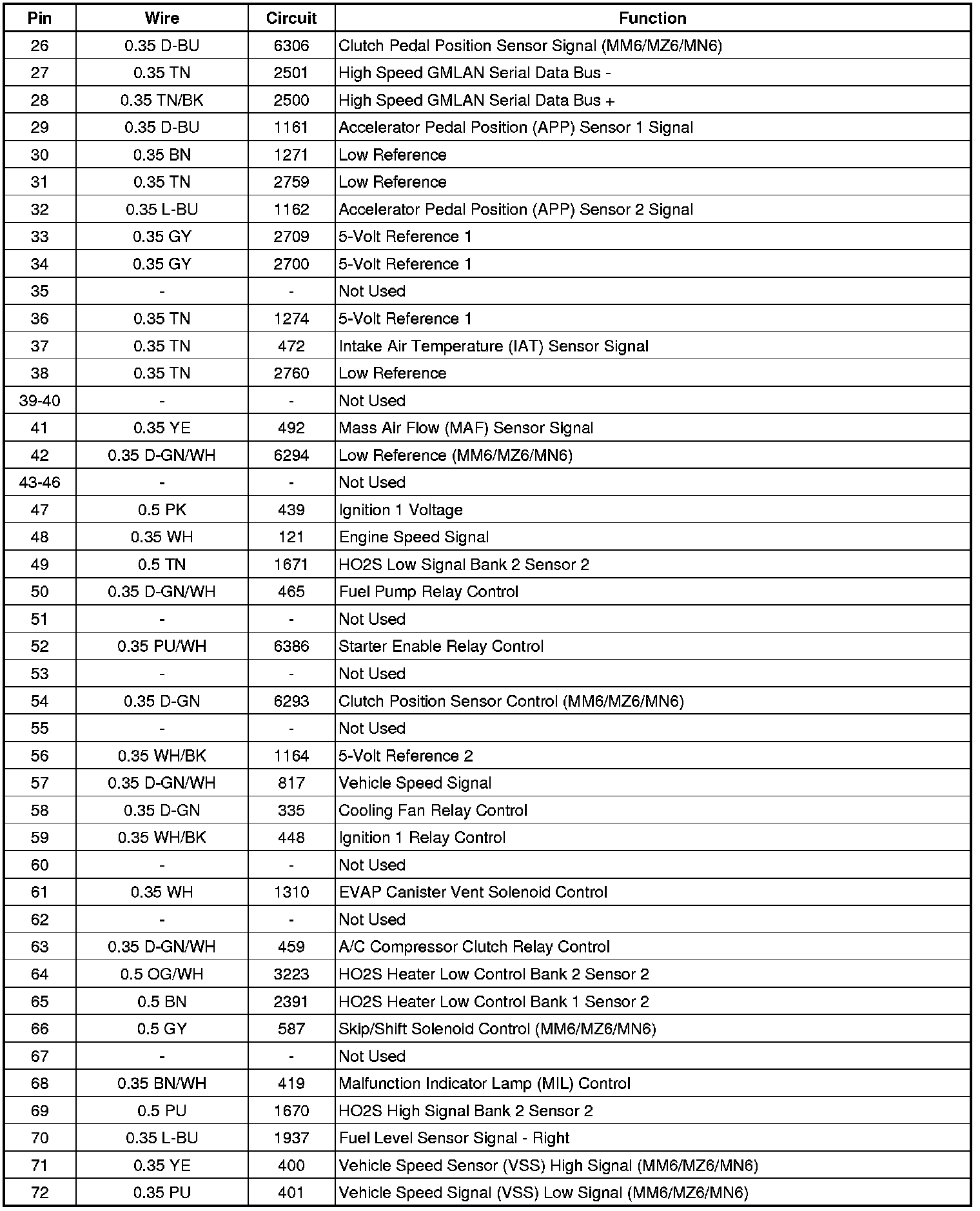

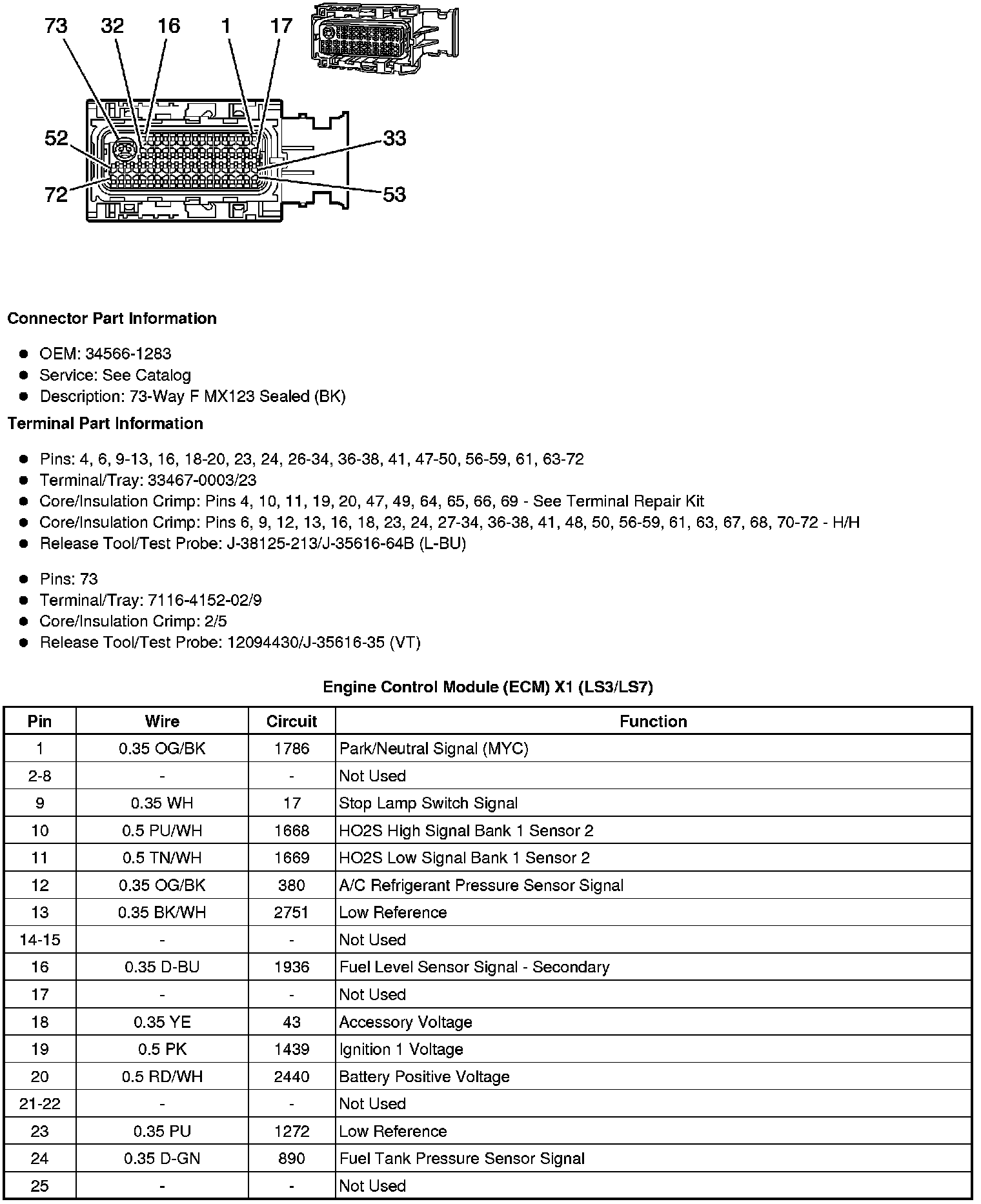

Engine Control Module (ECM) X1 (LS3/LS7)

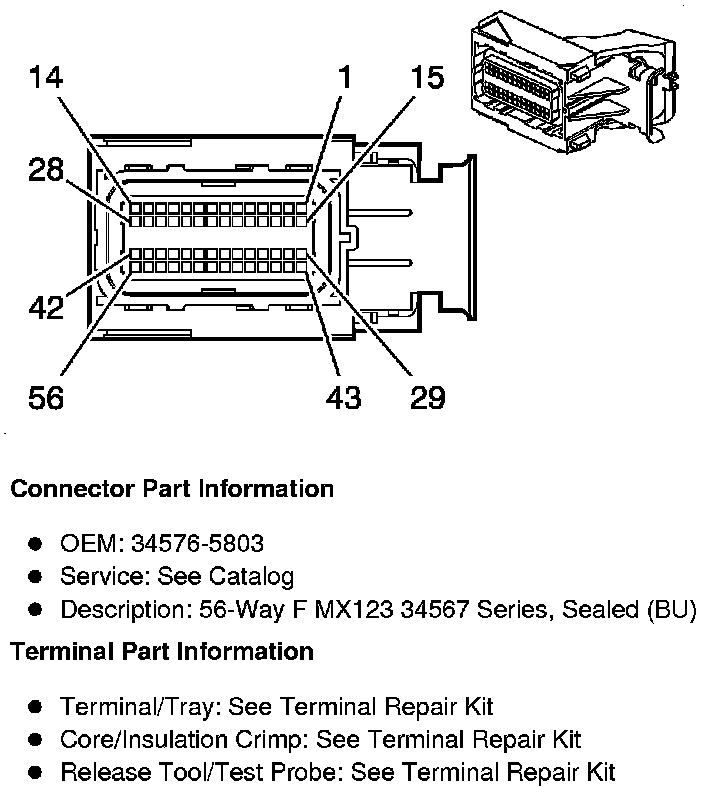

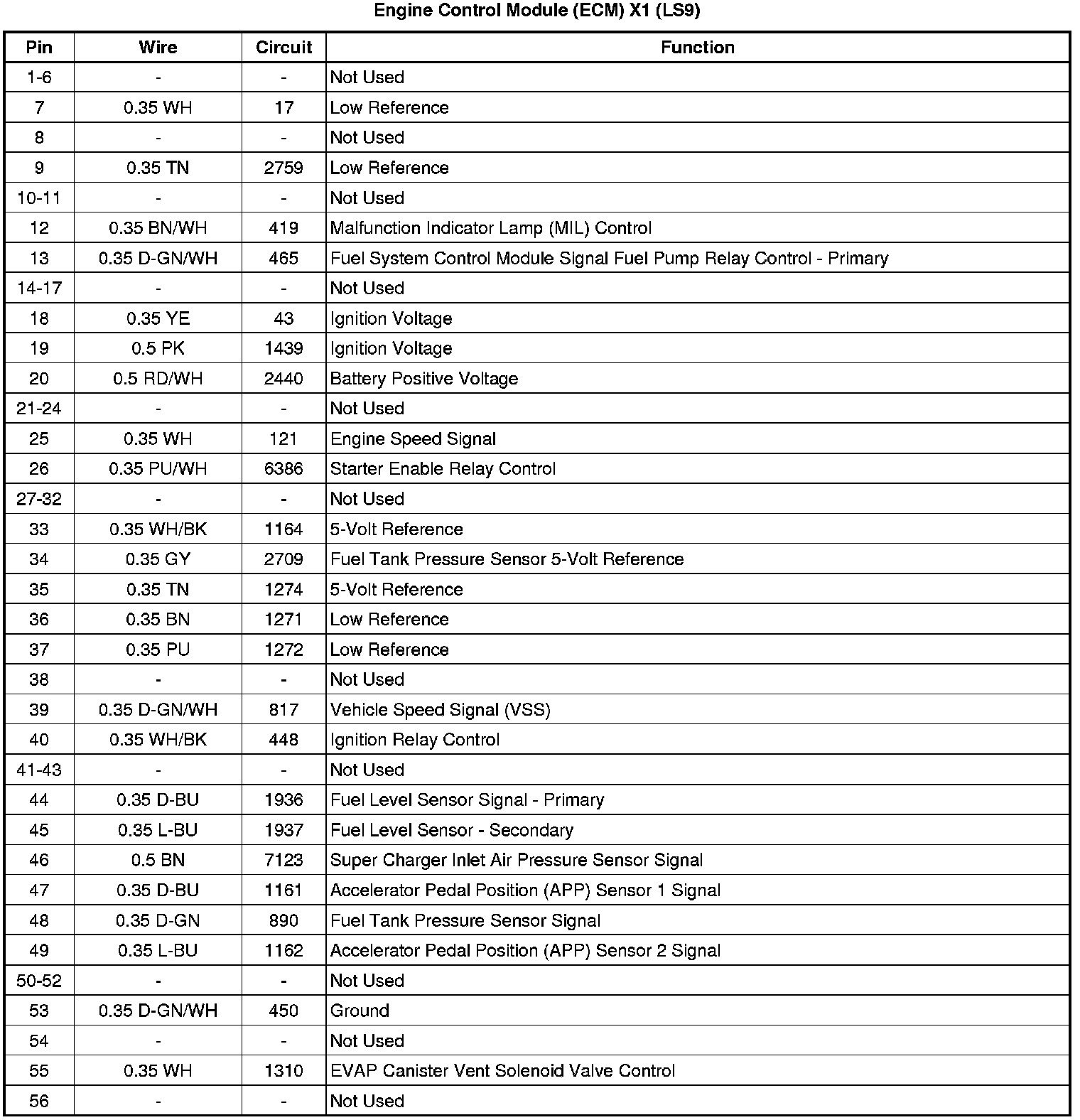

Engine Control Module (ECM) X1 (LS9)

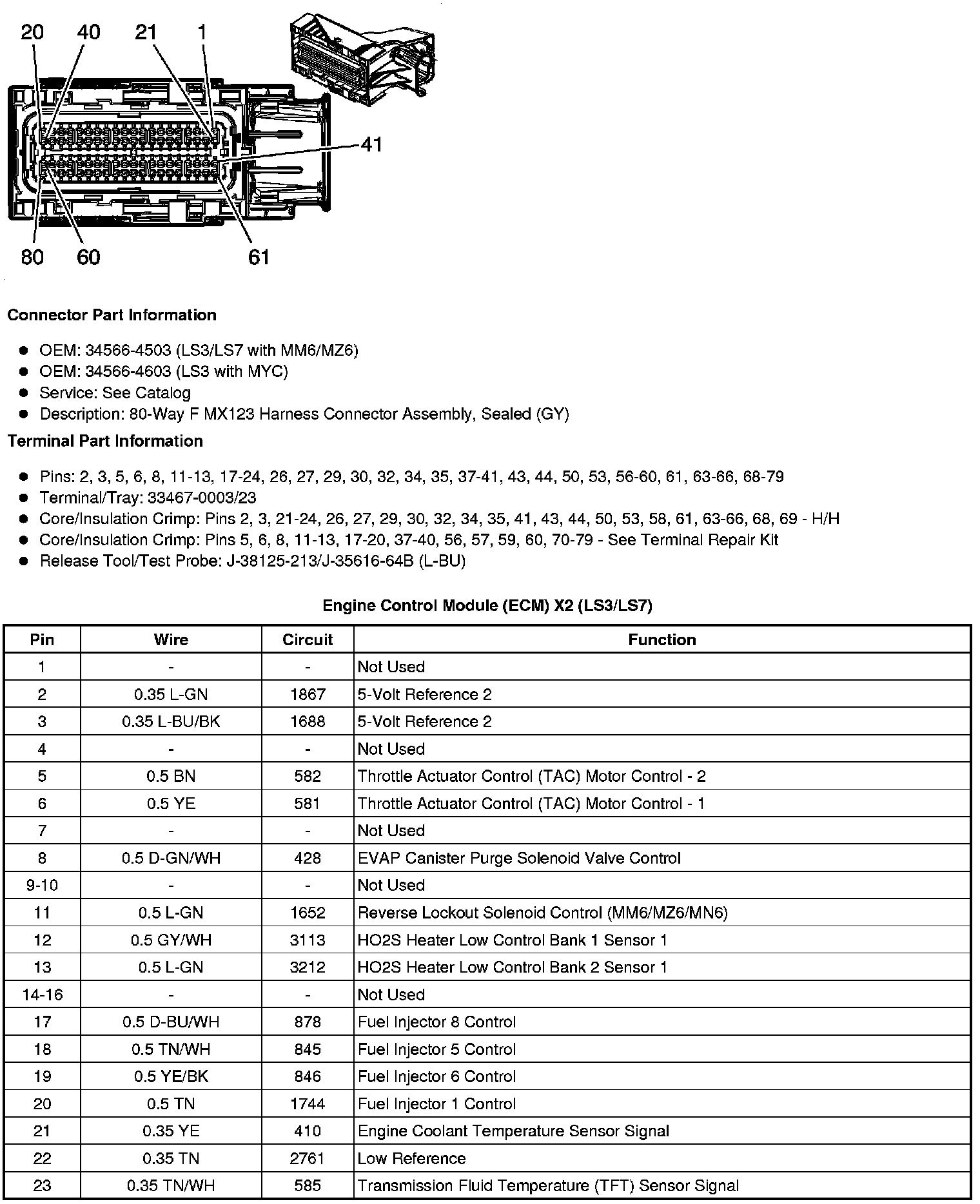

Engine Control Module (ECM) X2 (LS3/LS7)

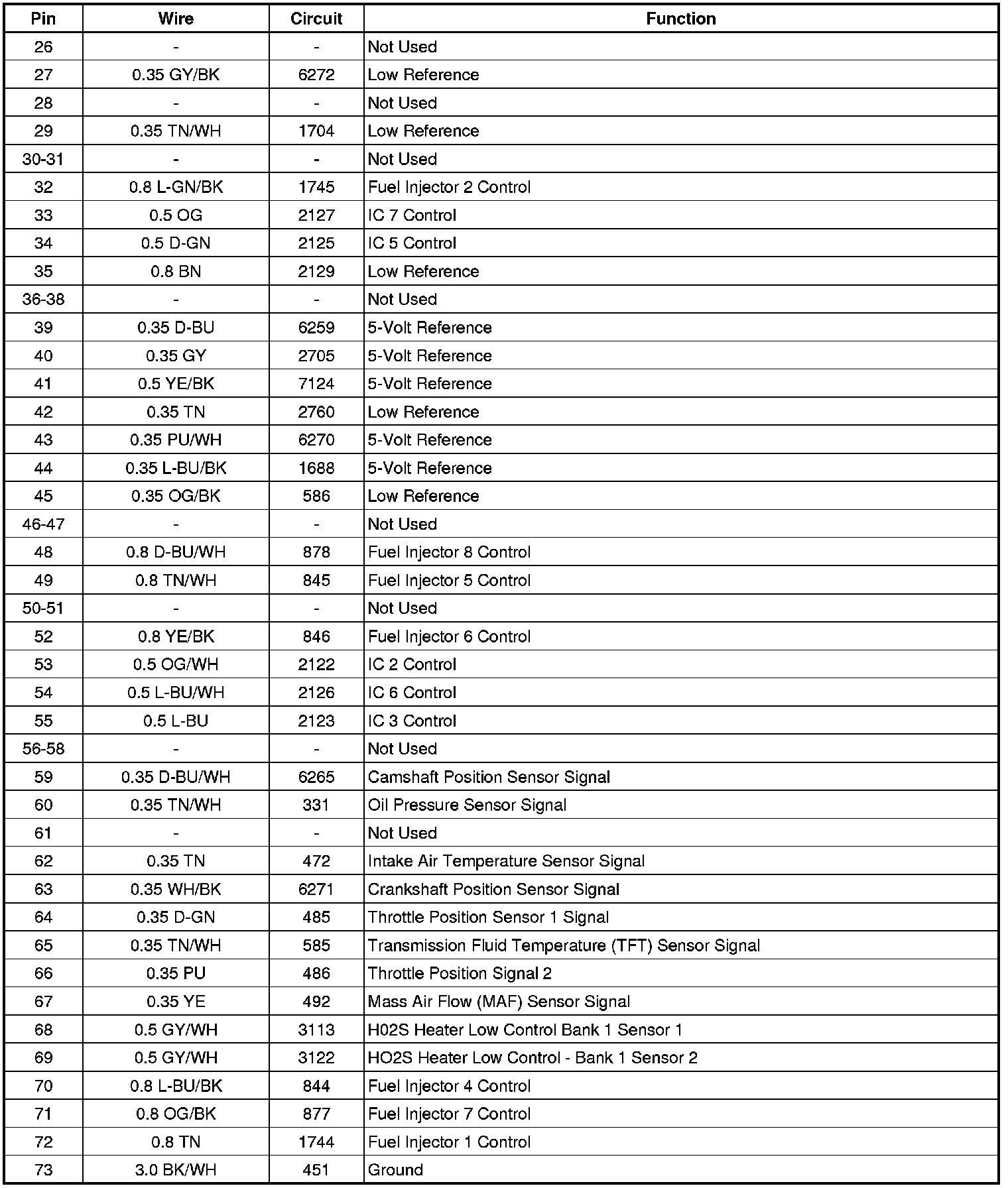

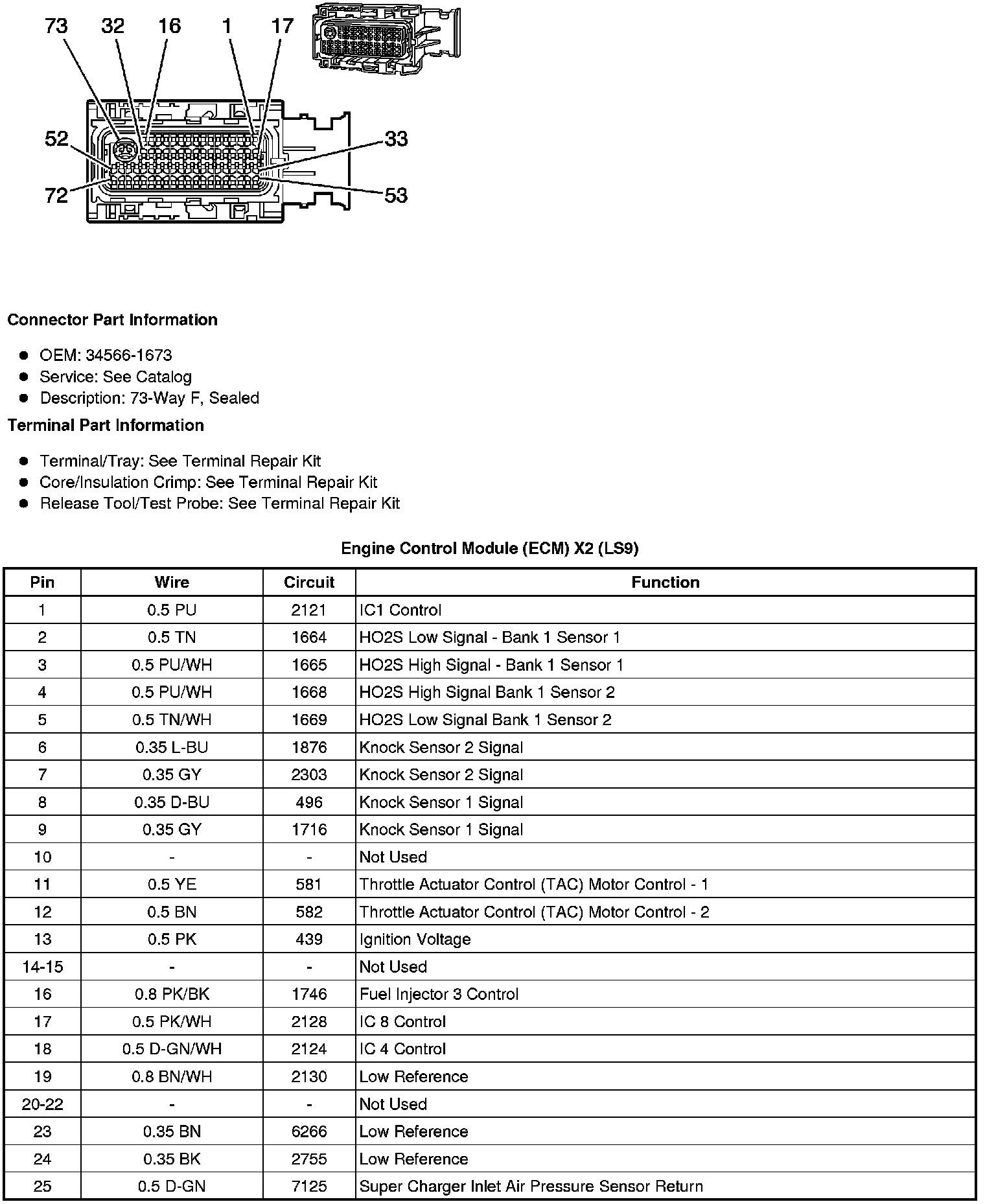

Engine Control Module (ECM) X2 (LS9)

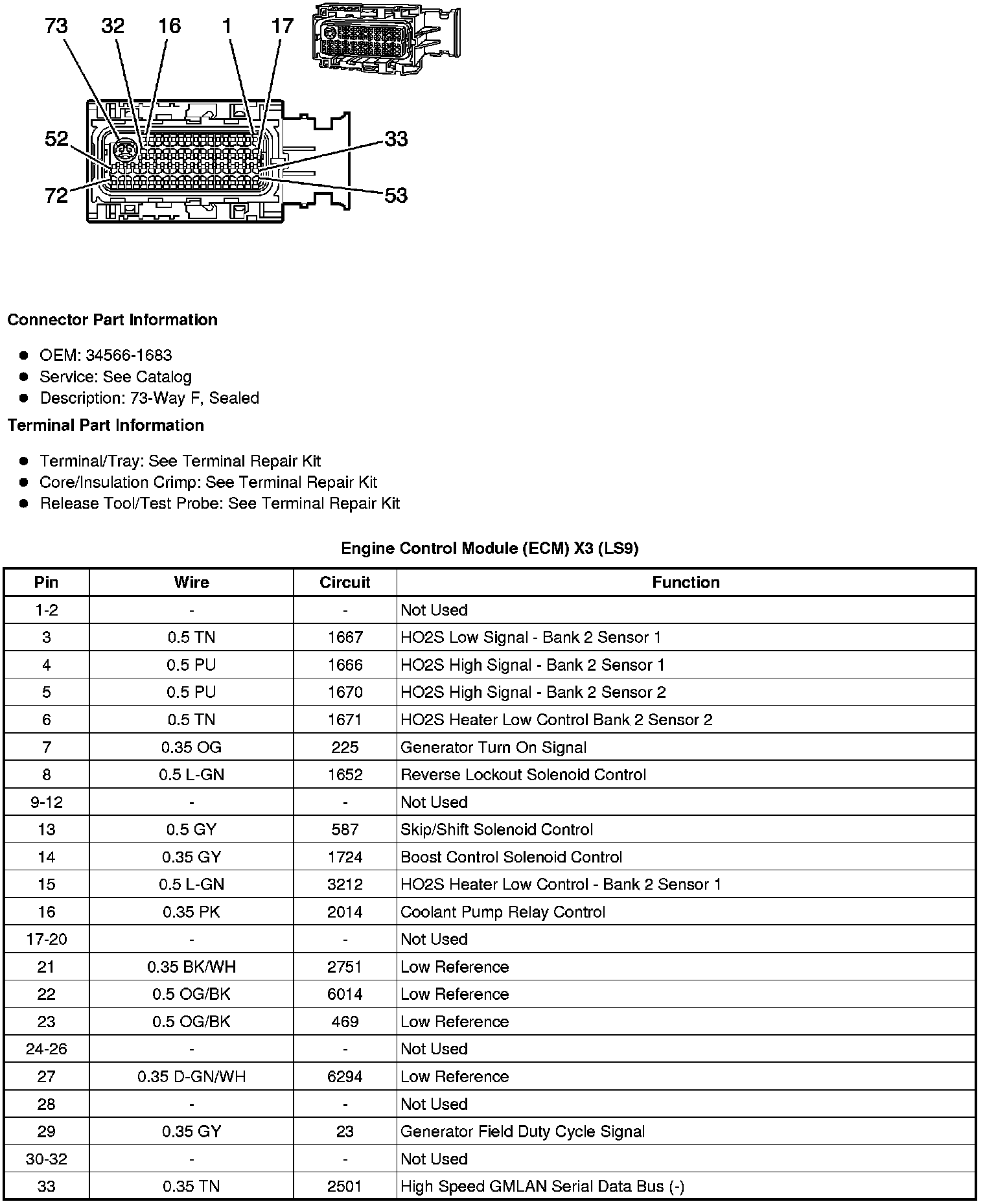

Engine Control Module (ECM) X3 (LS9)
