Intake Manifold Cover Replacement




Intake Manifold Cover Replacement

Removal Procedure




1. Remove the engine oil fill cap and tube.

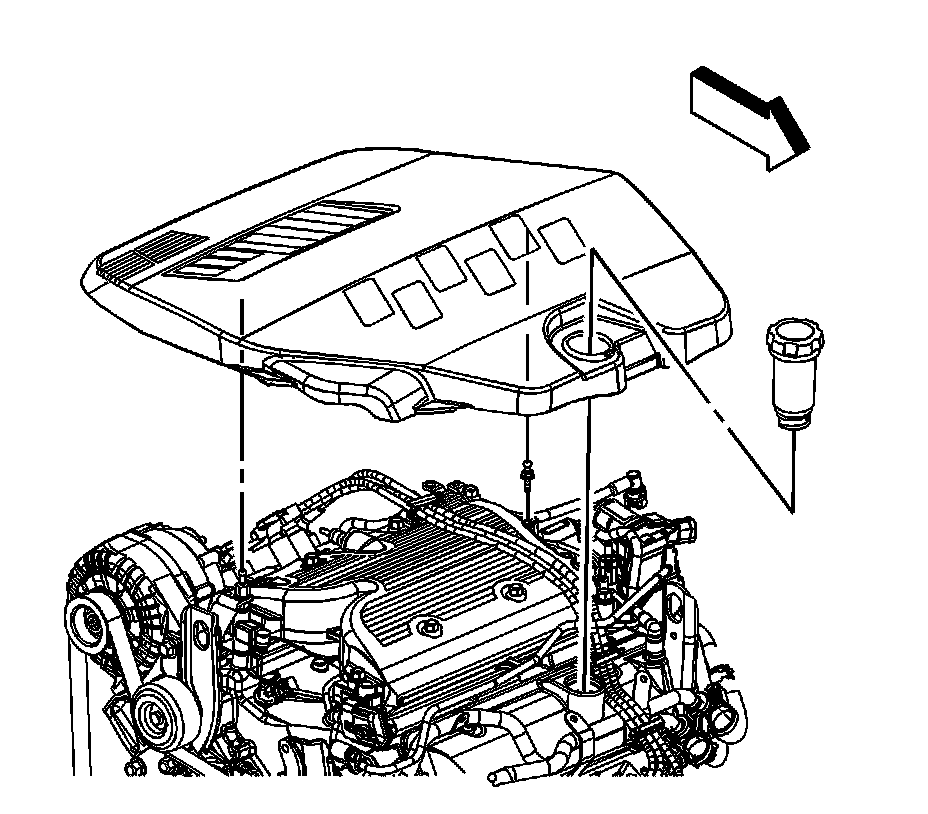

2. If equipped with electric power steering, grasp the cover by the sides and pull up, disengaging the cover from grommets from the ball studs.

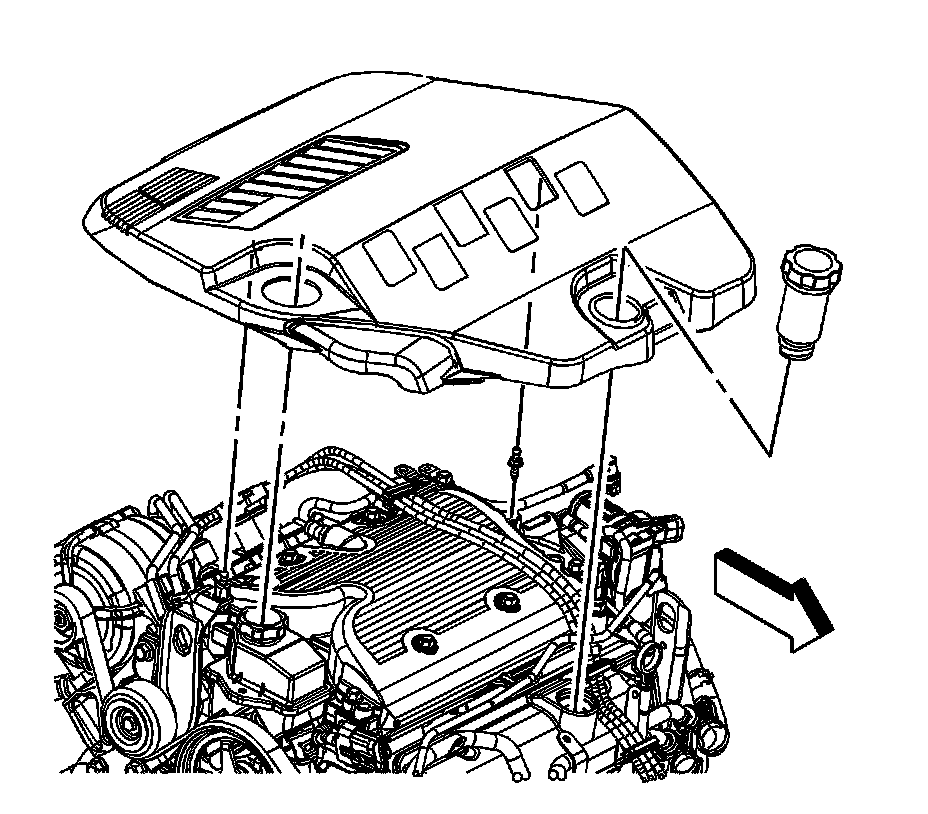

3. If equipped with hydraulic power steering, grasp the cover by the sides and pull up, disengaging the cover from grommets from the ball studs.

Installation Procedure




1. If equipped with hydraulic power steering, place the cover over the ball studs, aligning the cover openings with the power steering reservoir cap and oil fill tube opening.
2. Push down on the cover above the studs in order to engage the cover grommets to the studs.




3. If equipped with electric power steering, place the cover over the ball studs, aligning the cover opening with the oil fill tube opening.
4. Push down on the cover above the studs in order to engage the cover grommets to the studs.
5. Install the engine oil fill tube and cap.
