Frame Brace Replacement

Frame Brace Replacement

Removal Procedure

1.Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

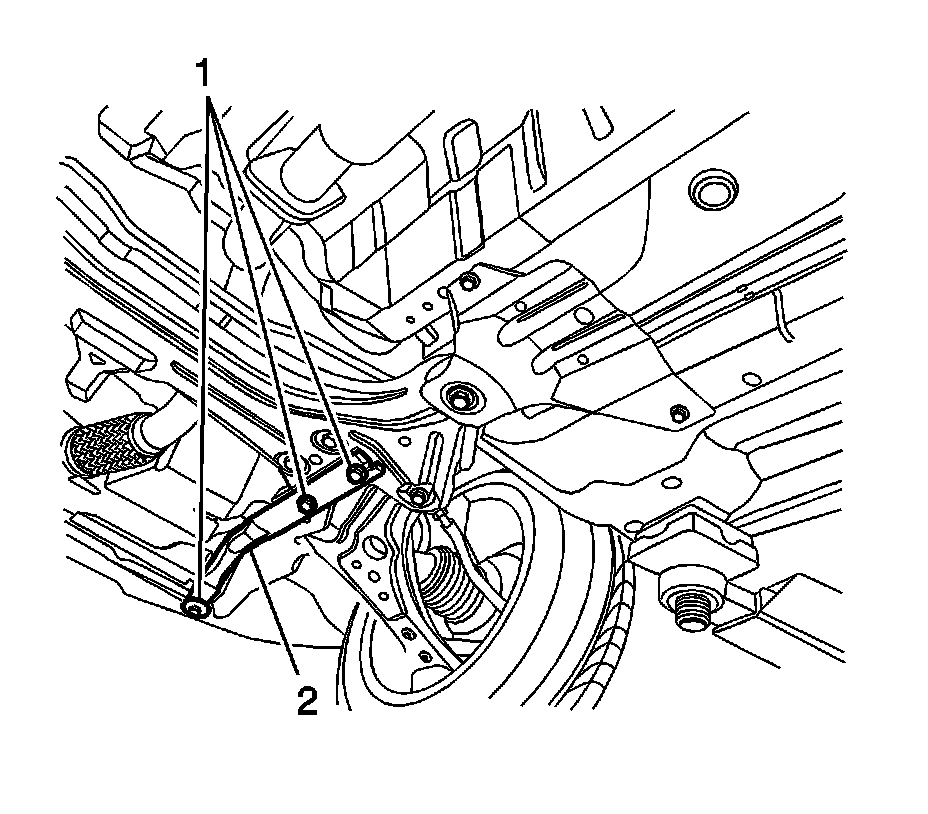

2.Remove the bolts (1) from the frame brace (2).

3.Remove the frame brace (2) from the vehicle.

Installation Procedure

1.Install the frame brace (2) from the vehicle.

Caution:Refer to Fastener Caution .

2.Install the bolts (1) to the frame brace (2) and tighten to100 N �m (74 lb ft).

3.Lower the vehicle.
