Cylinder Head Assembly: Specifications

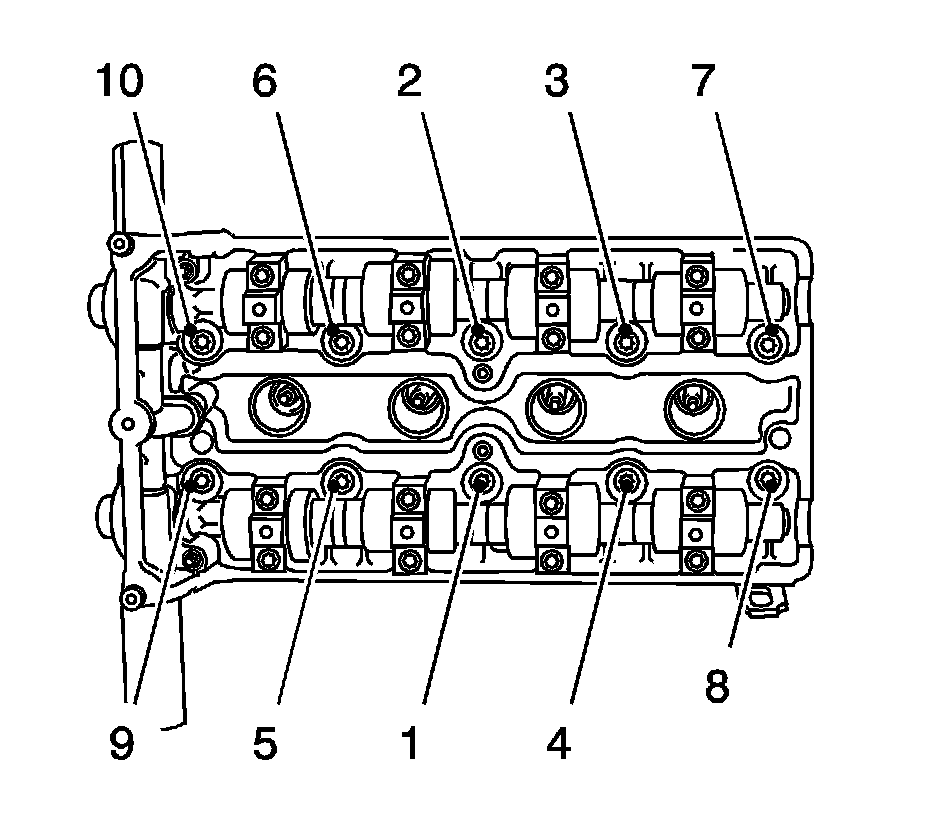

Cylinder Head Bolts

Use new cylinder head bolts

Head Bolts 25 Nm + 60� + 60� + 60� + 10� (18 lb ft + 60� + 60� + 60� + 10�)

Surface Flatness Deformation

Cover/Block 0.02/50-0.025/150 mm (0.0008/1.9685-0.0010/5.9055 in)
Manifolds 0.05 mm (0.002 in)

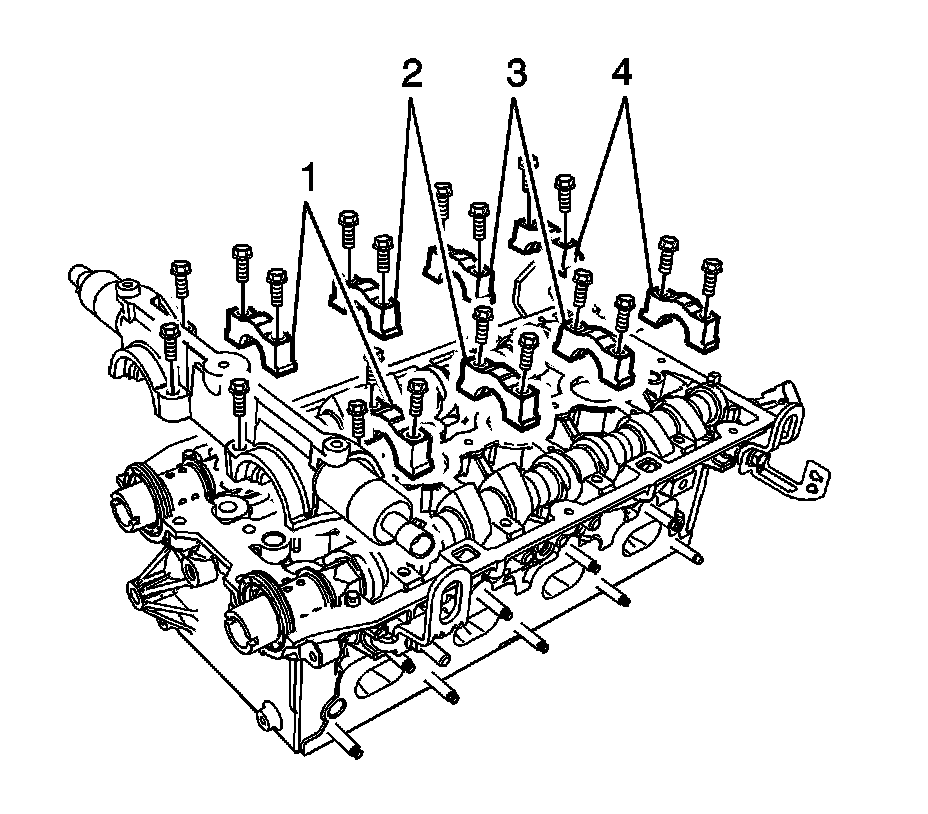

Camshaft Caps 8 Nm (70.8 lb in)

Install the camshaft bearing caps in sequence (2, 3, 1, 4)

Intake Manifold Specifications

Exhaust Manifold Specifications

Camshaft Gear Specifications
