Clutch Rotor and/or Bearing Install (SP10 Compressor)




Clutch Rotor and/or Bearing Install (SP10 Compressor)

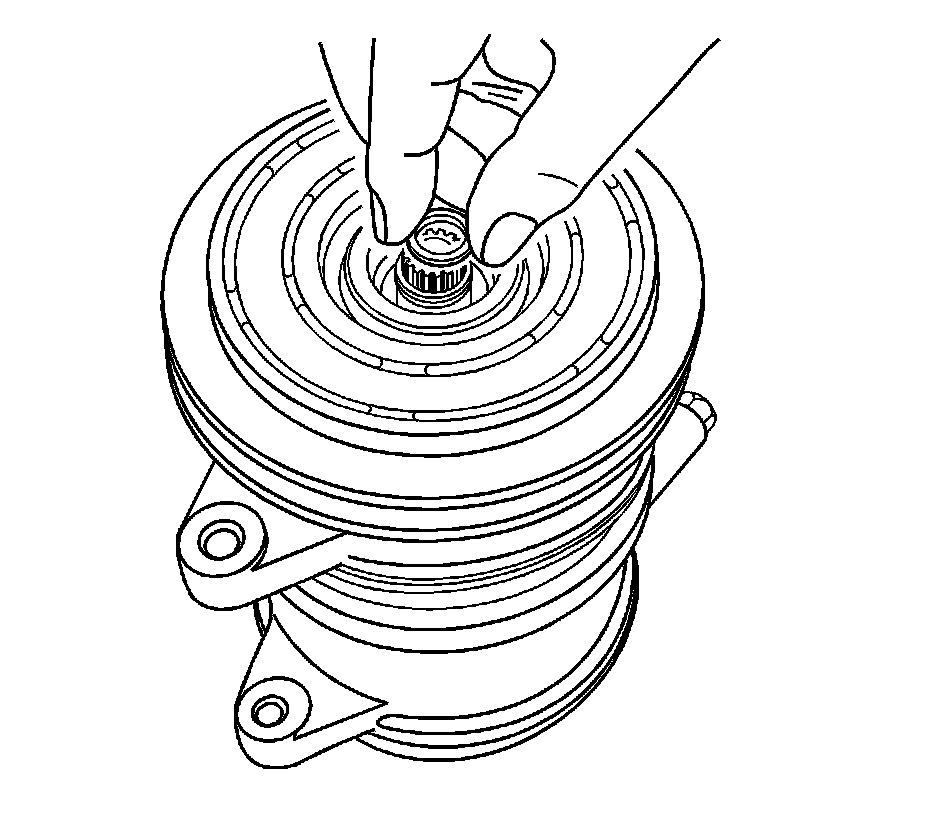

1. Locate the rotor pulley on the front head housing squarely and precisely.
2. Insert the pulley and bearing assembly by gradually increasing the force on the pulley surface.

Important: Ensure pulley is fully seated.

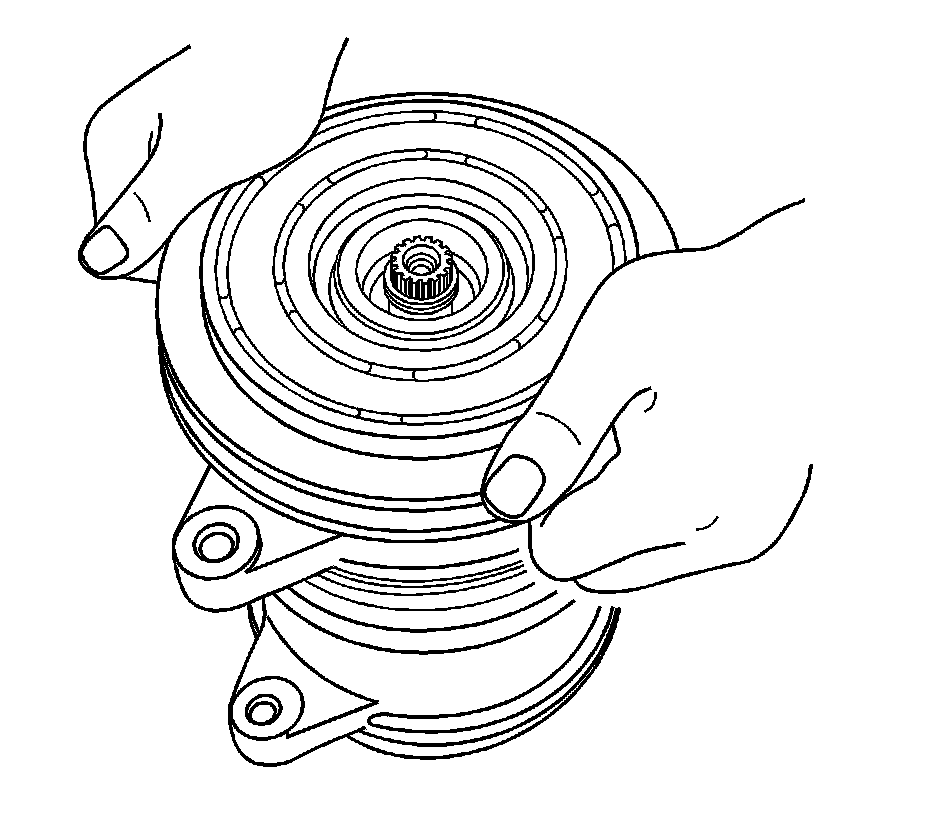

3. Check for proper installation of the pulley by spinning it.





Important: Care must be taken to avoid damage to the bearing seal when assembling.


Important: Sharp edge of the retainer should be placed on its upper side during installation. Upon completion, squeeze the retainer to ensure it is well installed.

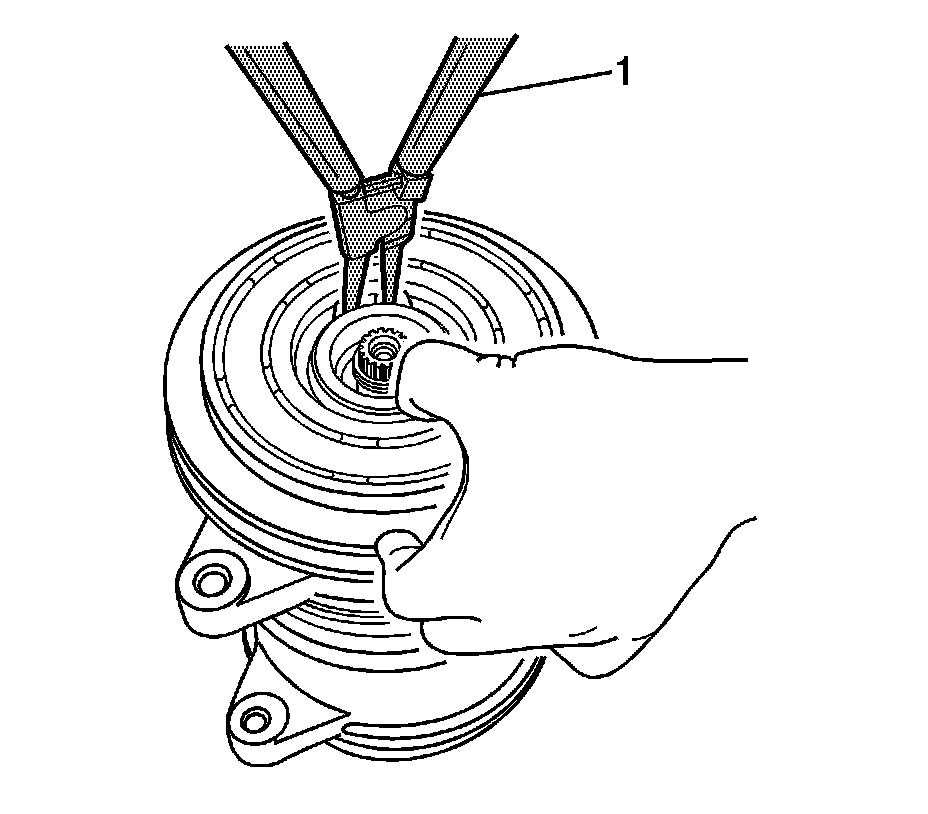

4. Install the retainer ring using the snap ring pliers (1).




5. Place the shim(s) on the shaft shoulder. Determine type and quantity of shim(s) to use to make an air gap of the specified size.

0.3-0.7 mm (0.012-0.028 in)

6. Install the clutch and drive assembly. Refer to Compressor Clutch Plate/Hub Assembly Install (SP10 Compressor) (Compressor Clutch Plate/Hub Assembly Install (SP10 Compressor))Compressor Clutch Plate/Hub Assembly Install (V5 Compressor) (Compressor Clutch Plate/Hub Assembly Install (V5 Compressor)).
