Compass: Service and Repair




Instrument Cluster Replacement

Removal Procedure

Note: Information must be retrieved from the instrument cluster before removing. Refer to Control Module References (Programming and Relearning).




Warning: Refer to Battery Disconnect Warning (Battery Disconnect Warning).

1. Disconnect the negative battery cable.

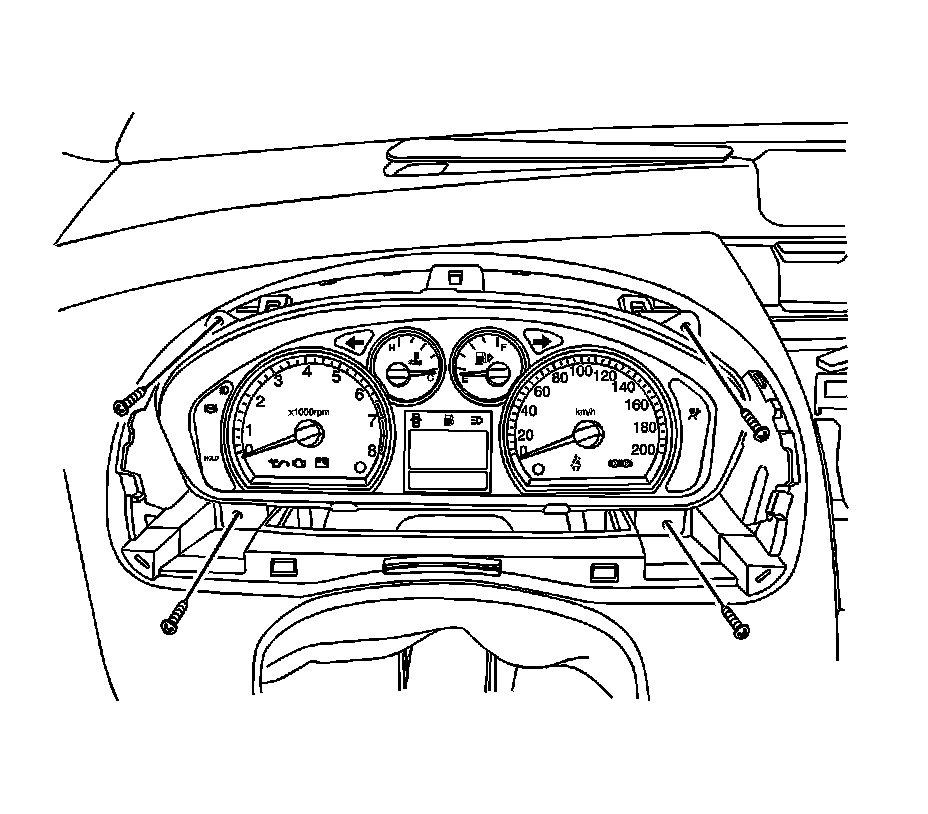

2. Remove the instrument cluster trim panel.

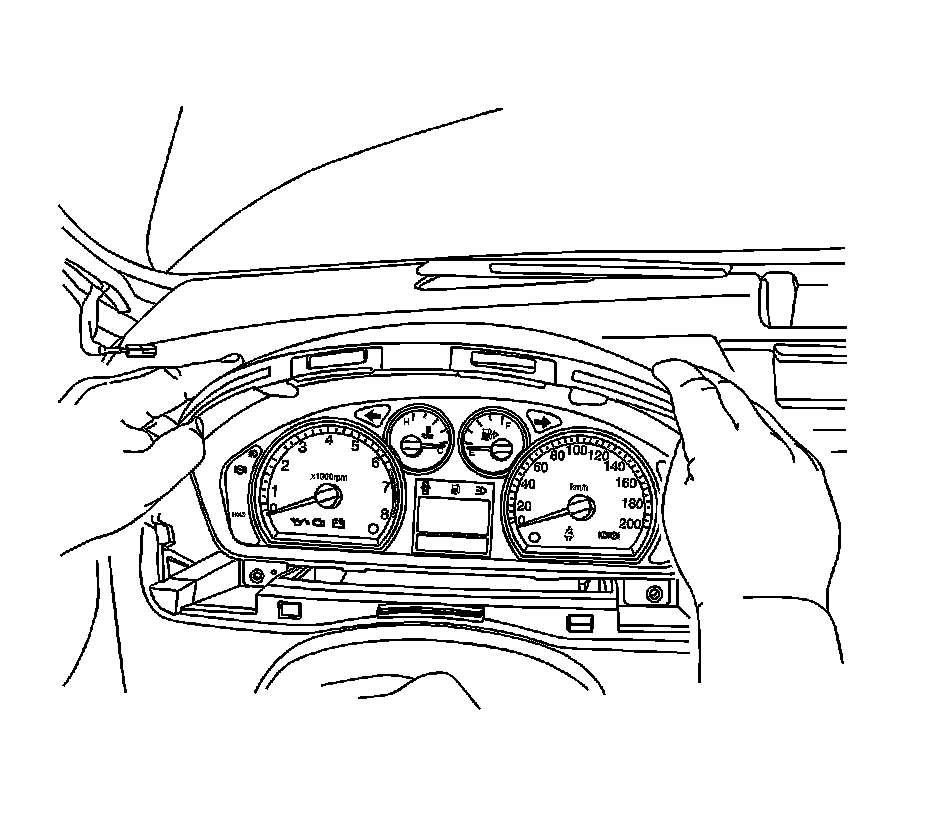

3. Remove the instrument cluster rear trim panel.

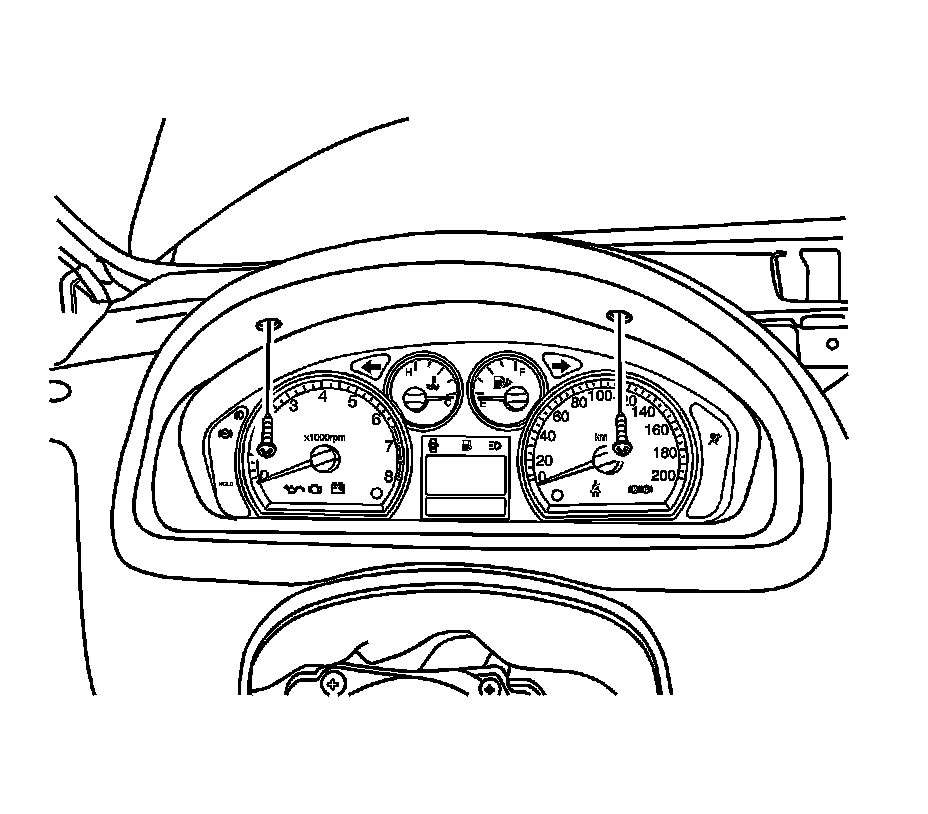

4. Remove the screws and the instrument cluster.
5. Disconnect the electrical connectors.

Installation Procedure





Caution: Refer to Fastener Caution (Fastener Caution).

1. Connect the electrical connectors.
2. Install the instrument cluster with the screws and tighten to 4 Nm (35 lb in).




3. Install the instrument cluster rear trim panel.




4. Install the instrument cluster trim panel.
5. Connect the negative battery cable.
6. Program the instrument cluster. Refer to Control Module References (Programming and Relearning).
