Exterior Lamps




Front of Vehicle/Engine Compartment Component Views

Exterior Lamps

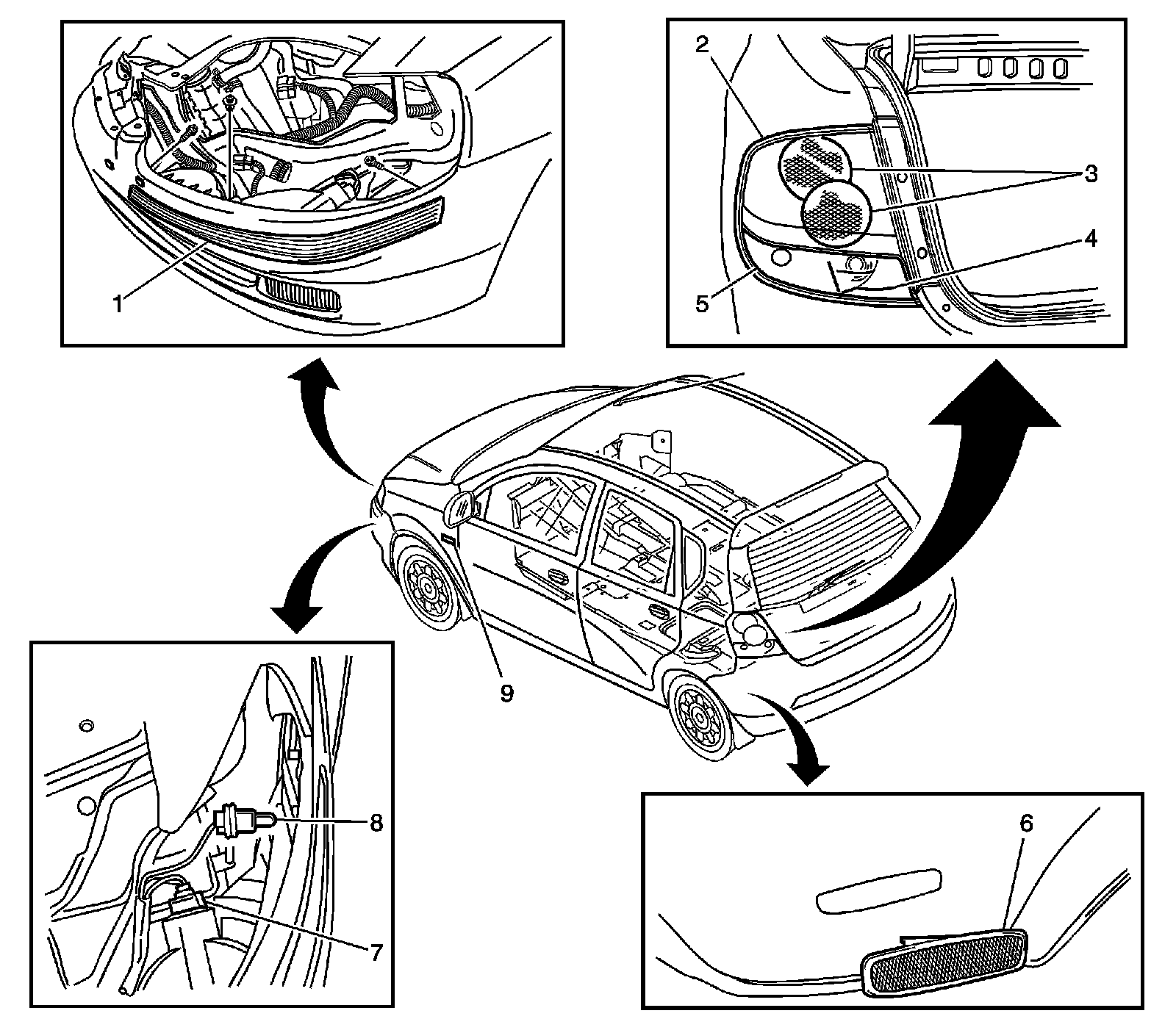

1 - Turn Signal Lamp Assembly - Front (Left Side Shown, Right Side Similar)
2 - Tail Lamp Assembly (Left Side Shown, Right Side Similar)
3 - Tail/Stop Lamps (Left Side Shown, Right Side Similar)
4 - Backup Lamp/Rear Fog Lamp (Left Side Shown, Right Side Similar)
5 - Turn Signal Lamp - Rear (Left Side Shown, Right Side Similar)
6 - Side Marker Lamp - Rear (Left Side Shown, Right Side Similar)
7 - Park/Turn Signal Lamp - Front (Left Side Shown, Right Side Similar)
8 - Side Marker Lamp - Front (Left Side Shown, Right Side Similar)
9 - Turn Signal Repeater Lamp (Left Side Shown, Right Side Similar)
