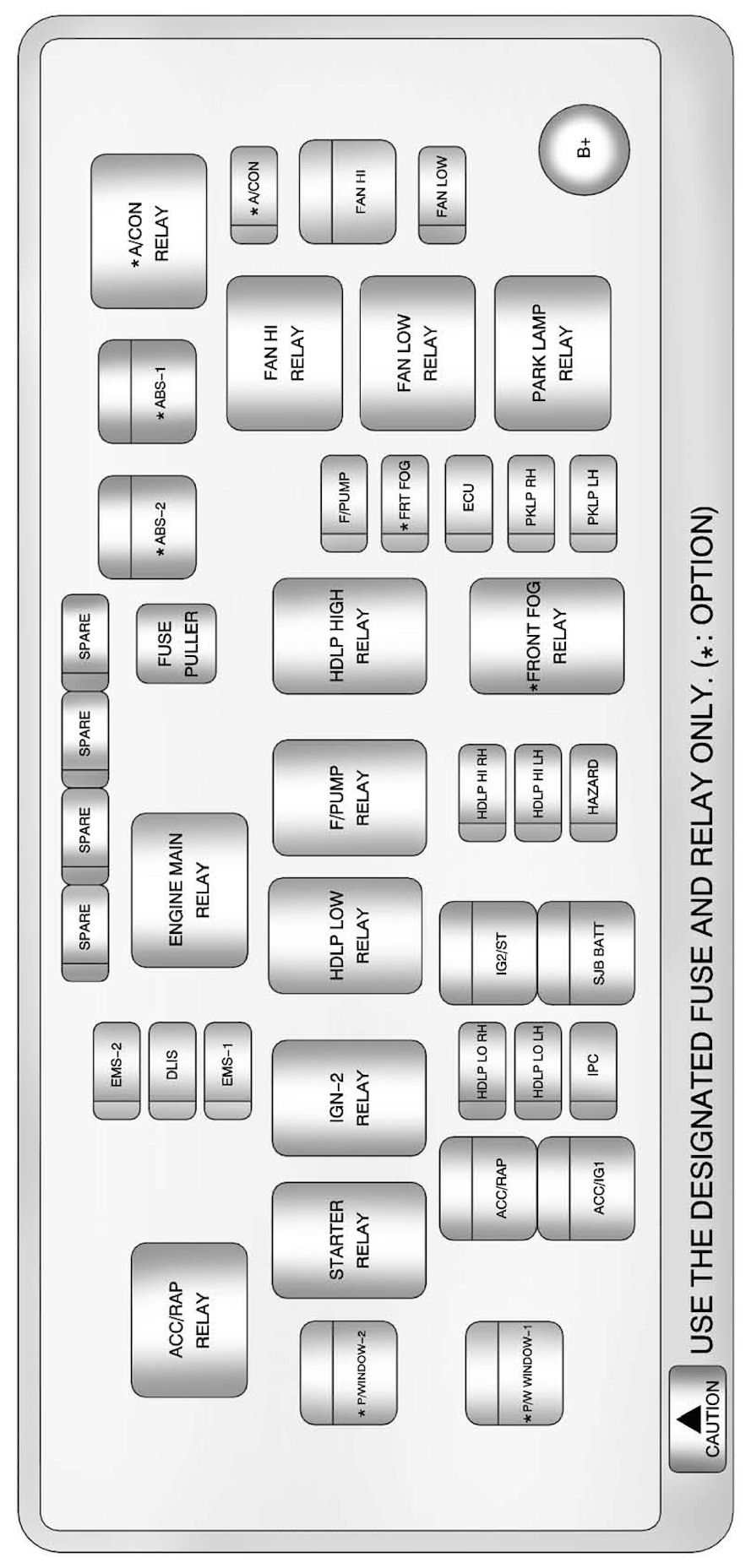

Engine Compartment Fuse Block
Engine Compartment Fuse BlockThe engine compartment fuse block is located on the driver side of the vehicle, near the battery.
Notice: Spilling liquid on any electrical component on the vehicle may damage it. Always keep the covers on any electrical component.
To access the fuses, press in the side flaps to release the cover. To reinstall the cover, push the cover until it is secure.
