Power Distribution Schematic 9




Power Distribution Schematics (WHB)

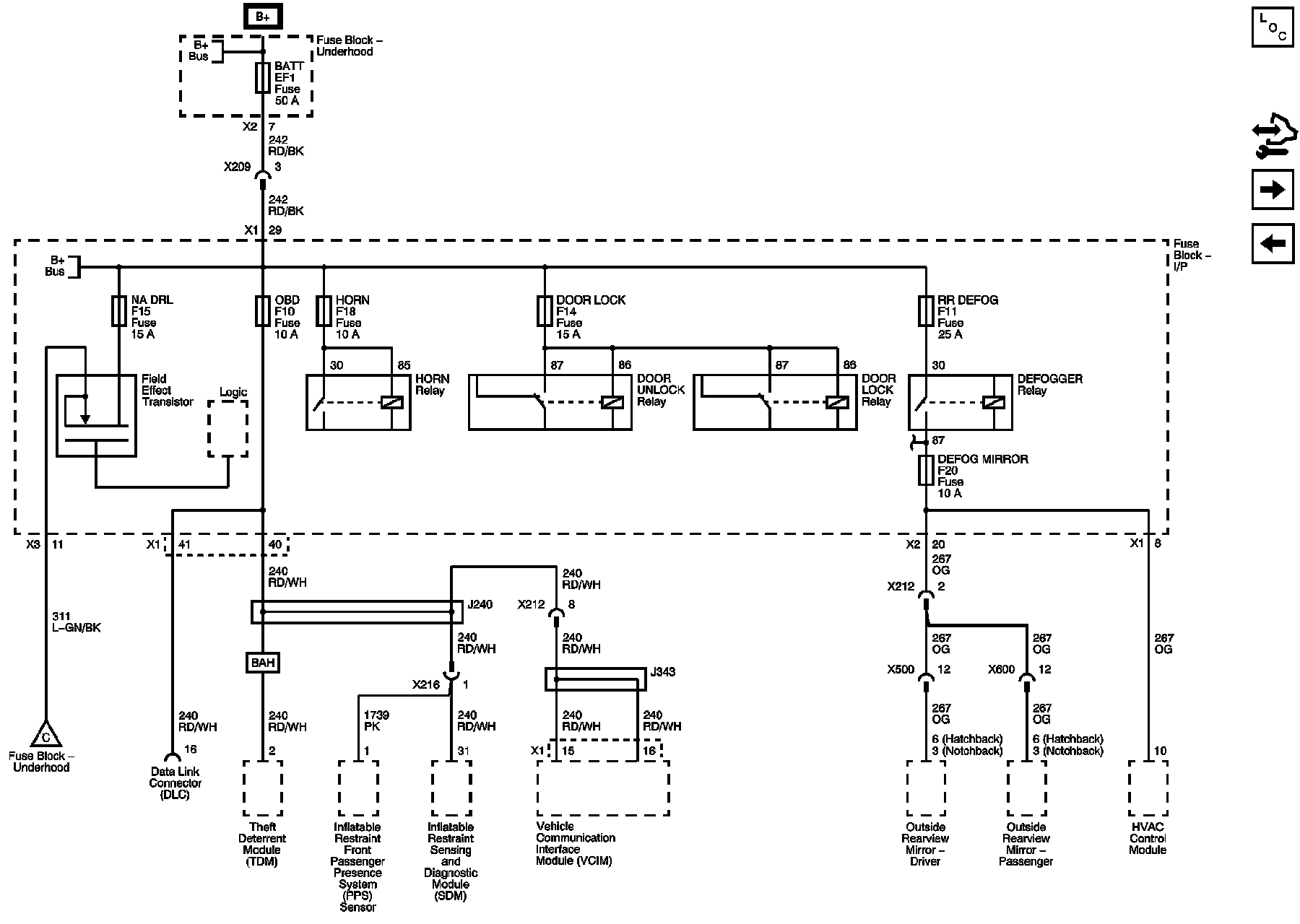

BATT, DEFOG MIRROR, DOOR LOCK, HORN, NA DRL, OBD, and RR DEFOG Fuses





Fuse Block - Underhood: CLUSTER, EMS1, EMS2, SDM, T/SIG, and WIPER Fuses

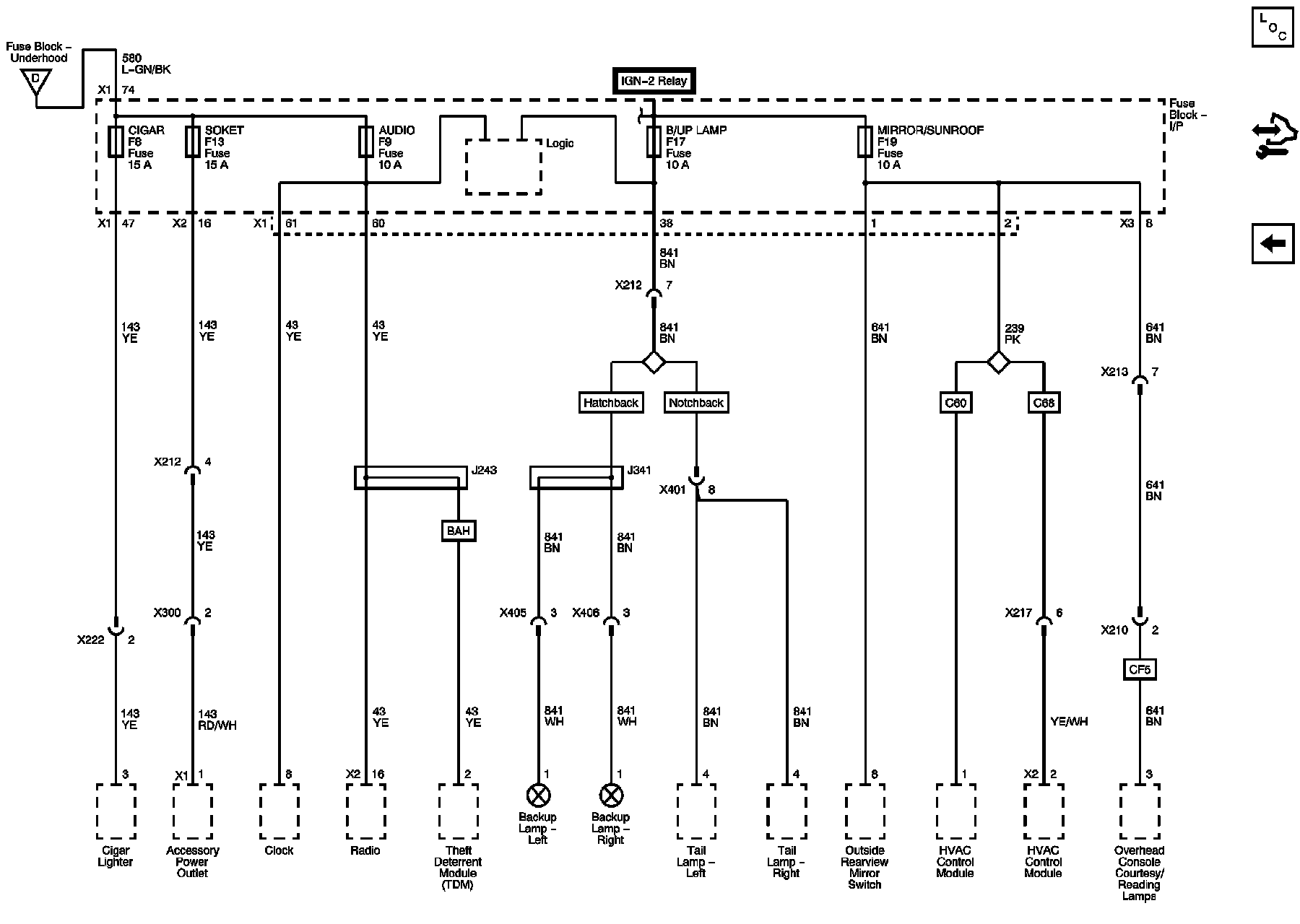

AUDIO, B/UP LAMP, CIGAR, MIRROR/SUNROOF, and SOCKET Fuses
