Door Window Regulator Replacement (Manual Front)




Door Window Regulator Replacement (Manual Front)

Removal Procedure




1. Remove the front door glass. Refer to Front Side Door Window Replacement (Service and Repair).

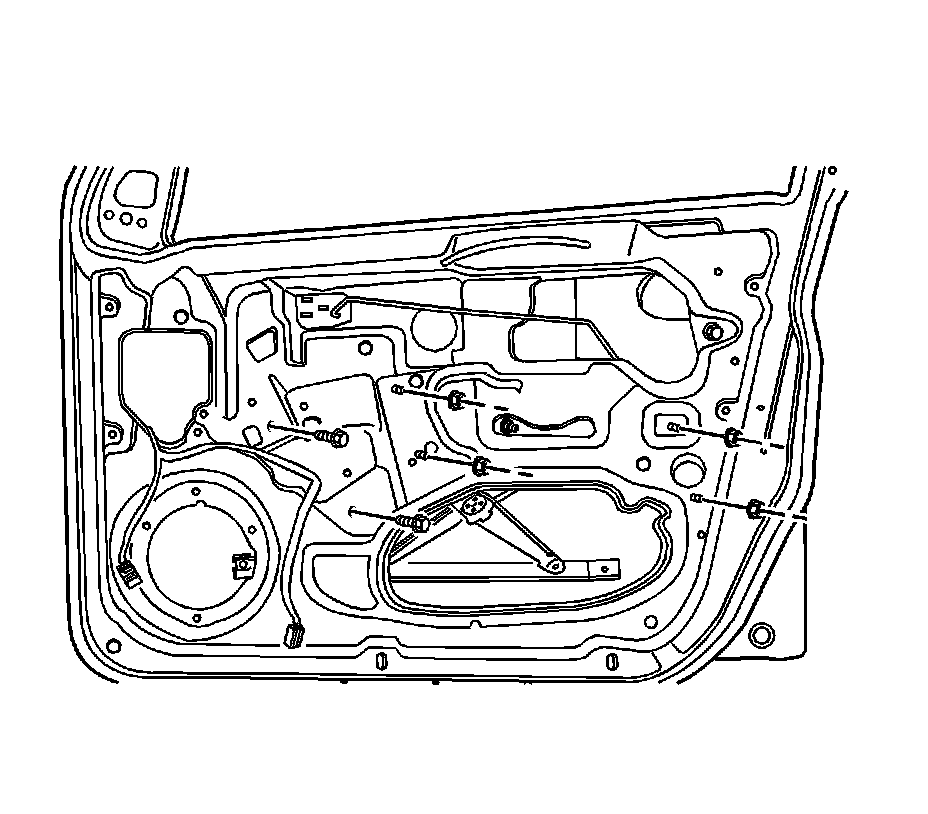

2. Remove the nuts and the window regulator.

Installation Procedure





Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the window regulator and the nuts and tighten to 7 Nm (62 lb in).
2. Install the front door glass. Refer to Front Side Door Window Replacement (Service and Repair).
