Door Window Regulator Replacement (Manual Rear)




Door Window Regulator Replacement (Manual Rear)

Removal Procedure




1. Remove the rear door glass. Refer to Rear Side Door Window Replacement (Service and Repair).

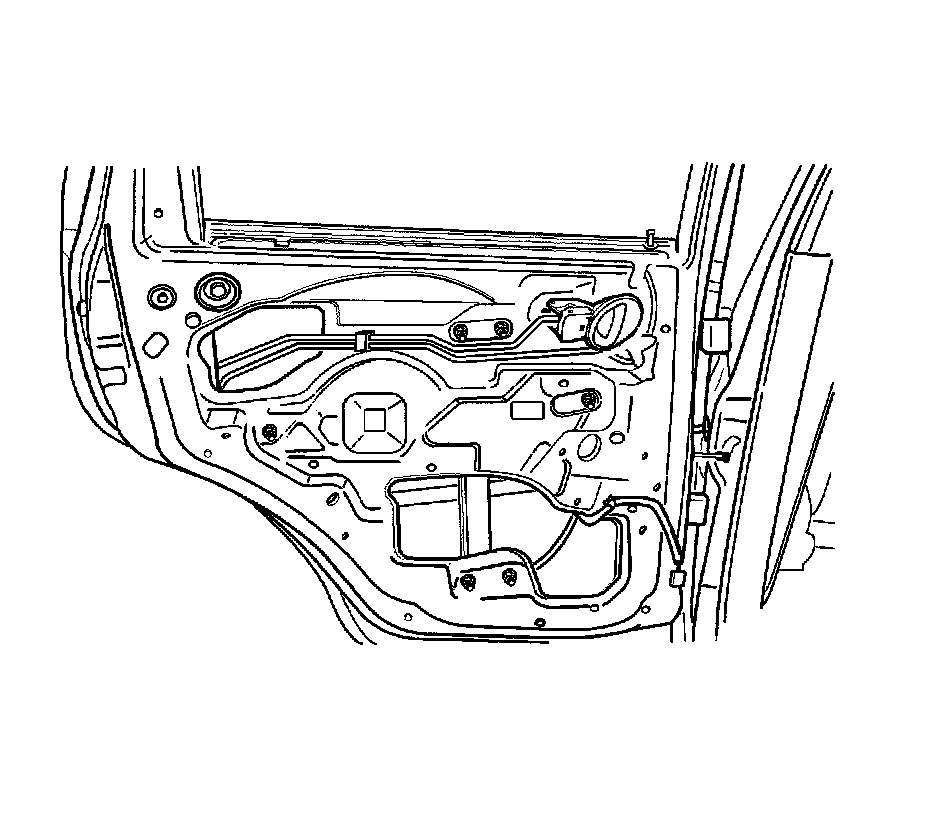

2. Remove the nuts and the window regulator.

Installation Procedure





Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the window regulator with the nuts and tighten to 7 Nm (62 lb in).
2. Install the rear door glass. Refer to Rear Side Door Window Replacement (Service and Repair).
