95. Throttle Body Assembly Installation

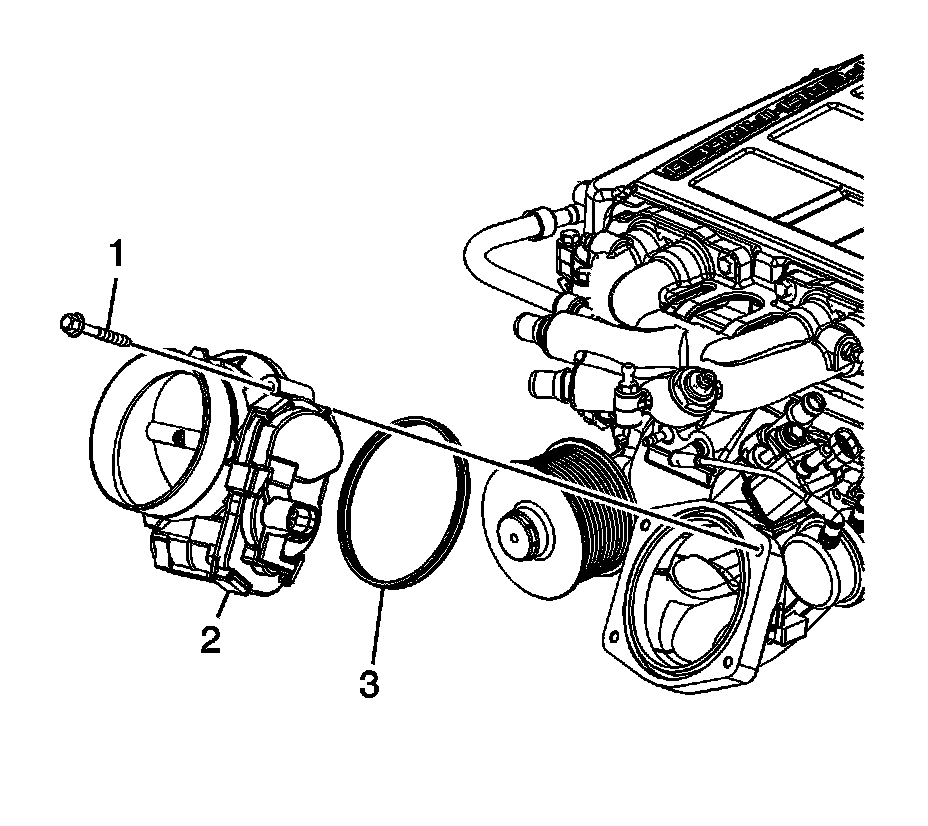

Throttle Body Assembly Installation (6.2L LS9) Note: DO NOT use the throttle body gasket again. Install a NEW gasket during assembly.
1.
Install the throttle body gasket (3) to the supercharger.
Caution: Refer to Fastener Caution (
Fastener Caution).
2.
Install the throttle body (2) and bolts (1). Tighten the throttle body bolts to
10 Nm (89 lb in).
