Entertainment Components




Passenger Compartment/Roof Component Views

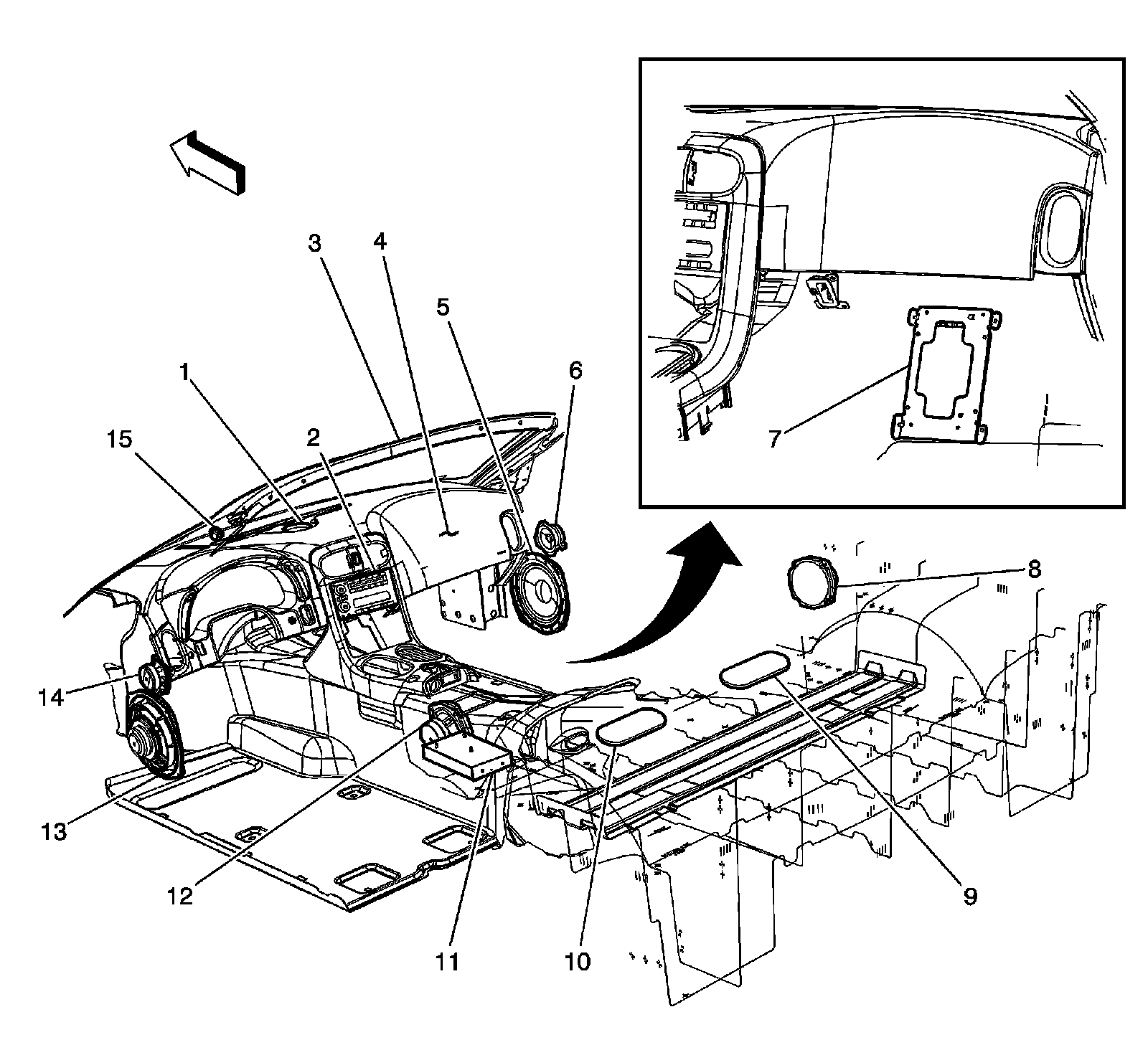

Entertainment Components




1 - Speaker - Center I/P
2 - Radio
3 - Windshield Frame
4 - Vehicle Communication Interface Module (VCIM) (UE1)
5 - Speaker - Right Subwoofer
6 - Speaker - Right Front
7 - Audio Amplifier
8 - Speaker - Right Rear (without C05/CM7)
9 - Speaker - Right Rear (C05/CM7)
10 - Speaker - Left Rear (C05/CM7)
11 - Digital Radio Receiver (except C05/CM7 with U2K)
12 - Speaker - Left Rear (without C05/CM7)
13 - Speaker - Left Subwoofer
14 - Speaker - Left Front
15 - Cellular Telephone Microphone (UE1)/Voice Recognition Microphone (without UE1)
