Rear Camber Adjustment

Rear Camber Adjustment

Special Tools

EN-45059 - Angle Meter

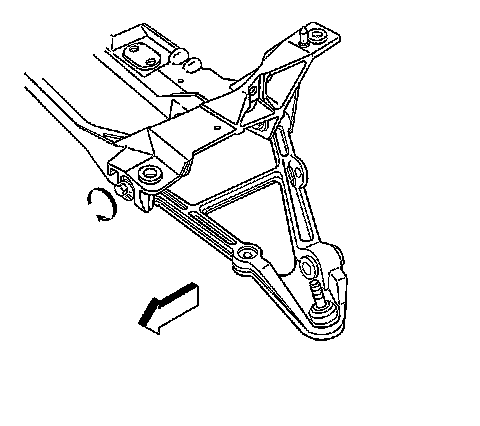

1. Loosen the lower control arm cam bolt nuts.
2. Rotate the cam bolts to the required camber specification setting. Refer to Wheel Alignment Specifications (Specifications).

Caution: Refer to Fastener Caution (Fastener Caution).

Note: Maintain the camber setting while tightening the cam bolt nuts.

3. Tighten the rear lower control arm (front) nut to 170 Nm (125 lb ft).
4. Using the EN-45059 - meter and a torque wrench, tighten the nuts to:

* First Pass: 60 Nm (44 lb ft)
* Final Pass: plus 60 degrees

Note: Check the toe setting AFTER changing camber or caster.

5. Check the camber setting after tightening.
Adjust the camber setting if necessary.
