Connector Views

Component Connector End Views

Rear Window Defogger Grid X1 (CO5 or CM7)

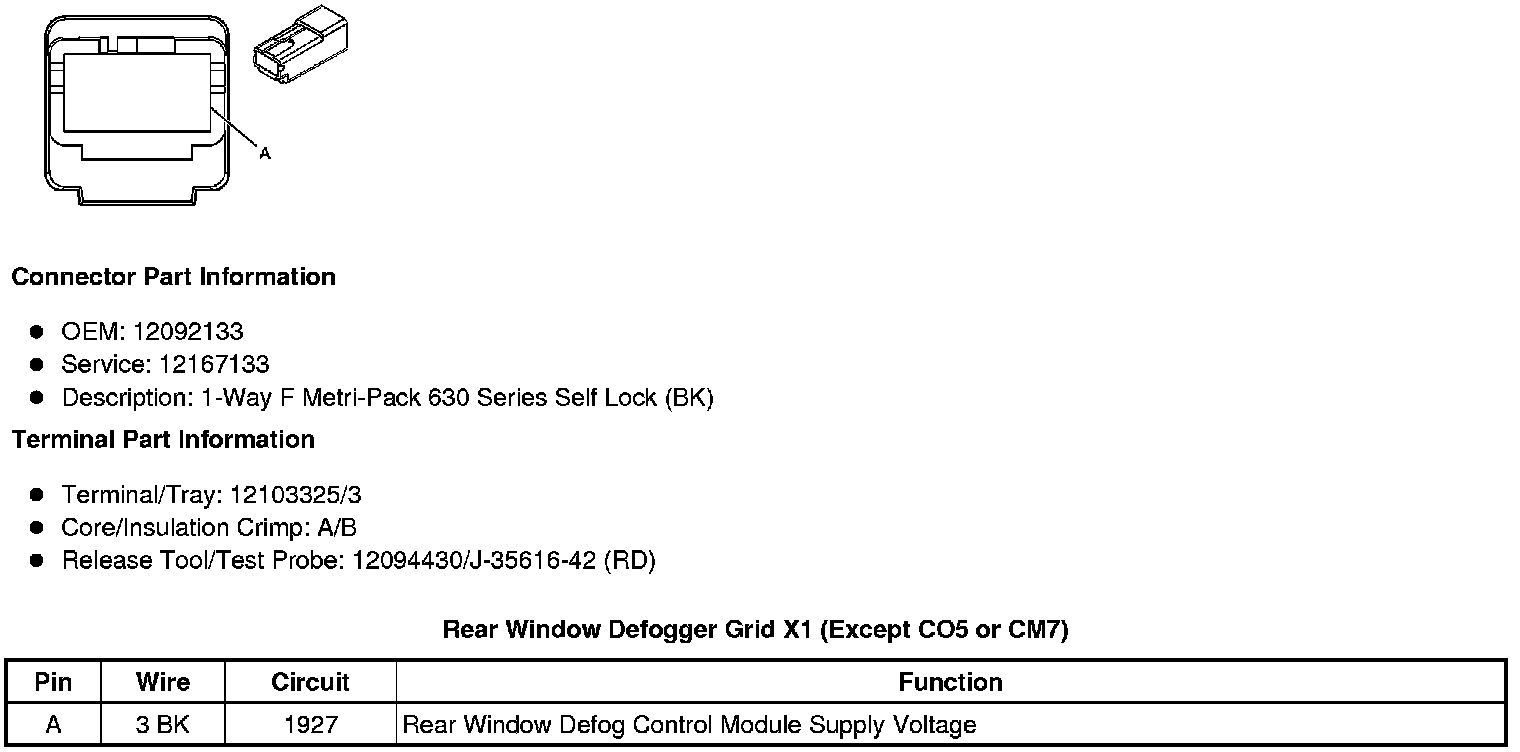

Rear Window Defogger Grid X1 (Except CO5 or CM7)

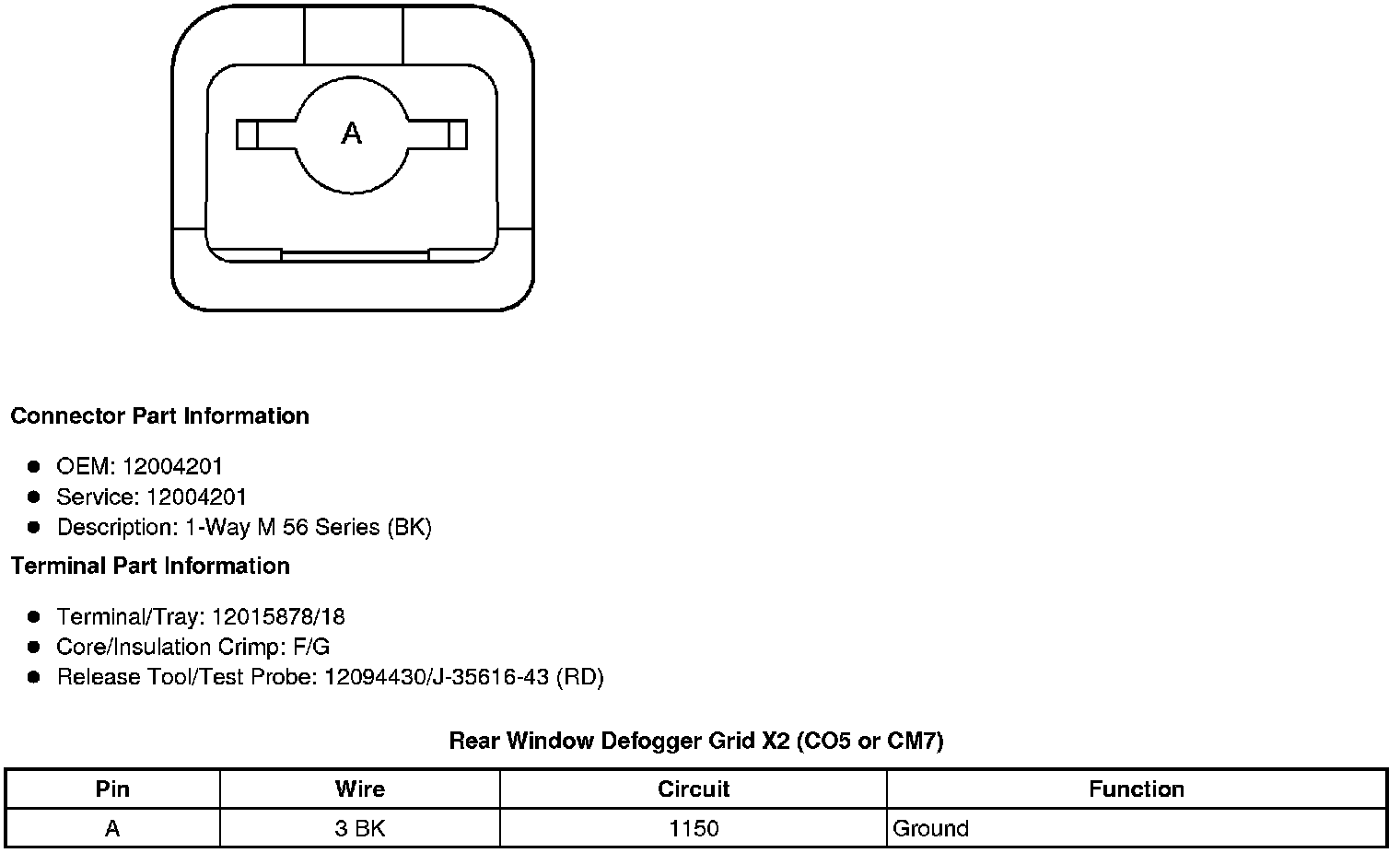

Rear Window Defogger Grid X2 (CO5 or CM7)

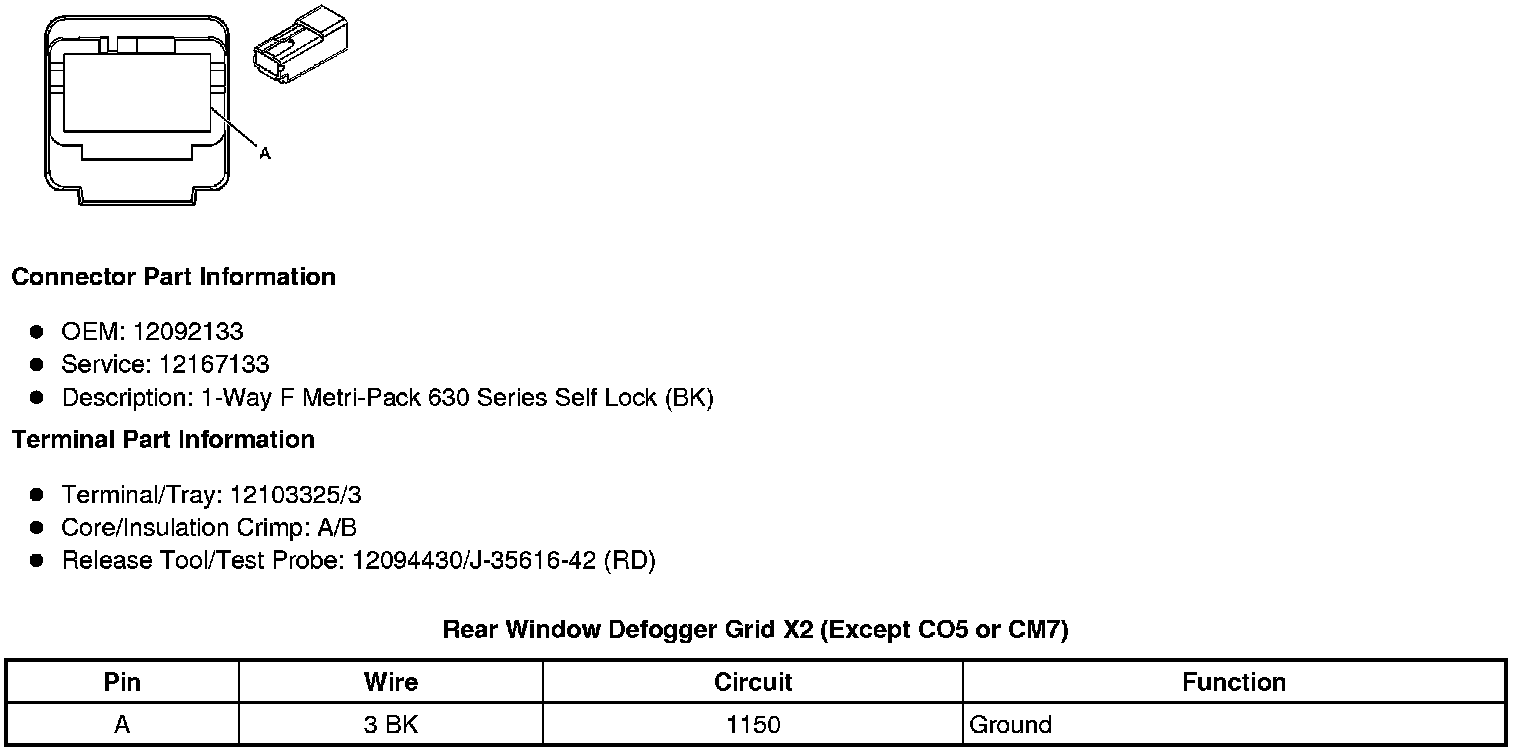

Rear Window Defogger Grid X2 (Except CO5 or CM7)
