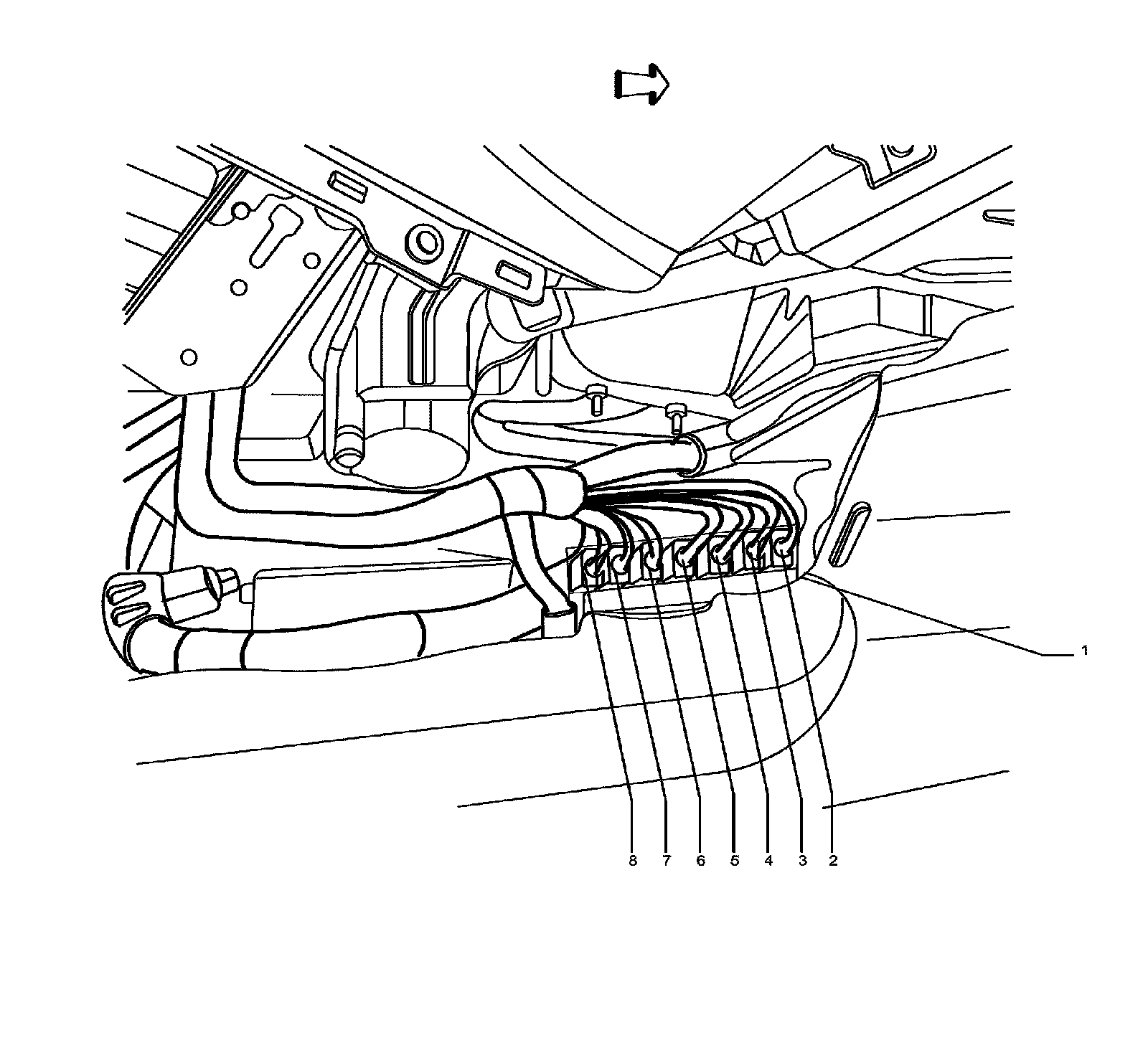

Behind the Center of the I/P Components 1 of 4
Instrument Panel/Center Console Component ViewsBehind the Center of the I/P Components 1 of 41 - K9 Body Control Module
2 - X7 Body Control Module X7
3 - X6 Body Control Module X6
4 - X5 Body Control Module X5
5 - X4 Body Control Module X4
6 - X3 Body Control Module X3
7 - X2 Body Control Module X2
8 - X1 Body Control Module X1
