Wiper Arm: Adjustments

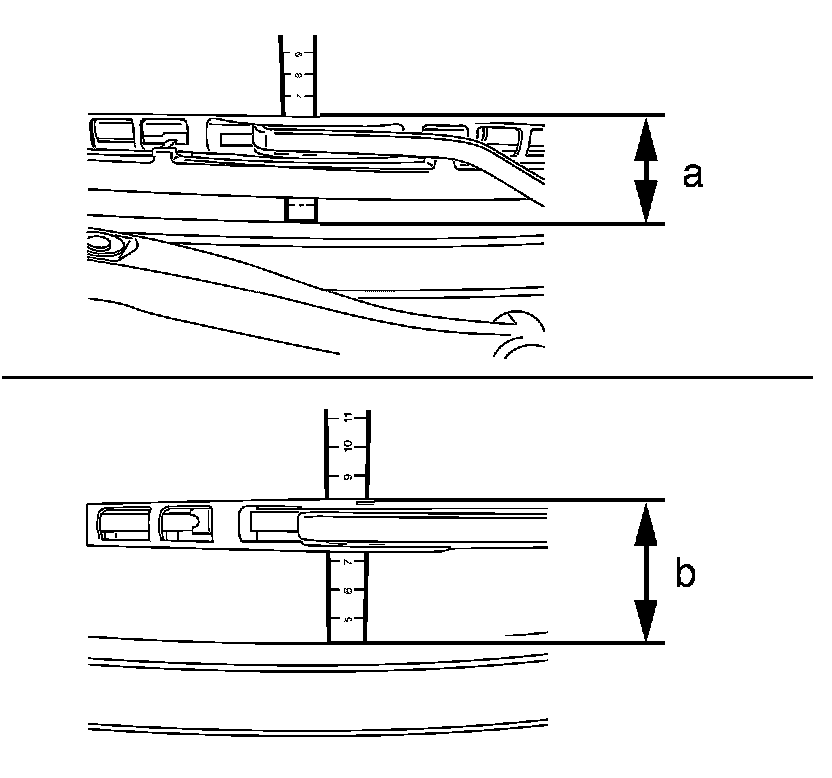

Windshield Wiper Arm AdjustmentMeasuring point for windscreen
wiper arms:
Upper edge of water deflector (rubber lip) to
wiper arm attachment point.
Note: Position the
wiper arm to the basic setting.
1.
Driver side (a) approximately 6.5 cm (2.6 in)
2.
Passenger side (b) approximately 8.5 cm (3.3 in).
