Front Wheelhouse Liner Replacement (ZL1)
Front Wheelhouse Liner Replacement (ZL1) 2.Remove the front
bumper valance panel. Refer to Front Bumper Valance Panel Replacement .

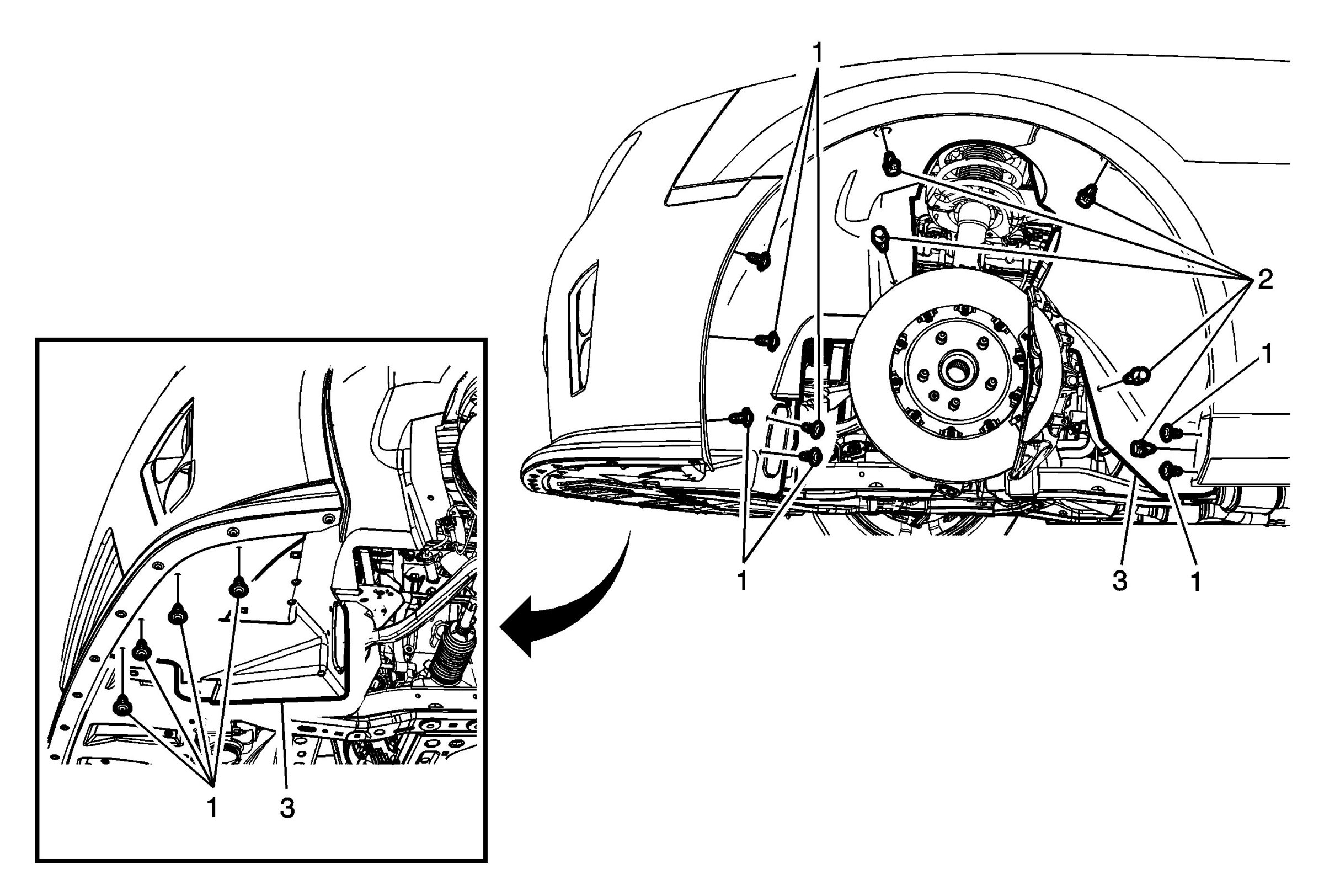

1Front Wheelhouse Liner Screw (Qty: 12)
Caution:Refer to Fastener Caution .
Tighten 3 N �m (27 lb in)
2Front Wheelhouse Liner Push-In Retainer (Qty: 5)
3Front Wheelhouse Liner
